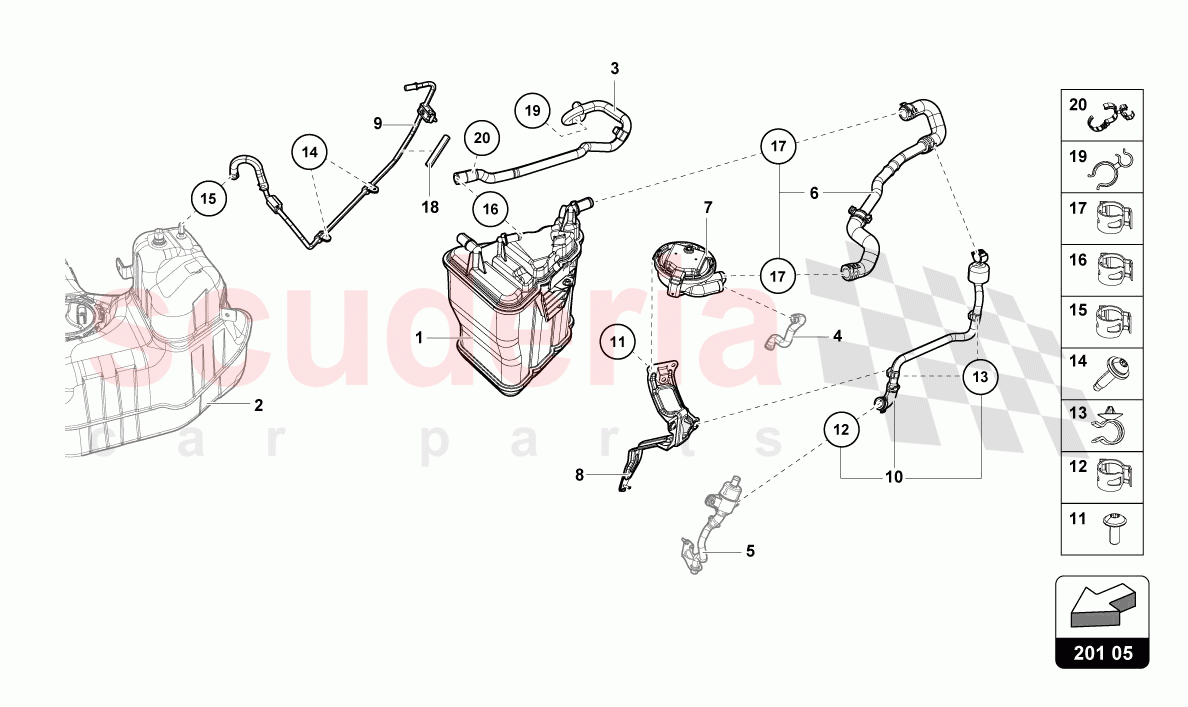

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	4S0201797B	ACTIVATED CHARCOAL CONTAINER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4S0133352B	CONNECTING HOSE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4S0201384E	HOSE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8K0906253N	PRESSURE SWITCH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4S0201369E	BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4S0201215F	FUEL LINE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4S0201411D	VENTILATION PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N90985501	COUNTERSUNK MULTI-POINT SOCKET HEAD BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N10649101	HOSE BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4B0422379A	SPRING BAND CLAMP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N90939303	HEXAGON SOCKET OVAL HEAD BOLT (COMBI), SELF-LOCKING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N90986501	SPRING BAND CLAMP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N01508210	HEXAGON COLLAR NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N90686901	SPRING BAND CLAMP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	59131694AQ	RETAINER FOR FUEL LINE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N10683001	DOUBLE HOSE HOLDER	Enquire	To Order

View All

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	4S0201797B	ACTIVATED CHARCOAL CONTAINER	4S0201797B ACTIVATED CHARCOAL CONTAINER	-	1	Enquire
3	4S0133352B	CONNECTING HOSE	4S0133352B CONNECTING HOSE	-	1	Enquire
6	4S0201384E	HOSE	4S0201384E HOSE	-	1	Enquire
7	8K0906253N	PRESSURE SWITCH	8K0906253N PRESSURE SWITCH	-	1	Enquire
8	4S0201369E	BRACKET	4S0201369E BRACKET	-	1	Enquire
9	4S0201215F	FUEL LINE	4S0201215F FUEL LINE 5-LAYER-FEED	-	1	Enquire
10	4S0201411D	VENTILATION PIPE	4S0201411D VENTILATION PIPE	-	1	Enquire
11	N90985501	COUNTERSUNK MULTI-POINT SOCKET HEAD BOLT	N90985501 COUNTERSUNK MULTI-POINT SOCKET HEAD BOLT 5X12	-	3	Enquire
12	N10649101	HOSE BRACKET	N10649101 HOSE BRACKET 17 -5 N106491	-	1	Enquire
13	4B0422379A	SPRING BAND CLAMP	4B0422379A SPRING BAND CLAMP 25X12	-	2	Enquire
14	N90939303	HEXAGON SOCKET OVAL HEAD BOLT (COMBI), SELF-LOCKING	N90939303 HEXAGON SOCKET OVAL HEAD BOLT (COMBI), SELF-LOCKING M5X20	-	2	Enquire
15	N90986501	SPRING BAND CLAMP	N90986501 SPRING BAND CLAMP 14 -5X12	-	8	Enquire
16	N01508210	HEXAGON COLLAR NUT	N01508210 HEXAGON COLLAR NUT M6	-	3	Enquire
17	N90686901	SPRING BAND CLAMP	N90686901 SPRING BAND CLAMP 23X12	-	3	Enquire
19	59131694AQ	RETAINER FOR FUEL LINE	59131694AQ RETAINER FOR FUEL LINE 14/24	-	1	Enquire
20	N10683001	DOUBLE HOSE HOLDER	N10683001 DOUBLE HOSE HOLDER 14X35	-	1	Enquire
