Name: BRAKE AND ACCEL. LEVER MECH.
Rating: 5.0 (1 reviews)

Find Your Part

BRAKE AND ACCEL. LEVER MECH. of Lamborghini Lamborghini Huracan Evo Spyder 2WD

View All

Lamborghini Huracan Evo Spyder 2WD - BRAKE AND ACCEL. LEVER MECH. (721.01.00)

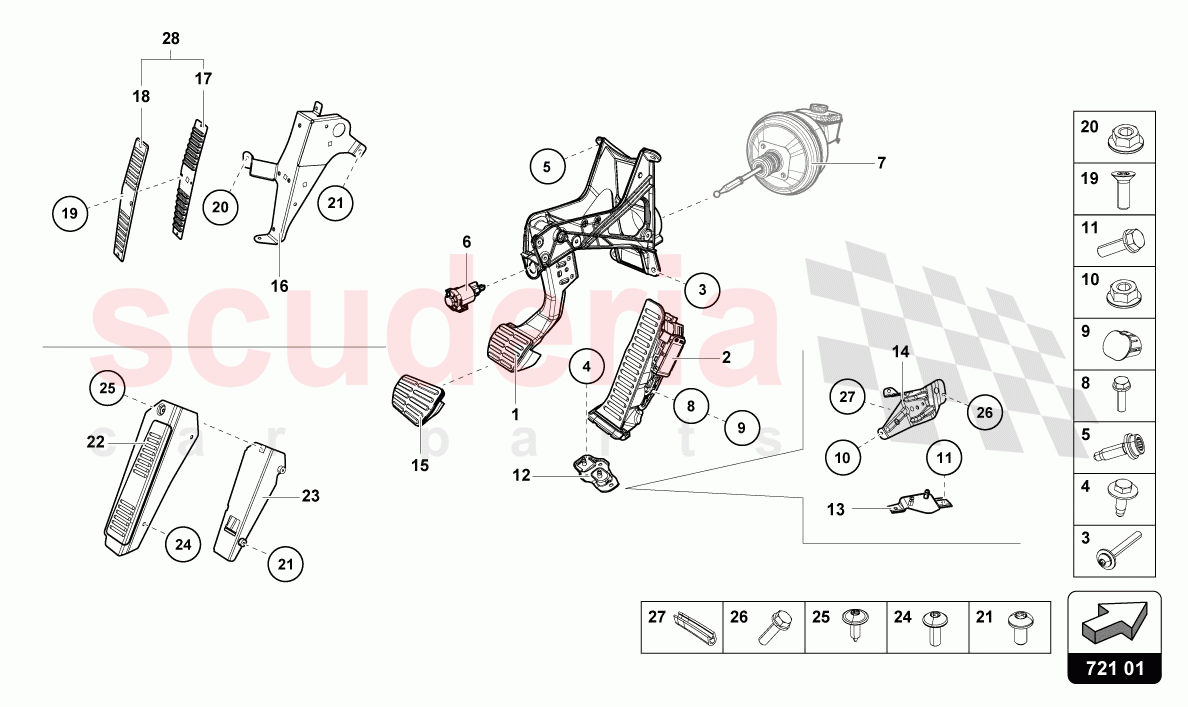

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	4S1723031L	BRAKE PEDAL	Enquire	To Order
	4S2723031E	BRAKE PEDAL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1K1723503AK	ACCELERATOR PEDAL WITH ELECTRONIC MODULE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N10483102	HEX SOCKET HEAD BOLT (COMBI)	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N10752901	FILLISTER HD. BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N10719301	SOCKET HEAD COLLARED BOLT WITH INNER MULTIPOINT HEAD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4F0945459B	BRAKE LIGHT SENSOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N10653301	HEX COLLARED BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1K0721989	CAP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N01508210	HEXAGON COLLAR NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N10752901	FILLISTER HD. BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4S1721188D	BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4S0723131	CAP FOR FOOT BRAKE PEDAL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4T1864775E	BRACKET FOR FOOTREST	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	WHT006119	HEX SOCKET COUNTERSUNK BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N90106304	HEXAGON COLLAR NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4T1864417A	FOOT REST	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	4S1723031L	BRAKE PEDAL	4S1723031L BRAKE PEDAL LHD	-	1	Enquire
1	4S2723031E	BRAKE PEDAL	4S2723031E BRAKE PEDAL RHD	-	1	Enquire
2	1K1723503AK	ACCELERATOR PEDAL WITH ELECTRONIC MODULE	1K1723503AK ACCELERATOR PEDAL WITH ELECTRONIC MODULE	-	1	Enquire
3	N10483102	HEX SOCKET HEAD BOLT (COMBI)	N10483102 HEX SOCKET HEAD BOLT (COMBI) M6X50	-	2	Enquire
4	N10752901	FILLISTER HD. BOLT	N10752901 FILLISTER HD. BOLT M5X18	-	5	Enquire
5	N10719301	SOCKET HEAD COLLARED BOLT WITH INNER MULTIPOINT HEAD	N10719301 SOCKET HEAD COLLARED BOLT WITH INNER MULTIPOINT HEAD M8X28	-	1	Enquire
6	4F0945459B	BRAKE LIGHT SENSOR	4F0945459B BRAKE LIGHT SENSOR 4 PIN	-	1	Enquire
8	N10653301	HEX COLLARED BOLT	N10653301 HEX COLLARED BOLT M6X20	-	6	Enquire
9	1K0721989	CAP	1K0721989 CAP	-	1	Enquire
10	N01508210	HEXAGON COLLAR NUT	N01508210 HEXAGON COLLAR NUT M6	-	1	Enquire
11	N10752901	FILLISTER HD. BOLT	N10752901 FILLISTER HD. BOLT M5X18	-	4	Enquire
12	4S1721188D	BRACKET	4S1721188D BRACKET LHD	-	1	Enquire
13	4S2721188D	BRACKET	4S2721188D BRACKET RHD	-	1	Enquire
14	4S2721187C	BRACKET	4S2721187C BRACKET RHD	-	1	Enquire
15	4S0723131	CAP FOR FOOT BRAKE PEDAL	4S0723131 CAP FOR FOOT BRAKE PEDAL	-	4	Enquire
16	4T1864775E	BRACKET FOR FOOTREST	4T1864775E BRACKET FOR FOOTREST LHD	-	1	Enquire
19	WHT006119	HEX SOCKET COUNTERSUNK BOLT	WHT006119 HEX SOCKET COUNTERSUNK BOLT M5X15	-	1	Enquire
20	N90106304	HEXAGON COLLAR NUT	N90106304 HEXAGON COLLAR NUT M6	-	1	Enquire
21	N91096701	OVAL HEXAGON SOCKET HEAD BOLT	N91096701 OVAL HEXAGON SOCKET HEAD BOLT M6X16 - RHD	-	1	Enquire
22	4T2864777A	COVER	4T2864777A COVER RHD	-	1	Enquire
23	4T2864775D	BLANKET	4T2864775D BLANKET RHD	-	1	Enquire
24	N90900402	HEX SOCKET OVAL HEAD COLLARED	N90900402 HEX SOCKET OVAL HEAD COLLARED M6X20	-	1	Enquire
25	N10000402	OVAL HEAD PANEL SCREW	N10000402 OVAL HEAD PANEL SCREW B4 -8X16	-	1	Enquire
26	N10082908	HEX COLLARED BOLT	N10082908 HEX COLLARED BOLT M6X16	-	2	Enquire
27	823881763	EDGE PROTECTION	823881763 EDGE PROTECTION	-	2	Enquire
28	4T1864417A	FOOT REST	4T1864417A FOOT REST	-	1	Enquire

Haven't found what you're looking for?

More: Lamborghini Brakes Tuning Parts Need help? Call us

View Cart / Checkout

Brake And Accel. Lever Mech.

Lamborghini Huracan Evo Spyder 2WD

Illustration Number: 721.01.00

Lamborghini Huracan Evo Spyder 2WD - BRAKE AND ACCEL. LEVER MECH. (721.01.00)
