REAR AXLE REAR of Lamborghini Lamborghini Huracan Evo Spyder 2WD

View All

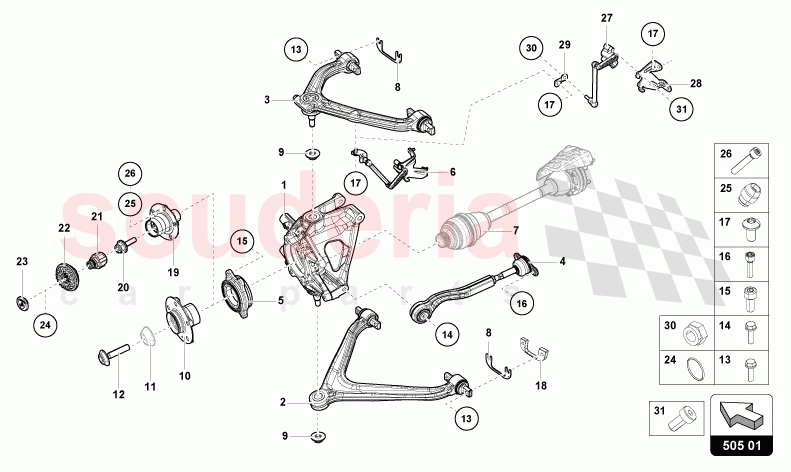

Lamborghini Huracan Evo Spyder 2WD - REAR AXLE REAR (505.01.00)

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	4S0505433E	WHEEL BEARING HOUSING	Enquire	To Order
	4S0505434E	WHEEL BEARING HOUSING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4T0505311A	WISHBONE	Enquire	To Order
	4T0505312A	WISHBONE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4T0505323	WISHBONE	Enquire	To Order
	4T0505324	WISHBONE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4S0501529B	TRACK ROD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8K0407625F	DUOBLE BALL BEARING	Enquire	ARRIVING SOON
	8K0407625P	DUOBLE BALL BEARING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4S0941273D	LEVEL SENSOR WITH POLES	Enquire	To Order
	4S0941274D	LEVEL SENSOR WITH POLES	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4S0407203C	BALANCING PLATE	Enquire	To Order
	4S0407203D	BALANCING PLATE	Enquire	To Order
	4S0407203E	BALANCING PLATE	Enquire	To Order

...and 2 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	WHT004898	HEXAGON COLLAR NUT SELF-LOCKING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8K0407613B	WHEEL HUB	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8E0407643A	SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	WHT007142	HEXAGON BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	WHT002059	BOLT, HEX HEAD WITH SHOULDER (COMBI)	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	WHT000237	BALL SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N10660901	SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N10405604	OVAL HEXAGON SOCKET HEAD BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	470698009	O-RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	470615315	FOLLOWER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	WHT008292	SOCKET HEAD BOLT WITH HEXAGON SOCKET HEAD	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	4S0505433E	WHEEL BEARING HOUSING	4S0505433E WHEEL BEARING HOUSING CONTACT YOUR AREA MANAGER-LEFT	-	1	Enquire
1	4S0505434E	WHEEL BEARING HOUSING	4S0505434E WHEEL BEARING HOUSING CONTACT YOUR AREA MANAGER-RIGHT	-	1	Enquire
2	4T0505311A	WISHBONE	4T0505311A WISHBONE CONTACT YOUR AREA MANAGER-LEFT LOWER	-	1	Enquire
2	4T0505312A	WISHBONE	4T0505312A WISHBONE CONTACT YOUR AREA MANAGER-RIGHT LOWER	-	1	Enquire
3	4T0505323	WISHBONE	4T0505323 WISHBONE CONTACT YOUR AREA MANAGER-LEFT UPPER	-	1	Enquire
3	4T0505324	WISHBONE	4T0505324 WISHBONE CONTACT YOUR AREA MANAGER-RIGHT UPPER	-	1	Enquire
4	4S0501529B	TRACK ROD	4S0501529B TRACK ROD LEFT A. RIGHT	-	2	Enquire
5	8K0407625F	DUOBLE BALL BEARING ARRIVING SOON	8K0407625F DUOBLE BALL BEARING 62/61X40 -5 ARRIVING SOON	-	2	Enquire
5	8K0407625P	DUOBLE BALL BEARING	8K0407625P DUOBLE BALL BEARING	-	2	Enquire
6	4S0941273D	LEVEL SENSOR WITH POLES	4S0941273D LEVEL SENSOR WITH POLES LEFT	-	1	Enquire
6	4S0941274D	LEVEL SENSOR WITH POLES	4S0941274D LEVEL SENSOR WITH POLES RIGHT	-	1	Enquire
8	4S0407203C	BALANCING PLATE	4S0407203C BALANCING PLATE 1MM	-	4	Enquire
8	4S0407203D	BALANCING PLATE	4S0407203D BALANCING PLATE 2MM	-	4	Enquire
8	4S0407203E	BALANCING PLATE	4S0407203E BALANCING PLATE 3MM	-	4	Enquire
8	4S0407203G	BALANCING PLATE	4S0407203G BALANCING PLATE 0 -5MM	-	4	Enquire
8	4S0407203H	BALANCING PLATE	4S0407203H BALANCING PLATE 1 -5MM	-	4	Enquire
9	WHT004898	HEXAGON COLLAR NUT SELF-LOCKING	WHT004898 HEXAGON COLLAR NUT SELF-LOCKING M14X1 -5	-	4	Enquire
10	8K0407613B	WHEEL HUB	8K0407613B WHEEL HUB	-	2	Enquire
12	8E0407643A	SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD	8E0407643A SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD M16X1 -5X72	-	2	Enquire
13	WHT007142	HEXAGON BOLT	WHT007142 HEXAGON BOLT M10X40	-	8	Enquire
14	WHT002059	BOLT, HEX HEAD WITH SHOULDER (COMBI)	WHT002059 BOLT, HEX HEAD WITH SHOULDER (COMBI) M12X1 -5X80	-	8	Enquire
15	WHT000237	BALL SCREW	WHT000237 BALL SCREW M12X1 -5X45	-	8	Enquire
16	N10660901	SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD	N10660901 SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD M10X40	-	8	Enquire
17	N10405604	OVAL HEXAGON SOCKET HEAD BOLT	N10405604 OVAL HEXAGON SOCKET HEAD BOLT M6X14	-	8	Enquire
24	470698009	O-RING	470698009 O-RING	-	2	Enquire
25	470615315	FOLLOWER	470615315 FOLLOWER	-	10	Enquire
26	WHT008292	SOCKET HEAD BOLT WITH HEXAGON SOCKET HEAD	WHT008292 SOCKET HEAD BOLT WITH HEXAGON SOCKET HEAD M6X16	-	10	Enquire

Haven't found what you're looking for?

Original Parts Tuning Parts Need help? Call us

View Cart / Checkout

Rear Axle Rear

Lamborghini Huracan Evo Spyder 2WD

Illustration Number: 505.01.00

Lamborghini Huracan Evo Spyder 2WD - REAR AXLE REAR (505.01.00)
