A/C CONDENSER of Lamborghini Lamborghini Huracan Evo Spyder 2WD

View All

Lamborghini Huracan Evo Spyder 2WD - A/C CONDENSER (260.01.00)

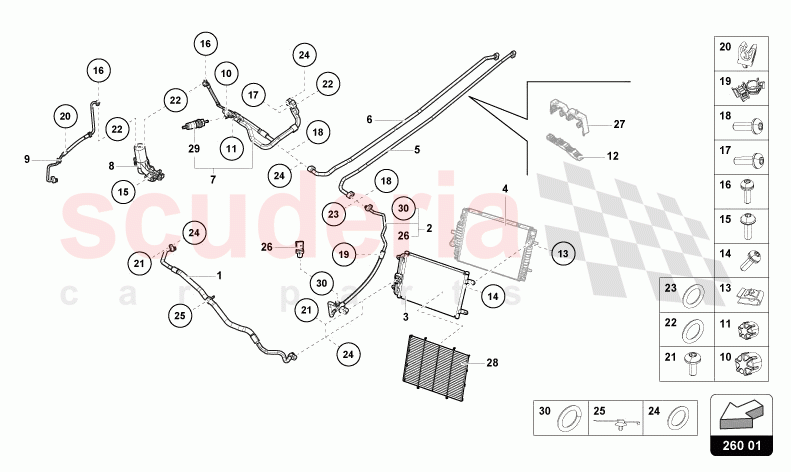

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	4S0816750D	PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4S0816726K	PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4S0816411A	A/C CONDENSER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4S0816722E	PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4S0816744E	PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4S0816738C	PIPE	Enquire	To Order
	4S0820738C	PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4S0820191D	DRIER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4T0816741A	PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	3C0820231	PROTECTIVE CAP	Enquire	To Order
	5Q0816231	PROTECTIVE CAP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	3C0820581	PROTECTIVE CAP	Enquire	To Order
	5Q0816581	PROTECTIVE CAP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N90342503	SPEED NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N10347003	SOCKET HEAD BOLT WITH INNER HEX ROUND HEAD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N10156206	OVAL HEXAGON SOCKET HEAD BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N10347103	HEXAGON SOCKET OVAL HEAD BOLT (COMBI)	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N10414402	SOCKET HEAD BOLT WITH HEXAGON SOCKET HEAD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N10347404	SOCKET HEAD BOLT WITH HEXAGON SOCKET HEAD (COMBINATION)	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4S0260759B	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N90943501	HOSE BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N91193003	HEX SOCKET HEAD BOLT (COMBI)	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	3D0260749C	SEAL RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4E0260749A	SEAL RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4E0260749B	SEAL RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N90926601	CABLE TIES	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4H0959126C	PRESSURE SENDER FOR REFRIGERANT CIRCUIT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8E0820855	EVACUATING AND CHARGING VALVE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8A0260749AK	O-RING	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	4S0816750D	PIPE	4S0816750D PIPE	-	2	Enquire
2	4S0816726K	PIPE	4S0816726K PIPE	-	2	Enquire
3	4S0816411A	A/C CONDENSER	4S0816411A A/C CONDENSER	-	2	Enquire
5	4S0816722E	PIPE	4S0816722E PIPE	-	1	Enquire
6	4S0816744E	PIPE	4S0816744E PIPE	-	1	Enquire
7	4S0816738C	PIPE	4S0816738C PIPE	-	1	Enquire
7	4S0820738C	PIPE	4S0820738C PIPE	-	1	Enquire
8	4S0820191D	DRIER	4S0820191D DRIER	-	1	Enquire
9	4T0816741A	PIPE	4T0816741A PIPE	-	1	Enquire
10	3C0820231	PROTECTIVE CAP	3C0820231 PROTECTIVE CAP REFRIGERANT R134A	-	1	Enquire
10	5Q0816231	PROTECTIVE CAP	5Q0816231 PROTECTIVE CAP REFRIGERANT 1234YF	-	1	Enquire
11	3C0820581	PROTECTIVE CAP	3C0820581 PROTECTIVE CAP REFRIGERANT R134A	-	1	Enquire
11	5Q0816581	PROTECTIVE CAP	5Q0816581 PROTECTIVE CAP REFRIGERANT 1234YF	-	1	Enquire
13	N90342503	SPEED NUT	N90342503 SPEED NUT M6X19 -5X18	-	8	Enquire
14	N10347003	SOCKET HEAD BOLT WITH INNER HEX ROUND HEAD	N10347003 SOCKET HEAD BOLT WITH INNER HEX ROUND HEAD M6X16	-	8	Enquire
15	N10156206	OVAL HEXAGON SOCKET HEAD BOLT	N10156206 OVAL HEXAGON SOCKET HEAD BOLT M6X30	-	4	Enquire
16	N10347103	HEXAGON SOCKET OVAL HEAD BOLT (COMBI)	N10347103 HEXAGON SOCKET OVAL HEAD BOLT (COMBI) M6X20	-	4	Enquire
17	N10414402	SOCKET HEAD BOLT WITH HEXAGON SOCKET HEAD	N10414402 SOCKET HEAD BOLT WITH HEXAGON SOCKET HEAD M8X28	-	4	Enquire
18	N10347404	SOCKET HEAD BOLT WITH HEXAGON SOCKET HEAD (COMBINATION)	N10347404 SOCKET HEAD BOLT WITH HEXAGON SOCKET HEAD (COMBINATION) M6X35	-	4	Enquire
19	4S0260759B	CLIP	4S0260759B CLIP	-	2	Enquire
20	N90943501	HOSE BRACKET	N90943501 HOSE BRACKET	-	4	Enquire
21	N91193003	HEX SOCKET HEAD BOLT (COMBI)	N91193003 HEX SOCKET HEAD BOLT (COMBI) M6X28	-	8	Enquire
22	3D0260749C	SEAL RING	3D0260749C SEAL RING 9 -5X2,5	-	2	Enquire
23	4E0260749A	SEAL RING	4E0260749A SEAL RING 11X2 -5	-	1	Enquire
24	4E0260749B	SEAL RING	4E0260749B SEAL RING 13 -7X2,5	-	4	Enquire
25	N90926601	CABLE TIES	N90926601 CABLE TIES 4 -6X200MM 6,5/2,5-3,5MM OUTER	-	2	Enquire
26	4H0959126C	PRESSURE SENDER FOR REFRIGERANT CIRCUIT	4H0959126C PRESSURE SENDER FOR REFRIGERANT CIRCUIT	-	1	Enquire
29	8E0820855	EVACUATING AND CHARGING VALVE	8E0820855 EVACUATING AND CHARGING VALVE	-	2	Enquire
30	8A0260749AK	O-RING	8A0260749AK O-RING 7 -6X1,8	-	1	Enquire
