Frame Floor Panels of Lamborghini Lamborghini Huracan LP640 Performante Coupe

View All

Lamborghini Huracan LP640 Performante Coupe - Frame Floor Panels

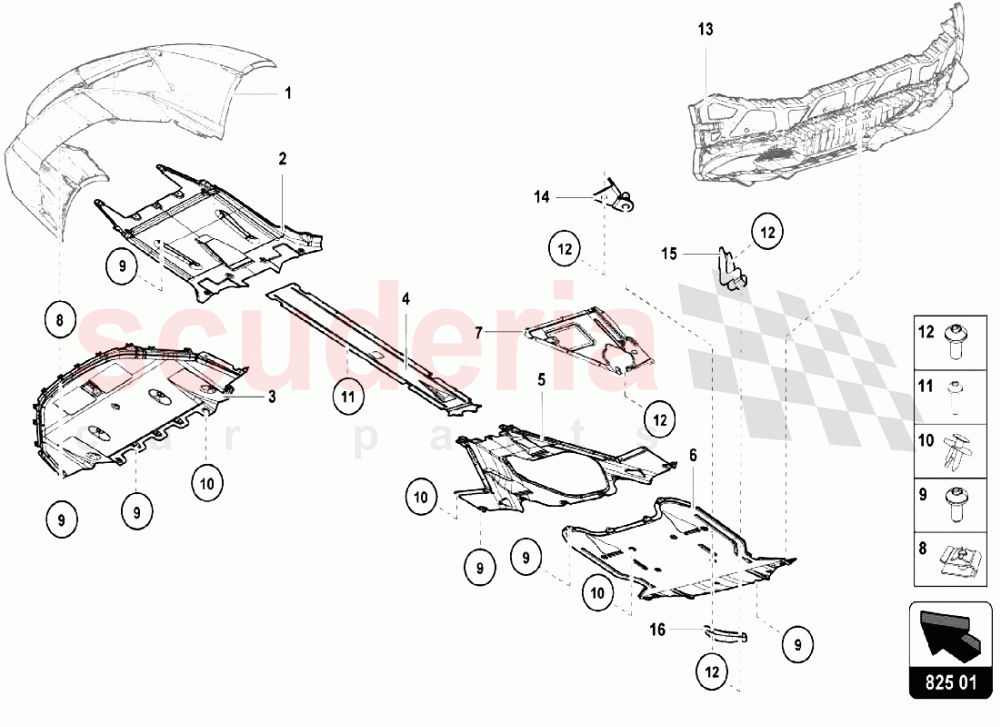

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
002	4T0825208A	UNDERBODY TRIM	4T0825208A UNDERBODY TRIM	-	1	Enquire
003	4T0825101C	Underbody Trim (Front)	4T0825101C Underbody Trim (Front)	-	1	Enquire
004	4T0825207B	UNDERBODY TRIM	4T0825207B UNDERBODY TRIM	-	1	Enquire
004	4T0825207A	Underbody Trim (contact Your Area Manager-center)	4T0825207A Underbody Trim (contact Your Area Manager-center)	-	1	Enquire
005	4S0825201G	UNDERBODY TRIM	4S0825201G UNDERBODY TRIM	-	1	Enquire
006	4T0825205C	Underbody Trim	4T0825205C Underbody Trim	-	1	Enquire
007	4S0825215C	Underbody Trim (from Vin Fla01766 - Contact Your Area Manager-left Rear)	4S0825215C Underbody Trim (from Vin Fla01766 - Contact Your Area Manager-left Rear)	-	1	Enquire
007	4S0825216C	UNDERBODY TRIM	4S0825216C UNDERBODY TRIM	-	1	Enquire
007	4S0825215G	Underbody Trim (from Vin Fla01766 - Contact Your Area Manager-left Rear)	4S0825215G Underbody Trim (from Vin Fla01766 - Contact Your Area Manager-left Rear)	-	1	Enquire
008	N90688703	SPEED NUT	N90688703 SPEED NUT	-	14	Enquire
009	N91042302	OVAL HEXAGON SOCKET HEAD BOLT	N91042302 OVAL HEXAGON SOCKET HEAD BOLT	-	20	Enquire
010	WHT004750	SPREADER RIVET	WHT004750 SPREADER RIVET	-	9	Enquire
011	N90896301	Hexagon Socket Head Bolt (m6x20)	N90896301 Hexagon Socket Head Bolt (m6x20)	-	30	Enquire
012	N91042303	OVAL HEXAGON SOCKET HEAD BOLT	N91042303 OVAL HEXAGON SOCKET HEAD BOLT	-	8	Enquire
014	4T0825346	ARM	4T0825346 ARM	-	1	Enquire
014	4T0825345	ARM	4T0825345 ARM	-	1	Enquire
015	4T0825332	ARM	4T0825332 ARM	-	1	Enquire
015	4T0825331	ARM	4T0825331 ARM	-	1	Enquire
