Find Your Part

IGNITION of Lamborghini Lamborghini Huracan LP610 Spyder

View All

Lamborghini Huracan LP610 Spyder - IGNITION

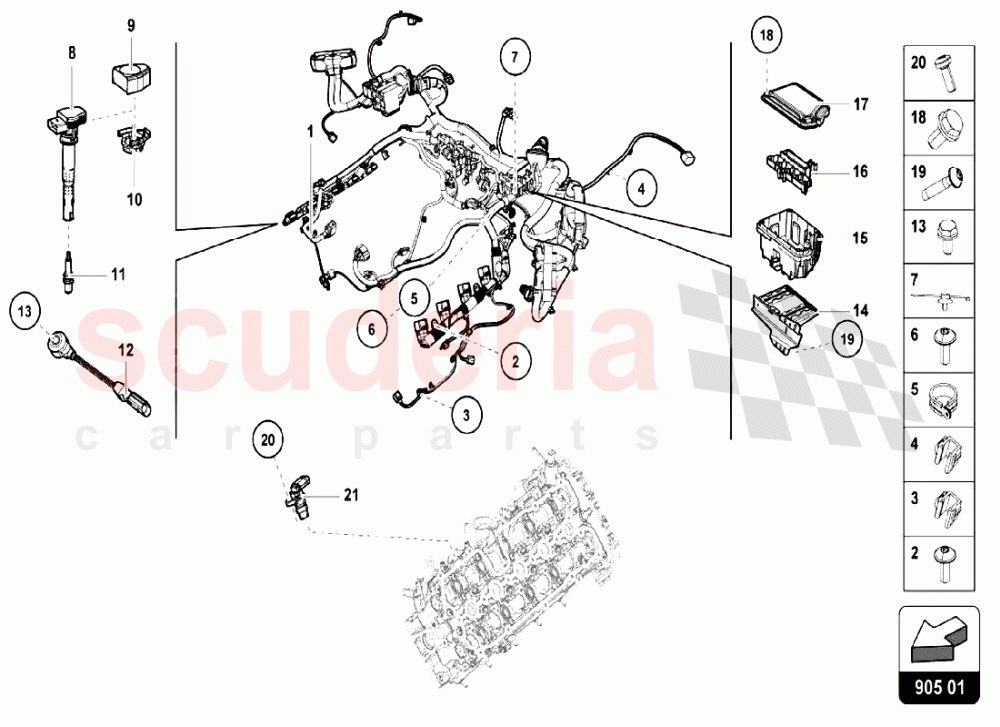

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	7L905116B	PROTECTIVE CAP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6H905601C	SPARK PLUG 'LONGLIFE'	Enquire	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	6E905377A	KNOCK SENSOR (GREEN)	Enquire	To Order
	6E905377K	KNOCK SENSOR WITH WIRING HARNESS	Enquire	To Order
	7L905377E	KNOCK SENSOR WITH WIRING HARNESS	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	N01024425	HEXAGON BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4S0937540B	BRACKET	Enquire	To Order
	4S0937539B	BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4S0937113A	HOUSING FOR CONTROL UNITS	Enquire	To Order
	4S09375114A	RH E-BOX	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4S0937503	RELAY PLATE	Enquire	To Order
	4S0937507	RELAY PLATE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4S0937555A	COVER	Enquire	To Order
	4S0937554A	COVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N90739704	PANEL SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N10653201	HEX COLLARED BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4C907601K	IMPULSE SENDER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N10196103	OVAL SOCKET HEAD BOLT WITH HEX DRIVE	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
01	4T7971713	WIRING SET FOR ENGINE	4T7971713 WIRING SET FOR ENGINE	-	1	Enquire
02	N10464802	OVAL HEXAGON SOCKET HEAD BOLT	N10464802 OVAL HEXAGON SOCKET HEAD BOLT	-	3	Enquire
03	WHT001999	CABLE TIE WITH TERMINAL SOCKET	WHT001999 CABLE TIE WITH TERMINAL SOCKET	-	12	Enquire
04	5M0971838	CABLE TIE WITH TERMINAL SOCKET	5M0971838 CABLE TIE WITH TERMINAL SOCKET	-	12	Enquire
05	N91123701	CLAMP	N91123701 CLAMP	-	2	Enquire
06	N90833202	HEXAGON BOLT	N90833202 HEXAGON BOLT	-	2	Enquire
07	N10646101	CABLE TIES	N10646101 CABLE TIES	-	1	Enquire
08	79905115B	IGNITION COIL	79905115B IGNITION COIL	-	10	Enquire
09	7L905142	PROTECTIVE CAP	7L905142 PROTECTIVE CAP	-	10	Enquire
10	7L905116B	PROTECTIVE CAP	7L905116B PROTECTIVE CAP	-	10	Enquire
11	6H905601C	SPARK PLUG 'LONGLIFE' ARRIVING SOON	6H905601C SPARK PLUG 'LONGLIFE' ARRIVING SOON	-	10	Enquire
12	6E905377A	KNOCK SENSOR (GREEN)	6E905377A KNOCK SENSOR (GREEN)	-	1	Enquire
12	6E905377K	KNOCK SENSOR WITH WIRING HARNESS	6E905377K KNOCK SENSOR WITH WIRING HARNESS	-	1	Enquire
12	7L905377E	KNOCK SENSOR WITH WIRING HARNESS	7L905377E KNOCK SENSOR WITH WIRING HARNESS	-	1	Enquire
12	7L905377F	KNOCK SENSOR WITH WIRING HARNESS	7L905377F KNOCK SENSOR WITH WIRING HARNESS	-	1	Enquire
13	N01024425	HEXAGON BOLT	N01024425 HEXAGON BOLT	-	-	Enquire
14	4S0937540B	BRACKET	4S0937540B BRACKET	-	1	Enquire
14	4S0937539B	BRACKET	4S0937539B BRACKET	-	1	Enquire
15	4S0937113A	HOUSING FOR CONTROL UNITS	4S0937113A HOUSING FOR CONTROL UNITS	-	1	Enquire
15	4S09375114A	RH E-BOX	4S09375114A RH E-BOX	-	1	Enquire
16	4S0937503	RELAY PLATE	4S0937503 RELAY PLATE	-	1	Enquire
16	4S0937507	RELAY PLATE	4S0937507 RELAY PLATE	-	1	Enquire
17	4S0937555A	COVER	4S0937555A COVER	-	1	Enquire
17	4S0937554A	COVER	4S0937554A COVER	-	1	Enquire
18	N90739704	PANEL SCREW	N90739704 PANEL SCREW	-	2	Enquire
19	N10653201	HEX COLLARED BOLT	N10653201 HEX COLLARED BOLT	-	2	Enquire
20	4C907601K	IMPULSE SENDER	4C907601K IMPULSE SENDER	-	4	Enquire
21	N10196103	OVAL SOCKET HEAD BOLT WITH HEX DRIVE	N10196103 OVAL SOCKET HEAD BOLT WITH HEX DRIVE	-	4	Enquire
