Name: Lh Tank
Rating: 5.0 (1 reviews)

Find Your Part

View All

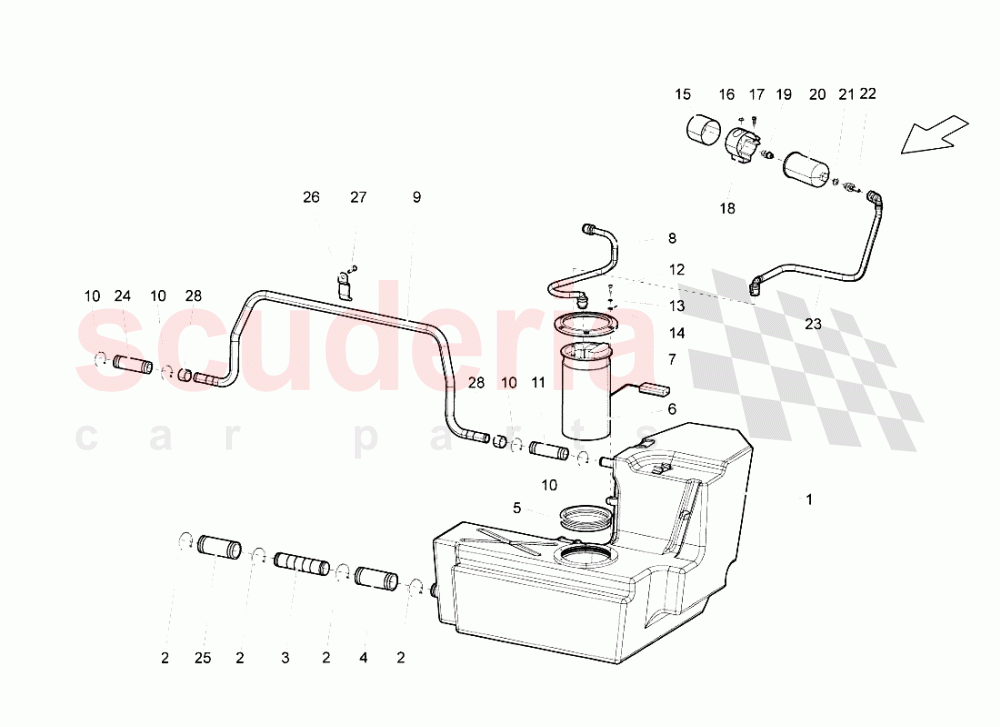

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	407201075A	LH TANK	407201075A LH TANK	-	1	Enquire
002	N91115301	CLAMP	N91115301 CLAMP	-	1	Enquire
003	400201903	PIPE	400201903 PIPE	-	1	Enquire
005	1J0919133	GASKET	1J0919133 GASKET	-	1	Enquire
006	8L0919051H	Pump	8L0919051H Pump	-	1	Enquire
007	400201099	FLANGE	400201099 FLANGE	-	1	Enquire
008	407201219	LH PIPE	407201219 LH PIPE	-	1	Enquire
009	407201787C	PIPE	407201787C PIPE	-	1	Enquire
010	N91115201	CLAMP	N91115201 CLAMP	-	1	Enquire
011	400201539A	SLEEVE	400201539A SLEEVE	-	1	Enquire
012	WHT001194	SCREW	WHT001194 SCREW	-	1	Enquire
013	WHT001187	WASHER	WHT001187 WASHER	-	1	Enquire
014	400201211	EARTHING STRAP	400201211 EARTHING STRAP	-	1	Enquire
015	400201558A	GASKET	400201558A GASKET	-	1	Enquire
016	N10017304	HEXAGON COLLAR NUT	N10017304 HEXAGON COLLAR NUT	-	1	Enquire
017	N10207001	SCREW	N10207001 SCREW	-	1	Enquire
018	400201255	BRACKET	400201255 BRACKET	-	1	Enquire
019	400201149B	CONNECTOR	400201149B CONNECTOR	-	1	Enquire
020	400201511A	Fuel Filter	400201511A Fuel Filter	-	1	Enquire
021	400201349	WASHER	400201349 WASHER	-	1	Enquire
022	400201149	CONNECTOR	400201149 CONNECTOR	-	1	Enquire
023	400201215A	LH PIPE	400201215A LH PIPE	-	1	Enquire
024	400201539A	SLEEVE	400201539A SLEEVE	-	1	Enquire
026	407201368	BRACKET	407201368 BRACKET	-	1	Enquire
027	N90944603	OVAL HEXAGON SOCKET HEAD BOLT	N90944603 OVAL HEXAGON SOCKET HEAD BOLT	-	1	Enquire
028	407201546	PROTECTION	407201546 PROTECTION	-	2	Enquire
