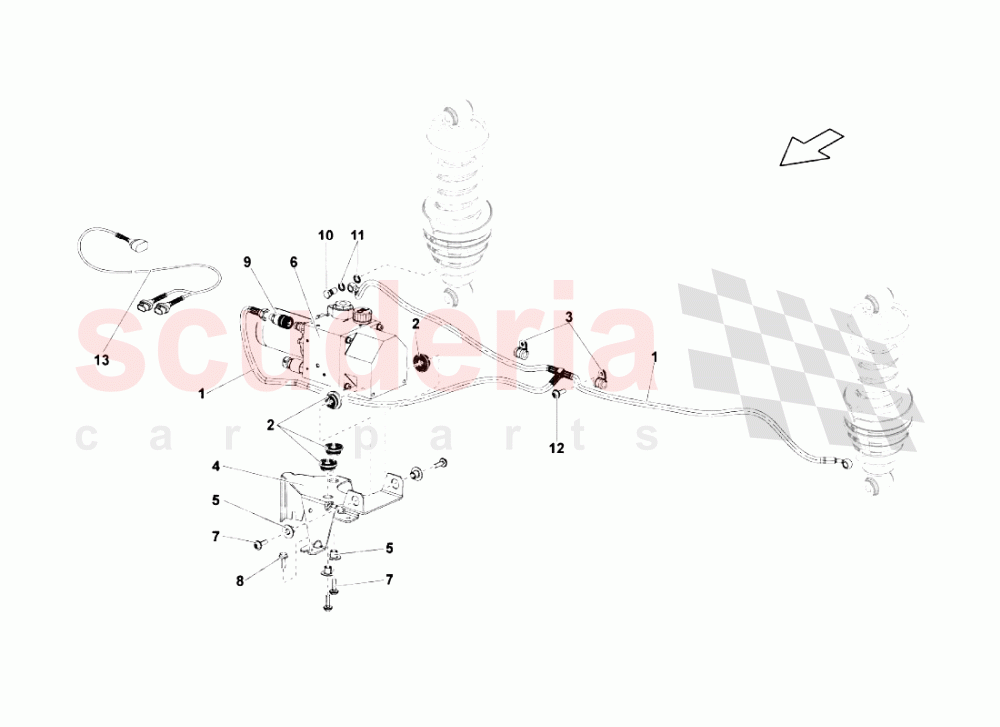

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
001	402616733A	HOSE	402616733A HOSE	$356.18	1
002	8Z0129669A	GROMMET	8Z0129669A GROMMET	$6.11	4
003	N0206517	CLAMP	N0206517 CLAMP	$1.96 MSRP: ~~7.10~~ (72.4% off)	2
004	402412161	SUPPORT	402412161 SUPPORT	$55.03	1
005	8Z0129734	BUSH	8Z0129734 BUSH	$8.56	4
006	400412185D	JACKING SYSTEM CONTROL UNIT	400412185D JACKING SYSTEM CONTROL UNIT	$7,215.66	1
006	400412185E	JACKING SYSTEM CONTROL UNIT	400412185E JACKING SYSTEM CONTROL UNIT 2011 & 2012 models only	$7,409.50	1
007	N91032702	ROUND-HEAD SCREW WITH INNER HEXAGON SOCKET HEAD	N91032702 ROUND-HEAD SCREW WITH INNER HEXAGON SOCKET HEAD	$1.68	4
008	N90533003	BOLT, HEX. HD. (COMBI.) SELF-LOCKING	N90533003 BOLT, HEX. HD. (COMBI.) SELF-LOCKING	$3.05	3
009	86325273A	CONNECTION (FROM VIN 6LA04010)	86325273A CONNECTION (FROM VIN 6LA04010)	$420.70	1
010	WHT003303	SCREW WITH HOLE	WHT003303 SCREW WITH HOLE	$12.84	2
011	400616817A	WASHER	400616817A WASHER	$2.90	4
012	N10553804	HEXAGON HEAD BOLT (COMBI)	N10553804 HEXAGON HEAD BOLT (COMBI)	$1.89 MSRP: ~~7.07~~ (73.3% off)	2
013	400971059C	WIRING HARNESS	400971059C WIRING HARNESS	$75.80	1
