Front Wheel and Hub Carrier of Lamborghini Lamborghini Diablo SV (1999)

View All

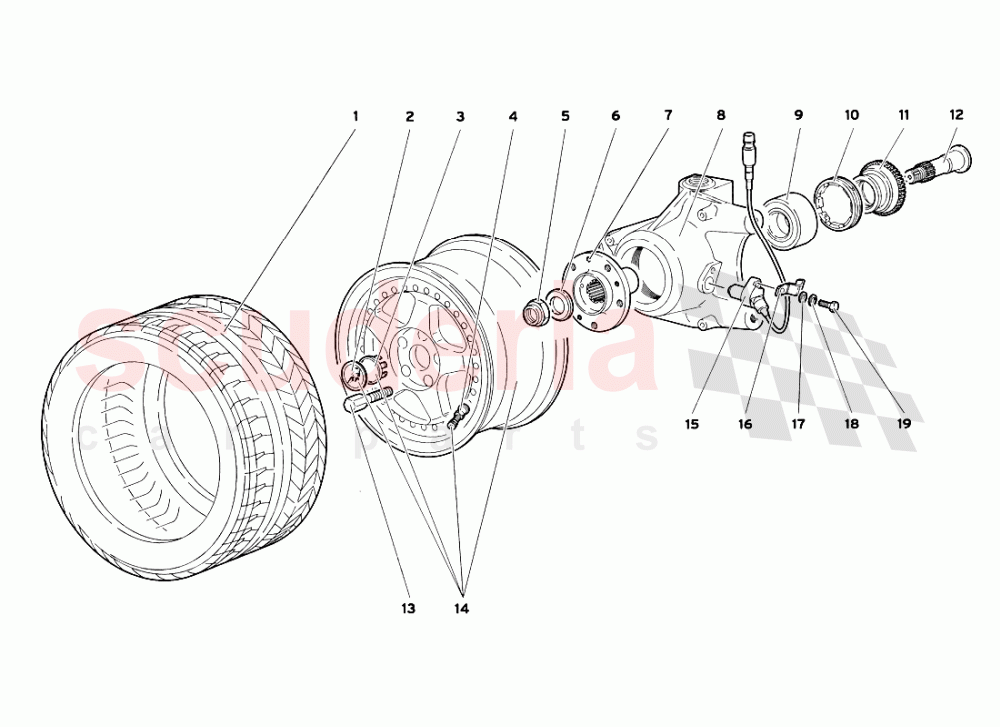

Lamborghini Diablo SV (1999) - Front Wheel and Hub Carrier

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
000	54459528	SVR CENTRE LOCK FRONT WHEEL	54459528 SVR CENTRE LOCK FRONT WHEEL	-	2	Enquire
001	51000542	FRONT TYRE	51000542 FRONT TYRE PNEUMATICO ANT. 235/35 ZR 18	$969.80	2
002	5236291	ORNAMENT	5236291 ORNAMENT FREGIO -USE: 0052006285	$34.81	2
003	5236290	PLUG - PLUG - USE: 0052006285	5236290 PLUG - PLUG - USE: 0052006285 - USE: 0052006285	$72.58	2
004	5330906	VALVE	5330906 VALVE VALVOLA	$51.18	2
005	410407338	NUT	410407338 NUT DADO	$455.66	2
006	410407631	WASHER	410407631 WASHER	$185.48	2
007	51001039	HUB	51001039 HUB MOZZO	$553.36 MSRP: ~~577.00~~ (4.1% off)	2
008	51000984	RIGHT HUB HOUSING	51000984 RIGHT HUB HOUSING PORTAMOZZO DX	$3,864.76 MSRP: ~~4,035.00~~ (4.2% off)	1
008	51000983	LEFT HUB HOUSING	51000983 LEFT HUB HOUSING PORTAMOZZO SX	$3,864.76 MSRP: ~~4,035.00~~ (4.2% off)	1
009	8514501	BEARING	8514501 BEARING CUSCINETTO	$115.64 MSRP: ~~121.00~~ (4.4% off)	2
010	5233369	PLUG	5233369 PLUG GHIERA	$240.08 MSRP: ~~251.00~~ (4.4% off)	2
011	51001033	PHONIC WHEEL	51001033 PHONIC WHEEL RUOTA FONICA	$480.16 MSRP: ~~502.00~~ (4.4% off)	2
012	51001038	PIN	51001038 PIN PERNO	$703.50	2
013	51001075	STUD	51001075 STUD COLONNETTA	$32.95 MSRP: ~~34.45~~ (4.4% off)	10
013	51001075LB	LOCKING WHEEL BOLT SET	51001075LB LOCKING WHEEL BOLT SET (includes 1 bolt for each wheel and removal tool)	-	1	Enquire
014	51005042	FRONT RIM	51005042 FRONT RIM (Valid for USA - July 1999) CERCHIO RUOTA ANTERIORE	$1,581.88	2
014	51004012	FRONT RIM	51004012 FRONT RIM 18'' size	$1,581.88	2
015	51001139	TYRE REVOLUT. SENS.	51001139 TYRE REVOLUT. SENS. SENSORE GIRI RUOTA LAVOR.	$252.49	2
016	51001477	SUPPORT - SUPPORTO	51001477 SUPPORT - SUPPORTO O	-	2	Enquire
017	N01152427	WASHER IN STOCK	N01152427 WASHER RONDELLA IN STOCK	$0.28	2
018	WHT002963	WASHER IN STOCK	WHT002963 WASHER RONDELLA IN STOCK	$0.13 MSRP: ~~7.38~~ (98.2% off)	2
019	8100603	SCREW	8100603 SCREW VITE	$1.38 MSRP: ~~7.35~~ (81.2% off)	2
