Electrohydraulic ABS ECU of Lamborghini Lamborghini Diablo SV (1999)

View All

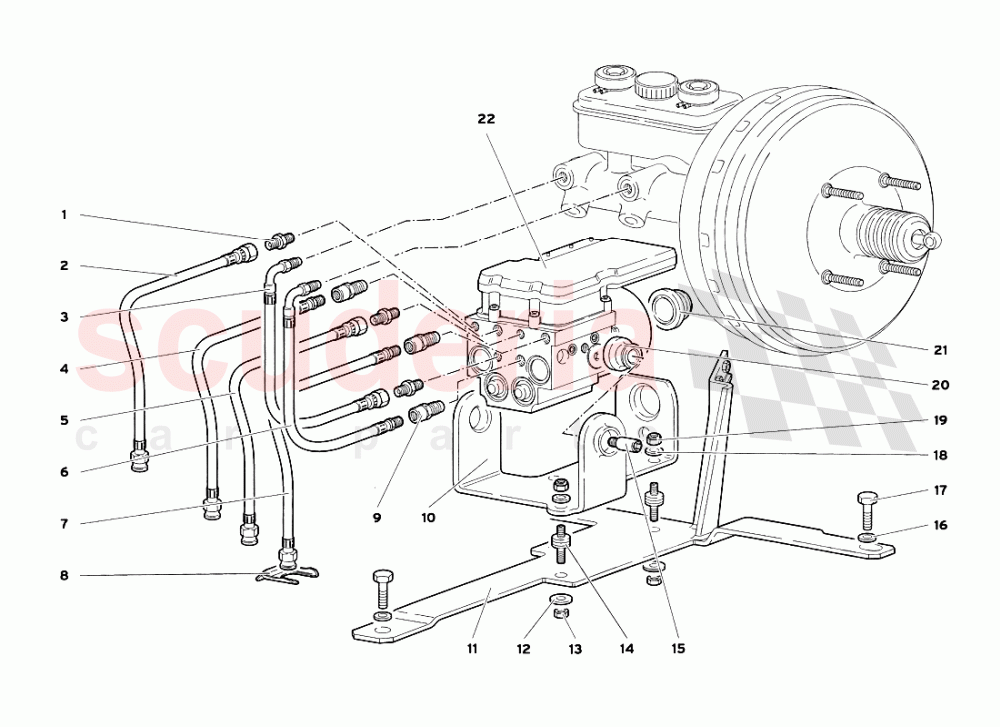

Lamborghini Diablo SV (1999) - Electrohydraulic ABS ECU

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	31001088	CONNECTION	31001088 CONNECTION RACCORDO	-	3	Enquire
002	32001097	FLEX. HOSE	32001097 FLEX. HOSE TUBO FLESSIBILE	-	1	Enquire
002	32001508	FLEX. HOSE	32001508 FLEX. HOSE (Valid for AUSTRALIA - July 1999) TUBO FLESSIBILE	-	1	Enquire
002	32001508	FLEX. HOSE	32001508 FLEX. HOSE (Valid for GB - July 1999) TUBO FLESSIBILE	-	1	Enquire
003	32001096	FLEX. HOSE	32001096 FLEX. HOSE TUBO FLESSIBILE	-	1	Enquire
003	32001504	FLEX. HOSE	32001504 FLEX. HOSE (Valid for GB - July 1999) TUBO FLESSIBILE	-	1	Enquire
003	32001504	FLEX. HOSE	32001504 FLEX. HOSE (Valid for AUSTRALIA - July 1999) TUBO FLESSIBILE	-	1	Enquire
004	32001507	FLEX. HOSE	32001507 FLEX. HOSE (Valid for AUSTRALIA - July 1999) TUBO FLESSIBILE	-	1	Enquire
004	32001507	FLEX. HOSE	32001507 FLEX. HOSE (Valid for GB - July 1999) TUBO FLESSIBILE	-	1	Enquire
004	32001101	FLEX. HOSE	32001101 FLEX. HOSE TUBO FLESSIBILE	-	1	Enquire
005	31001091	FLEX. HOSE	31001091 FLEX. HOSE TUBO FLESSIBILE	-	1	Enquire
005	31001506	FLEX. HOSE	31001506 FLEX. HOSE (Valid for AUSTRALIA - July 1999) TUBO FLESSIBILE	-	1	Enquire
005	31001506	FLEX. HOSE	31001506 FLEX. HOSE (Valid for GB - July 1999) TUBO FLESSIBILE	-	1	Enquire
006	31001090	FLEX. HOSE	31001090 FLEX. HOSE TUBO FLESSIBILE	-	1	Enquire
006	31001503	FLEX. HOSE	31001503 FLEX. HOSE (Valid for GB - July 1999) TUBO FLESSIBILE	-	1	Enquire
006	31001503	FLEX. HOSE	31001503 FLEX. HOSE (Valid for AUSTRALIA - July 1999) TUBO FLESSIBILE	-	1	Enquire
007	31001094	FLEX. HOSE	31001094 FLEX. HOSE TUBO FLESSIBILE	-	1	Enquire
007	31001505	FLEX. HOSE	31001505 FLEX. HOSE (Valid for GB - July 1999) TUBO FLESSIBILE	-	1	Enquire
007	31001505	FLEX. HOSE	31001505 FLEX. HOSE (Valid for AUSTRALIA - July 1999) TUBO FLESSIBILE	-	1	Enquire
008	191611715	HOSE BRACKET	191611715 HOSE BRACKET PIASTRINA	-	4	Enquire
009	410614185	CONNECTOR	410614185 CONNECTOR RACCORDO	-	3	Enquire
010	31001291	BRACKET	31001291 BRACKET STAFFA	-	1	Enquire
011	31001552	SUPPORT - (Valid for GB - July 1999) SUPPORTO	31001552 SUPPORT - (Valid for GB - July 1999) SUPPORTO (Valid for GB - July 1999) O	-	1	Enquire
011	31001552	SUPPORT - (Valid for GB - July 1999) SUPPORTO	31001552 SUPPORT - (Valid for GB - July 1999) SUPPORTO (Valid for AUSTRALIA - July 1999) O	-	1	Enquire
011	31001083	SUPPORT - SUPPORTO	31001083 SUPPORT - SUPPORTO O	-	1	Enquire
012	WHT002961	WASHER	WHT002961 WASHER RONDELLA	-	3	Enquire
013	N01118312	HEXAGON NUT, SELF-LOCKING	N01118312 HEXAGON NUT, SELF-LOCKING DADO	-	3	Enquire
014	8920602	FLEXIBLE SUPPORT	8920602 FLEXIBLE SUPPORT SUPPORTO ELASTICO	-	3	Enquire
016	8410819	WASHER	8410819 WASHER RONDELLA	-	3	Enquire
017	N01029315	SCREW (FROM VIN 5LA01545)	N01029315 SCREW (FROM VIN 5LA01545) VITE	-	3	Enquire
018	WHT003213	WASHER	WHT003213 WASHER RONDELLA	-	3	Enquire
019	N01100637	NUT M6	N01100637 NUT M6 DADO	-	3	Enquire
020	31001001	ELASTIC SUPPORT	31001001 ELASTIC SUPPORT SUPPORTO ELASTICO	-	2	Enquire
021	31000999	ELASTIC SUPPORT	31000999 ELASTIC SUPPORT SUPPORTO ELASTICO	-	1	Enquire
022	31000998	ABS ECU	31000998 ABS ECU CENTRALINA ABS	-	1	Enquire
