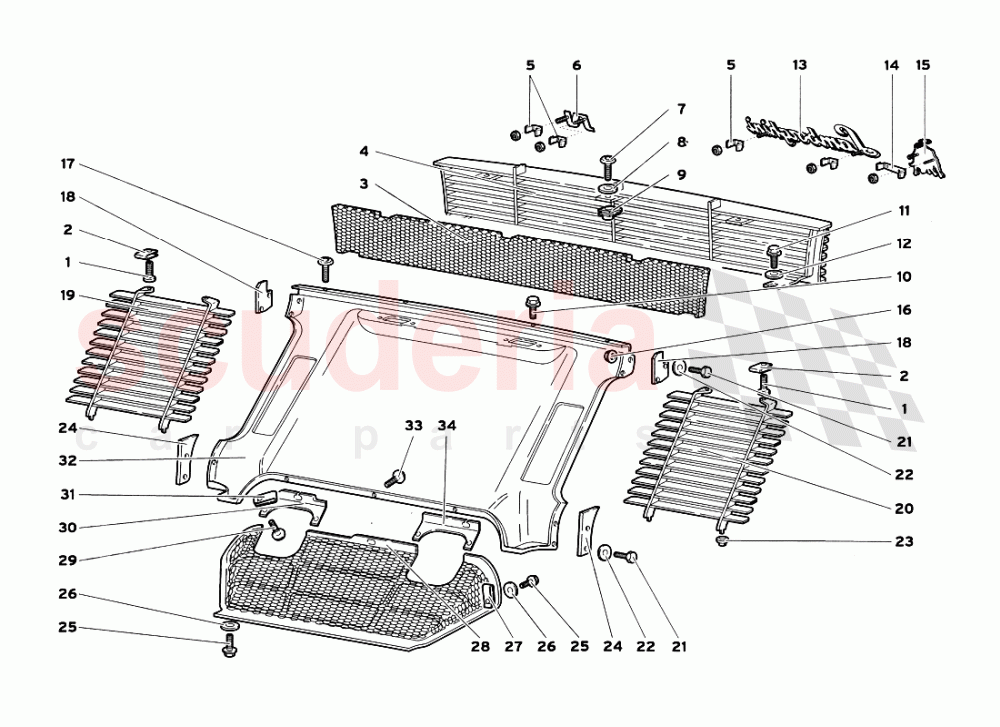

Lamborghini Diablo SV (1999) - Rear Coque Elements (Alternative To Table 66.01.00)

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	8700437	SCREW	8700437 SCREW (Alternative to table 66_01_00) VITE	-	4	Enquire
002	WHT000916A	CLIP	WHT000916A CLIP (Alternative to table 66_01_00) MOLLETTA	-	4	Enquire
003	9430159	NET	9430159 NET (Alternative to table 66_01_00) RETE	-	1	Enquire
004	66004330	GRILLE	66004330 GRILLE (Alternative to table 66_01_00) GRIGLIA	-	1	Enquire
005	66003563	SUPPORT - (Alternative to table 66_01_00) SUPPORTO	66003563 SUPPORT - (Alternative to table 66_01_00) SUPPORTO (Alternative to table 66_01_00) O	-	4	Enquire
007	8740685	SCREW	8740685 SCREW (Alternative to table 66_01_00) VITE	-	3	Enquire
008	8400624	WASHER	8400624 WASHER (Alternative to table 66_01_00) RONDELLA	-	3	Enquire
009	N90327506	SPEED NUT	N90327506 SPEED NUT (Alternative to table 66_01_00) MOLLETTA	-	3	Enquire
010	N10718801	HEX COLLARED BOLT	N10718801 HEX COLLARED BOLT (Alternative to table 66_01_00) VITE	-	2	Enquire
011	8700444	SCREW	8700444 SCREW (Alternative to table 66_01_00) VITE	-	2	Enquire
012	N91109201	WASHER	N91109201 WASHER (Alternative to table 66_01_00) RONDELLA	-	2	Enquire
014	63004142	SUPPORT - (Alternative to table 66_01_00) SUPPORTO	63004142 SUPPORT - (Alternative to table 66_01_00) SUPPORTO (Alternative to table 66_01_00) O	-	1	Enquire
016	N01508213	HEXAGON COLLAR NUT	N01508213 HEXAGON COLLAR NUT (Alternative to table 66_01_00) DADO	-	4	Enquire
017	8740685	SCREW	8740685 SCREW (Alternative to table 66_01_00) VITE	-	2	Enquire
018	9410205	SPACER	9410205 SPACER (Alternative to table 66_01_00) DISTANZIALE	-	2	Enquire
019	9430103	RIGHT GRILLE	9430103 RIGHT GRILLE (Alternative to table 66_01_00) GRIGLIA DX	-	1	Enquire
020	9430168	GRILLE	9430168 GRILLE (Alternative to table 66_01_00) GRIGLIA SX	-	1	Enquire
021	8100621	SCREW	8100621 SCREW (Alternative to table 66_01_00) VITE	-	8	Enquire
022	WHT002961	WASHER	WHT002961 WASHER (Alternative to table 66_01_00) RONDELLA	-	8	Enquire
023	66002463	BUSHING	66002463 BUSHING (Alternative to table 66_01_00) BOCCOLA	-	4	Enquire
024	9410206	SPACER	9410206 SPACER (Alternative to table 66_01_00) DISTANZIALE	-	2	Enquire
025	8700449	SCREW	8700449 SCREW (Alternative to table 66_01_00) VITE	-	4	Enquire
026	N91115501	WASHER	N91115501 WASHER (Alternative to table 66_01_00) RONDELLA	-	4	Enquire
027	N90834301	CLIP NUT	N90834301 CLIP NUT	-	2	Enquire
028	9430145	GRILL	9430145 GRILL (Alternative to table 66_01_00) GRIGLIA	-	1	Enquire
029	N91049601	OVAL HEAD PANEL SCREW (COMBI)	N91049601 OVAL HEAD PANEL SCREW (COMBI) (Alternative to table 66_01_00) VITE	-	4	Enquire
030	9430144	RIGHT PLATE	9430144 RIGHT PLATE (Alternative to table 66_01_00) LAMIERINO DX	-	1	Enquire
031	8220402	CLIP	8220402 CLIP (Alternative to table 66_01_00) MOLLETTA	-	4	Enquire
032	9410200	REAR PANEL	9410200 REAR PANEL (Alternative to table 66_01_00) ELEMENTO SCOCCA POSTERIORE	-	1	Enquire
033	8740685	SCREW	8740685 SCREW (Alternative to table 66_01_00) VITE	-	3	Enquire
034	94320146	LEFT PLATE	94320146 LEFT PLATE (Alternative to table 66_01_00) LAMIERINO SX	-	1	Enquire
