Rear Brakes of Lamborghini Lamborghini Diablo SE30 (1993-1995)

View All

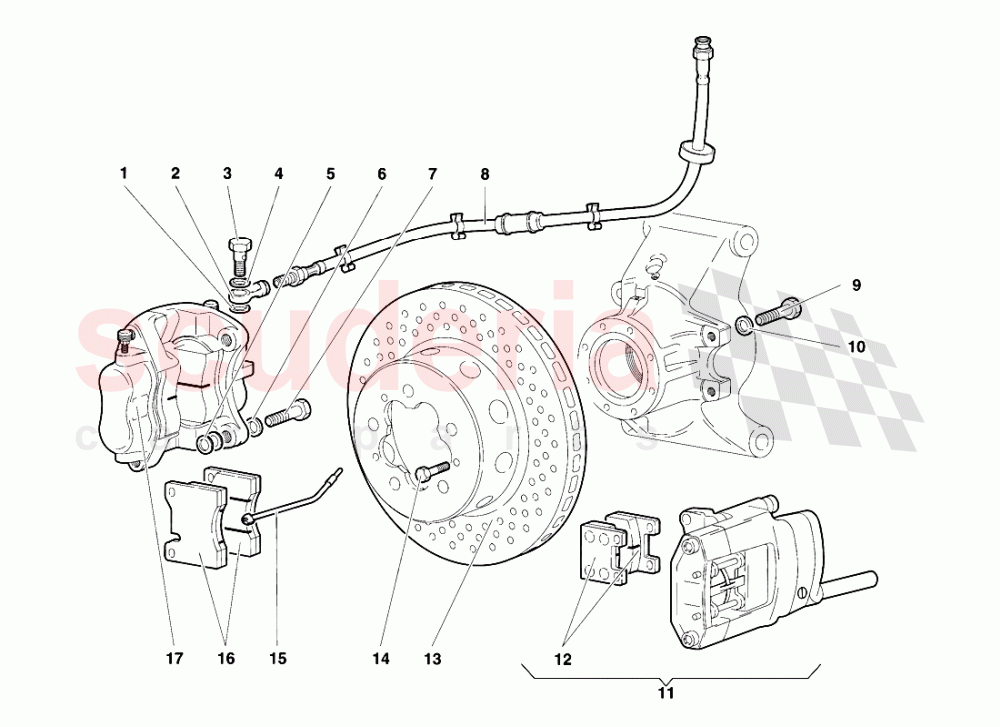

Lamborghini Diablo SE30 (1993-1995) - Rear Brakes

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	3113905	WASHER	3113905 WASHER RONDELLA	-	2	Enquire
002	3113904	CONNECTION	3113904 CONNECTION RACCORDO	-	2	Enquire
003	3113907	SCREW	3113907 SCREW VITE	-	2	Enquire
004	3113906	WASHER	3113906 WASHER RONDELLA	-	2	Enquire
005	3230725	SHIM	3230725 SHIM SPESSORE Dl REGISTRO 0,6 MM	-	1	Enquire
005	3230726	SHIM	3230726 SHIM SPESSORE Dl REGISTRO 0,8 MM	-	1	Enquire
005	3230724	SHIM	3230724 SHIM SPESSORE Dl REGISTRO 0,5 MM	-	1	Enquire
005	3230727	SHIM	3230727 SHIM SPESSORE Dl REGISTRO 1,0 MM	-	1	Enquire
005	3230719	SHIM	3230719 SHIM SPESSORE Dl REGISTRO 0,05 MM	-	1	Enquire
005	3230721	SHIM	3230721 SHIM SPESSORE Dl REGISTRO 0,2 MM	-	1	Enquire
005	3230720	SHIM	3230720 SHIM SPESSORE Dl REGISTRO 0,1 MM	-	1	Enquire
005	3230722	WASHER	3230722 WASHER SPESSORE Dl REGISTRO 0,3 MM	-	1	Enquire
005	3230723	SHIM	3230723 SHIM SPESSORE Dl REGISTRO 0,4 MM	-	1	Enquire
006	8401217	WASHER	8401217 WASHER RONDELLA	-	4	Enquire
007	8101247	SCREW	8101247 SCREW VITE	-	4	Enquire
008	3229882	PIPE	3229882 PIPE TUBO FRENI POSTERIORI	-	2	Enquire
009	8101246	SCREW	8101246 SCREW VITE	-	4	Enquire
010	8411302	WASHER	8411302 WASHER RONDELLA	-	4	Enquire
011	3333274	RIGHT BRAKE CALIPER	3333274 RIGHT BRAKE CALIPER PINZA FRENI DX	-	1	Enquire
011	3333273	LEFT BRAKE CALIPER	3333273 LEFT BRAKE CALIPER PINZA FRENI SX	-	1	Enquire
012	3331672	KIT BRAKE PADS	3331672 KIT BRAKE PADS KIT 4 PASTIGLIE FRENO A MANO - USE 108134 as alternative	-	4	Enquire
013	3234862	REAR BRAKE DISC	3234862 REAR BRAKE DISC DISCO FRENO POSTERIORE	-	2	Enquire
014	N01029315	SCREW (FROM VIN 5LA01545)	N01029315 SCREW (FROM VIN 5LA01545) VITE	-	6	Enquire
015	3135644	ELECT CABLE	3135644 ELECT CABLE CAVO USURA FRENI	-	2	Enquire
016	3235293	REAR BRAKE PADS	3235293 REAR BRAKE PADS	-	1	Enquire
017	3235601	LEFT BRAKE CALIPER	3235601 LEFT BRAKE CALIPER PINZA FRENI POSTERIORE SX	-	1	Enquire
017	3235600	RIGHT BRAKE CALIPER	3235600 RIGHT BRAKE CALIPER PINZA FRENI POSTERIORE DX	-	1	Enquire
