Wing Protector Rear

Lamborghini Aventador LP780 Ultimae Roadster

Illustration Number: 821.02.00

Find Your Part

Lamborghini Aventador LP780 Ultimae Roadster - WING PROTECTOR REAR (821.02.00)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
470854959AC LINING FOR FENDER $11,465.00 To Order
470854959ACGRU LINING FOR FENDER Enquire To Order
470854960AD LINING FOR FENDER $11,465.00 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
470853795A SECURING BRACKET $29.64 To Order
470853796A SECURING BRACKET $149.20 IN STOCK
Photo Part No Description Price (each) Stock
470853587B MUD WING COMPENSATION PLATE $25.15 To Order
470853588B MUD WING COMPENSATION PLATE $25.15 To Order
Photo Part No Description Price (each) Stock
470853945A MUD WING COMPENSATION PLATE $15.87 To Order
Photo Part No Description Price (each) Stock
470853231 MUD WING COMPENSATION PLATE $31.74 To Order
470853232 MUD WING COMPENSATION PLATE $31.74 To Order
Photo Part No Description Price (each) Stock
470821141 MUD WING COMPENSATION PLATE $864.24 To Order
470821142 MUD WING COMPENSATION PLATE $864.24 To Order
Photo Part No Description Price (each) Stock
470857289A MUD WING COMPENSATION PLATE $297.06 To Order
470857290A MUD WING COMPENSATION PLATE $297.06 To Order
Photo Part No Description Price (each) Stock
470857371B CARRIER $34.29 To Order
470857372B CARRIER $34.29 To Order
Photo Part No Description Price (each) Stock
470857155B CARRIER $56.32 To Order
470857156B CARRIER $56.32 To Order
Photo Part No Description Price (each) Stock
470813755C MUD WING COMPENSATION PLATE $7.68 To Order
470813756C MUD WING COMPENSATION PLATE $7.68 To Order
Photo Part No Description Price (each) Stock
N10558102 SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD $4.38 IN STOCK
Photo Part No Description Price (each) Stock
N90688703 SPEED NUT $1.22 IN STOCK
Photo Part No Description Price (each) Stock
N10009507 HEXAGON HEAD BOLT (COMBI) $0.80 IN STOCK
Photo Part No Description Price (each) Stock
N90898101 OVAL HEXAGON SOCKET HEAD BOLT $2.29 IN STOCK
Photo Part No Description Price (each) Stock
470115627 STOP BUFFER $31.04 To Order
Photo Part No Description Price (each) Stock
410853809 MOUNTING BUFFER $42.61 To Order
Photo Part No Description Price (each) Stock
N01100518 HEXAGON NUT $3.98 To Order
Photo Part No Description Price (each) Stock
N10661002 HEX SOCKET OVAL HEAD COLLARED $0.76 IN STOCK
Photo Part No Description Price (each) Stock
470853647B BRACKET $22.79 To Order
470853648B BRACKET $22.79 To Order
Photo Part No Description Price (each) Stock
N90780903 OVAL HEXAGON SOCKET HEAD BOLT $0.98 IN STOCK
Photo Part No Description Price (each) Stock
N01166623 WASHER $1.23 IN STOCK
Photo Part No Description Price (each) Stock
475854965A LINING FOR FENDER $3,340.03 To Order
475854965B LINING FOR FENDER Enquire To Order
475854966A LINING FOR FENDER $3,340.03 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
N10405702 HEXAGON SOCKET HEAD BOLT $0.92 IN STOCK
Photo Part No Description Price (each) Stock
N10483102 HEX SOCKET HEAD BOLT (COMBI) $1.43 IN STOCK
Photo Part No Description Price (each) Stock
N91195701 SPEED NUT $3.24 IN STOCK
Photo Part No Description Price (each) Stock
8H0806221 COMPENSATING PIECE $11.16 To Order
Photo Part No Description Price (each) Stock
WHT006377 CONICAL SPRING $0.92 To Order
Photo Part No Description Price (each) Stock
470907449 PIN $33.74 To Order
Photo Part No Description Price (each) Stock
N90412601 SPEED NUT $1.32 To Order
Photo Part No Description Price (each) Stock
N90434905 HEX. NUT WITH WASHER $0.58 To Order
View All

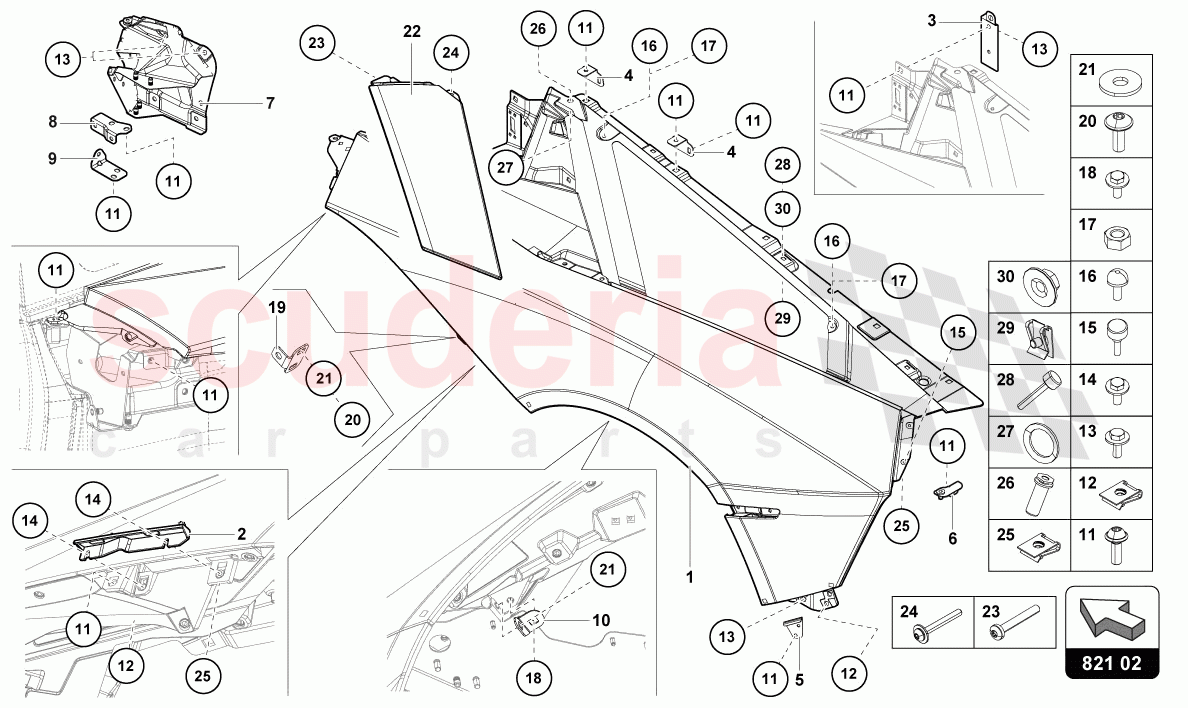

WING PROTECTOR REAR of Lamborghini Lamborghini Aventador LP780 Ultimae Roadster Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 470854959AC
LINING FOR FENDER
LEFT REAR 		$11,465.00 1
1 470854959ACGRU
LINING FOR FENDER
PRIMER 		- 1 Enquire
1 470854960AD
LINING FOR FENDER
RIGHT REAR 		$11,465.00 1
1 470854960ADGRU
LINING FOR FENDER
PRIMER 		- 1 Enquire
2 470853795A
SECURING BRACKET
LEFT 		$29.64 1
2 470853796A
SECURING BRACKET
RIGHT
IN STOCK 		$149.20 1
3 470853587B
MUD WING COMPENSATION PLATE
LEFT 		$25.15 1
3 470853588B
MUD WING COMPENSATION PLATE
RIGHT 		$25.15 1
4 470853945A
MUD WING COMPENSATION PLATE 		$15.87 6
5 470853231
MUD WING COMPENSATION PLATE
LEFT 		$31.74 1
5 470853232
MUD WING COMPENSATION PLATE
RIGHT 		$31.74 1
6 470821141
MUD WING COMPENSATION PLATE
LEFT 		$864.24 1
6 470821142
MUD WING COMPENSATION PLATE
RIGHT 		$864.24 1
7 470857289A
MUD WING COMPENSATION PLATE
LEFT 		$297.06 1
7 470857290A
MUD WING COMPENSATION PLATE
RIGHT 		$297.06 1
8 470857371B
CARRIER
LEFT 		$34.29 1
8 470857372B
CARRIER
RIGHT 		$34.29 1
9 470857155B
CARRIER
LEFT 		$56.32 1
9 470857156B
CARRIER
RIGHT 		$56.32 1
10 470813755C
MUD WING COMPENSATION PLATE
LEFT 		$7.68 1
10 470813756C
MUD WING COMPENSATION PLATE
RIGHT 		$7.68 1
11 N10558102
SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD
M6X18
IN STOCK 		$4.38 36
12 N90688703
SPEED NUT
M6X24X16
IN STOCK 		$1.22 6
13 N10009507
HEXAGON HEAD BOLT (COMBI)
M6X18
IN STOCK 		$0.80 (89% off) 4
14 N90898101
OVAL HEXAGON SOCKET HEAD BOLT
M6X14
IN STOCK 		$2.29 (67.3% off) 4
15 470115627
STOP BUFFER 		$31.04 4
16 410853809
MOUNTING BUFFER 		$42.61 4
17 N01100518
HEXAGON NUT
M5 		$3.98 4
18 N10661002
HEX SOCKET OVAL HEAD COLLARED
M6X20
IN STOCK 		$0.76 (89.5% off) 4
19 470853647B
BRACKET
LEFT 		$22.79 1
19 470853648B
BRACKET
RIGHT 		$22.79 1
20 N90780903
OVAL HEXAGON SOCKET HEAD BOLT
M6X16
IN STOCK 		$0.98 4
21 N01166623
WASHER
6 -4X18X1,6
IN STOCK 		$1.23 4
22 475854965A
LINING FOR FENDER
LEFT REAR 		$3,340.03 1
22 475854965B
LINING FOR FENDER
LEFT REAR 		- 1 Enquire
22 475854966A
LINING FOR FENDER
RIGHT REAR 		$3,340.03 1
22 475854966B
LINING FOR FENDER
RIGHT REAR 		- 1 Enquire
23 N10405702
HEXAGON SOCKET HEAD BOLT
M6X45
IN STOCK 		$0.92 2
24 N10483102
HEX SOCKET HEAD BOLT (COMBI)
M6X50
IN STOCK 		$1.43 (80% off) 2
25 N91195701
SPEED NUT
M6X22X15
IN STOCK 		$3.24 8
26 8H0806221
COMPENSATING PIECE 		$11.16 2
27 WHT006377
CONICAL SPRING 		$0.92 2
28 470907449
PIN 		$33.74 4
29 N90412601
SPEED NUT
M5X19 -9X15 		$1.32 4
30 N90434905
HEX. NUT WITH WASHER
M5 		$0.58 4
