SHOCK ABSORBERS REAR of Lamborghini Lamborghini Aventador LP780 Ultimae Roadster

View All

Lamborghini Aventador LP780 Ultimae Roadster - SHOCK ABSORBERS REAR (512.01.00)

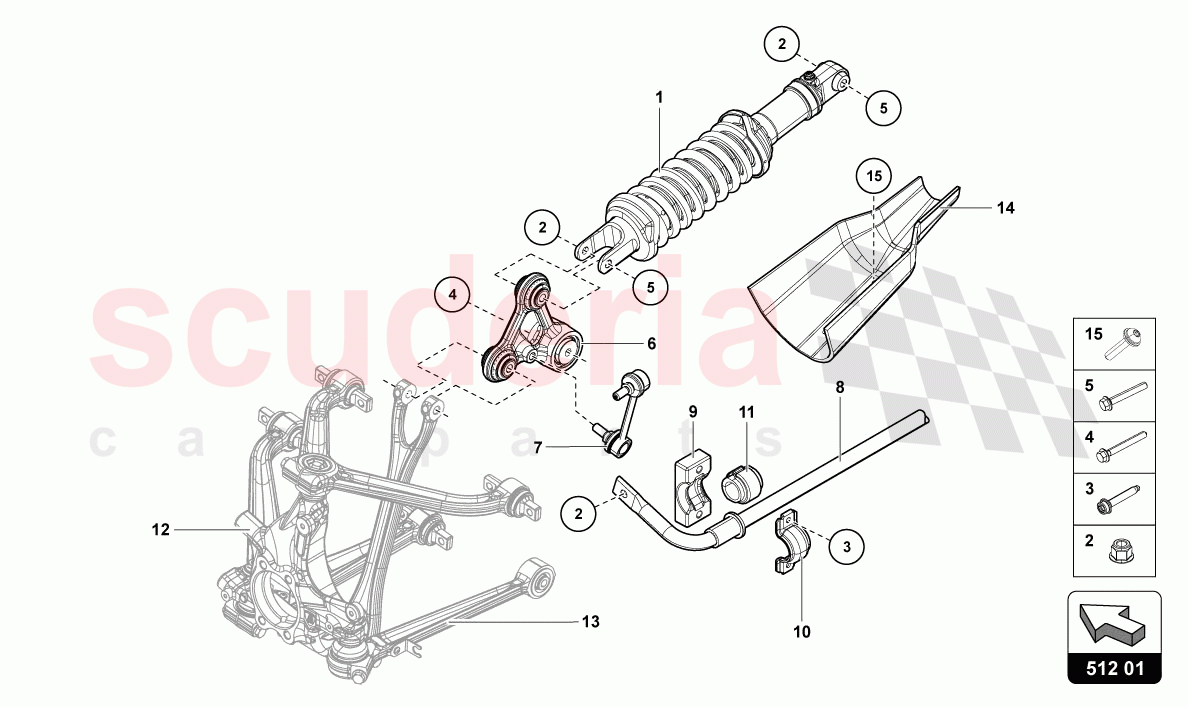

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	470512019AL	SHOCK ABSORBERS	Enquire	To Order
	470512019AN	SHOCK ABSORBERS	Enquire	To Order
	470512019AQ	SHOCK ABSORBERS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N10106402	HEXAGON COLLAR NUT SELF-LOCKING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N10682501	SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N10640301	HEX COLLARED BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N10428002	HEX COLLARED BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	470513127	OUTRIGGER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	470505465C	COUPLING ROD	Enquire	To Order
	470505466C	COUPLING ROD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	470511409K	ANTI-ROLL BAR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	420411031A	ANTI-ROLL BAR BEARING BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4D0411336G	CLAMP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4D0411327J	RUBBER BUSH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	470512575A	HEAT INSULATION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N10714801	OVAL HEXAGON SOCKET HEAD BOLT	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	470512019AL	SHOCK ABSORBERS	470512019AL SHOCK ABSORBERS MAGNARIDE - BLACK SPRING-REAR BLACK	-	2	Enquire
1	470512019AN	SHOCK ABSORBERS	470512019AN SHOCK ABSORBERS MAGNARIDE - RED SPRING-REAR RED	-	2	Enquire
1	470512019AQ	SHOCK ABSORBERS	470512019AQ SHOCK ABSORBERS AMR - GREEN-REAR GREEN	-	2	Enquire
2	N10106402	HEXAGON COLLAR NUT SELF-LOCKING	N10106402 HEXAGON COLLAR NUT SELF-LOCKING M12X1 -5	-	6	Enquire
3	N10682501	SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD	N10682501 SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD M8X50	-	4	Enquire
4	N10640301	HEX COLLARED BOLT	N10640301 HEX COLLARED BOLT M12X1 -5X100	-	2	Enquire
5	N10428002	HEX COLLARED BOLT	N10428002 HEX COLLARED BOLT M12X1 -5X80	-	2	Enquire
6	470513127	OUTRIGGER	470513127 OUTRIGGER REAR	-	1	Enquire
7	470505465C	COUPLING ROD	470505465C COUPLING ROD LEFT	-	1	Enquire
7	470505466C	COUPLING ROD	470505466C COUPLING ROD RIGHT	-	1	Enquire
8	470511409K	ANTI-ROLL BAR	470511409K ANTI-ROLL BAR	-	1	Enquire
9	420411031A	ANTI-ROLL BAR BEARING BRACKET	420411031A ANTI-ROLL BAR BEARING BRACKET	-	2	Enquire
10	4D0411336G	CLAMP	4D0411336G CLAMP	-	2	Enquire
11	4D0411327J	RUBBER BUSH	4D0411327J RUBBER BUSH 29MM	-	2	Enquire
14	470512575A	HEAT INSULATION	470512575A HEAT INSULATION VALID ONLY FOR: INDIA - THAILAND, SOUTH AFRICA, TAIWAN, SINGAPORE, CHINA, BRAZIL, MEXICO, AUSTRALIA, AGCC,JAPAN, USA	-	1	Enquire
15	N10714801	OVAL HEXAGON SOCKET HEAD BOLT	N10714801 OVAL HEXAGON SOCKET HEAD BOLT M6X18	-	1	Enquire
