Silencer With Catalyst

Lamborghini Aventador LP780 Ultimae

Illustration Number: 253.03.00

Find Your Part

Lamborghini Aventador LP780 Ultimae - SILENCER WITH CATALYST (253.03.00)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
470251051AC SILENCER Enquire To Order
Photo Part No Description Price (each) Stock
470251051AD SILENCER Enquire To Order
Photo Part No Description Price (each) Stock
470825497 HEAT SHIELD Enquire To Order
Photo Part No Description Price (each) Stock
420251143 CLIP Enquire To Order
Photo Part No Description Price (each) Stock
7L0253144B BRACKET Enquire To Order
Photo Part No Description Price (each) Stock
420251305 RETAINER FOR EXHAUST SYSTEM Enquire To Order
Photo Part No Description Price (each) Stock
470253047 BRACKET Enquire To Order
470253048 BRACKET Enquire To Order
Photo Part No Description Price (each) Stock
470825709K HEAT SHIELD Enquire To Order
Photo Part No Description Price (each) Stock
470131849 VACUUM HOSE Enquire To Order
Photo Part No Description Price (each) Stock
470131850 VACUUM HOSE Enquire To Order
Photo Part No Description Price (each) Stock
470971796 BRACKET Enquire To Order
470971806A BRACKET Enquire To Order
Photo Part No Description Price (each) Stock
59906051A PRESSURE DIFFERENCE SENDER Enquire To Order
Photo Part No Description Price (each) Stock
WHT001942 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
N0195307 HEX COLLARED BOLT Enquire To Order
Photo Part No Description Price (each) Stock
N91021502 ROUND HD. SCREW Enquire To Order
Photo Part No Description Price (each) Stock
N01152721 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
N10711101 BOLT, HEX. HD. WITH SHAFT Enquire To Order
Photo Part No Description Price (each) Stock
3C0131483A SPRING BAND CLAMP Enquire To Order
Photo Part No Description Price (each) Stock
3C0131483 SPRING BAND CLAMP Enquire To Order
Photo Part No Description Price (each) Stock
470825613G HEAT SHIELD Enquire To Order
Photo Part No Description Price (each) Stock
N10637302 OVAL HEXAGON SOCKET HEAD BOLT Enquire To Order
Photo Part No Description Price (each) Stock
N10569501 ROUND-HEAD SCREW WITH INNER HEXAGON SOCKET HEAD Enquire To Order
View All

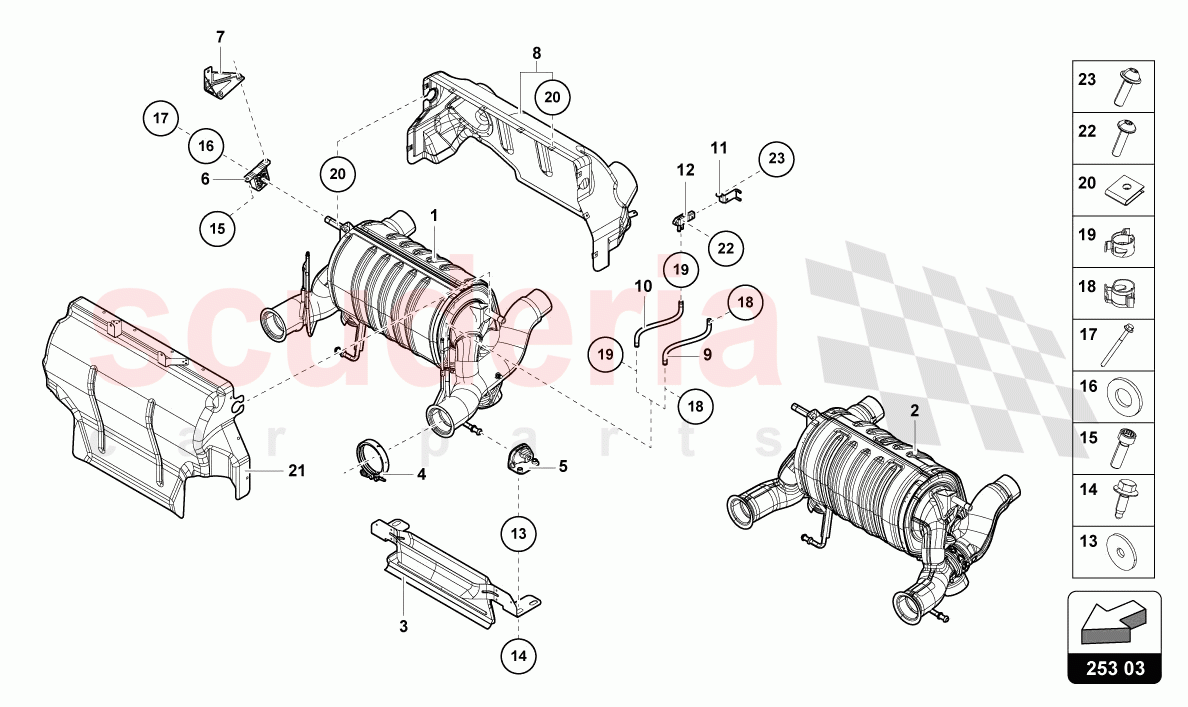

SILENCER WITH CATALYST of Lamborghini Lamborghini Aventador LP780 Ultimae Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 470251051AC
SILENCER
ONLY FOR CHINA AND JAPAN-6 CATALYSTS 		- 1 Enquire
2 470251051AD
SILENCER
NOT FOR CHINA - SEE REF. 1-4 CATALYSTS 		- 1 Enquire
3 470825497
HEAT SHIELD 		- 1 Enquire
4 420251143
CLIP 		- 2 Enquire
5 7L0253144B
BRACKET 		- 2 Enquire
6 420251305
RETAINER FOR EXHAUST SYSTEM 		- 2 Enquire
7 470253047
BRACKET
LEFT 		- 1 Enquire
7 470253048
BRACKET
RIGHT 		- 1 Enquire
8 470825709K
HEAT SHIELD 		- 1 Enquire
9 470131849
VACUUM HOSE 		- 1 Enquire
10 470131850
VACUUM HOSE 		- 1 Enquire
11 470971796
BRACKET
LEFT 		- 1 Enquire
11 470971806A
BRACKET
RIGHT 		- 1 Enquire
12 59906051A
PRESSURE DIFFERENCE SENDER 		- 2 Enquire
13 WHT001942
WASHER 		- 4 Enquire
14 N0195307
HEX COLLARED BOLT
M8X25 		- 4 Enquire
15 N91021502
ROUND HD. SCREW
M8X25 		- 8 Enquire
16 N01152721
WASHER 		- 2 Enquire
17 N10711101
BOLT, HEX. HD. WITH SHAFT
M10X125X90 		- 2 Enquire
18 3C0131483A
SPRING BAND CLAMP
13 -5X12 		- 2 Enquire
19 3C0131483
SPRING BAND CLAMP
11 -5X8,4 		- 2 Enquire
21 470825613G
HEAT SHIELD 		- 1 Enquire
22 N10637302
OVAL HEXAGON SOCKET HEAD BOLT
M5X20 		- 2 Enquire
23 N10569501
ROUND-HEAD SCREW WITH INNER HEXAGON SOCKET HEAD
M5X16 		- 2 Enquire
