Name: FLYWHEEL WITH CLUTCH
Rating: 4.4 (1 reviews)

Find Your Part

View All

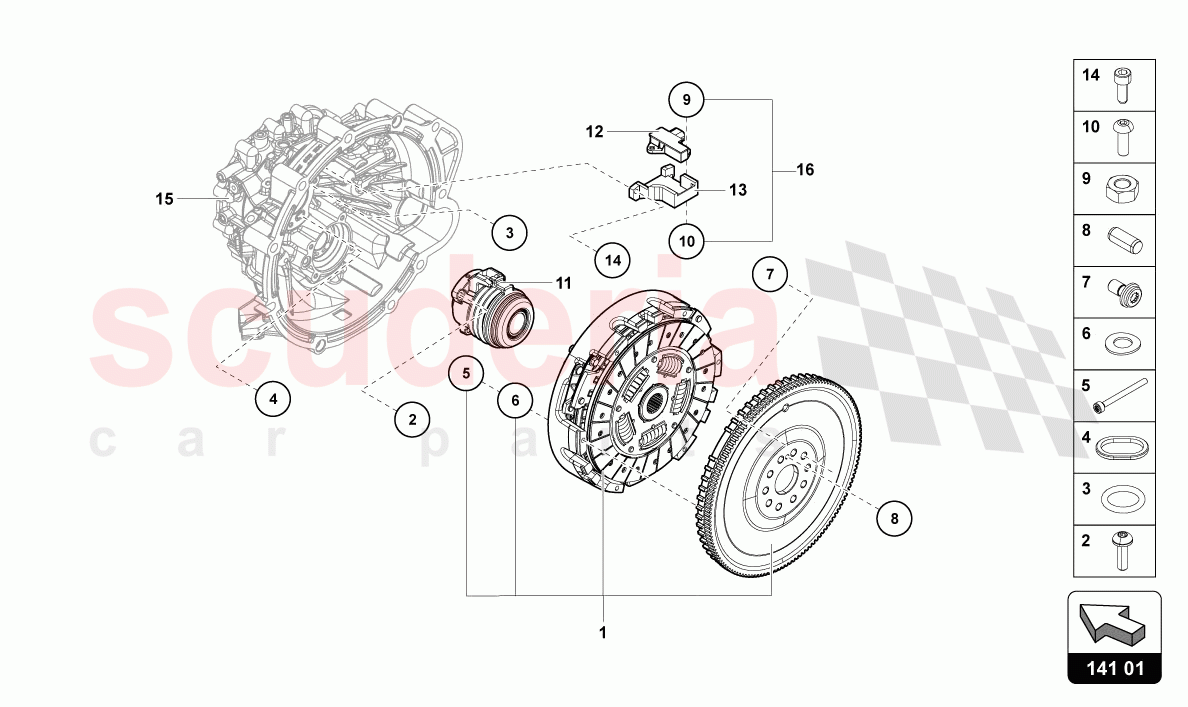

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	7M105269E	1 SET CLUTCH PARTS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N10124306	HEXAGON SOCKET FLAT HEAD BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	WHT002218	O-RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	86141131	O-RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N91157601	SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	WHT001197A	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	WHT000938A	SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N0131994	CYLINDER PIN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	CE141671A	RELEASE BEARING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	CE311675A	ULTRASOUND SENSOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	CE311594A	BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	470198030	LOCKING PIN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	470398008	1 SET OF ADJUSTING SCREWS (COMPLETE)	Enquire	To Order

View All

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	7M105269E	1 SET CLUTCH PARTS	7M105269E 1 SET CLUTCH PARTS	-	1	Enquire
2	N10124306	HEXAGON SOCKET FLAT HEAD BOLT	N10124306 HEXAGON SOCKET FLAT HEAD BOLT M6X20	-	3	Enquire
3	WHT002218	O-RING	WHT002218 O-RING 9 -25X1,78	-	1	Enquire
4	86141131	O-RING	86141131 O-RING 12 -42X1,78	-	1	Enquire
5	N91157601	SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD	N91157601 SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD M6X70	-	9	Enquire
6	WHT001197A	WASHER	WHT001197A WASHER 12X6 -4X0,5	-	9	Enquire
7	WHT000938A	SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD	WHT000938A SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD M10X1X19X11	-	10	Enquire
8	N0131994	CYLINDER PIN	N0131994 CYLINDER PIN 6X14	-	1	Enquire
11	CE141671A	RELEASE BEARING	CE141671A RELEASE BEARING	-	1	Enquire
12	CE311675A	ULTRASOUND SENSOR	CE311675A ULTRASOUND SENSOR	-	1	Enquire
13	CE311594A	BRACKET	CE311594A BRACKET	-	1	Enquire
14	470198030	LOCKING PIN	470198030 LOCKING PIN M6X16	-	2	Enquire
16	470398008	1 SET OF ADJUSTING SCREWS (COMPLETE)	470398008 1 SET OF ADJUSTING SCREWS (COMPLETE)	-	1	Enquire

Haven't found what you're looking for?

View Cart / Checkout

Flywheel With Clutch

Lamborghini Aventador LP780 Ultimae
