Name: VACUUM SYSTEM
Rating: 5.0 (1 reviews)

VACUUM SYSTEM of Lamborghini Lamborghini Aventador LP780 Ultimae

View All

Lamborghini Aventador LP780 Ultimae - VACUUM SYSTEM (131.02.00)

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	470131377F	VACUUM PIPE	$729.85	To Order

Photo	Part No	Description	Price (each)	Stock
	470131056A	VACUUM LINE	$48.38	To Order

Photo	Part No	Description	Price (each)	Stock
	470131459B	VACUUM LINE	$55.58	To Order

Photo	Part No	Description	Price (each)	Stock
	470131327	MOUNTING BAR	$19.69	To Order

Photo	Part No	Description	Price (each)	Stock
	420131541	VACUUM RESERVOIR	$60.01	To Order

Photo	Part No	Description	Price (each)	Stock
	470131375B	VACUUM PIPE	$434.16	To Order

Photo	Part No	Description	Price (each)	Stock
	420201449	SECURING CLIP	$69.35	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	470131386C	VACUUM PIPE	$1,341.40	To Order

Photo	Part No	Description	Price (each)	Stock
	N10201901	CLAMP	$2.02	To Order

Photo	Part No	Description	Price (each)	Stock
	8D0611797D	BRACKET	$5.79	To Order

Photo	Part No	Description	Price (each)	Stock
	470131429A	BRACKET	$40.06	To Order

Photo	Part No	Description	Price (each)	Stock
	470611908	VACUUM LINE	$53.23	To Order

Photo	Part No	Description	Price (each)	Stock
	470611929	VACUUM LINE	$65.65	To Order

Photo	Part No	Description	Price (each)	Stock
	N91096701	OVAL HEXAGON SOCKET HEAD BOLT	$1.63	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	N10416402	BRACKET	$2.35	To Order

Photo	Part No	Description	Price (each)	Stock
	N90939303	HEXAGON SOCKET OVAL HEAD BOLT (COMBI), SELF-LOCKING	$2.08	To Order

Photo	Part No	Description	Price (each)	Stock
	4F0131541A	VACUUM RESERVOIR	$31.74	To Order

Photo	Part No	Description	Price (each)	Stock
	N01508210	HEXAGON COLLAR NUT	$1.96	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	37906283C	SOLENOID VALVE	$122.44	To Order

Photo	Part No	Description	Price (each)	Stock
	470809163B	RETAINER FOR VACUUM CONTAINER	$50.50	To Order

Photo	Part No	Description	Price (each)	Stock
	470131340C	CARRIER	$45.32	To Order

Photo	Part No	Description	Price (each)	Stock
	470253729B	CONNECTING PIECE	$4.10	To Order

Photo	Part No	Description	Price (each)	Stock
	N10196901	CLAMP	$1.07	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	N91171101	CLAMP	$3.77	To Order

Photo	Part No	Description	Price (each)	Stock
	N01508213	HEXAGON COLLAR NUT	$0.21	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	N10562301	CABLE TIES	$1.32	To Order

View All

Diagram Tap to enlarge

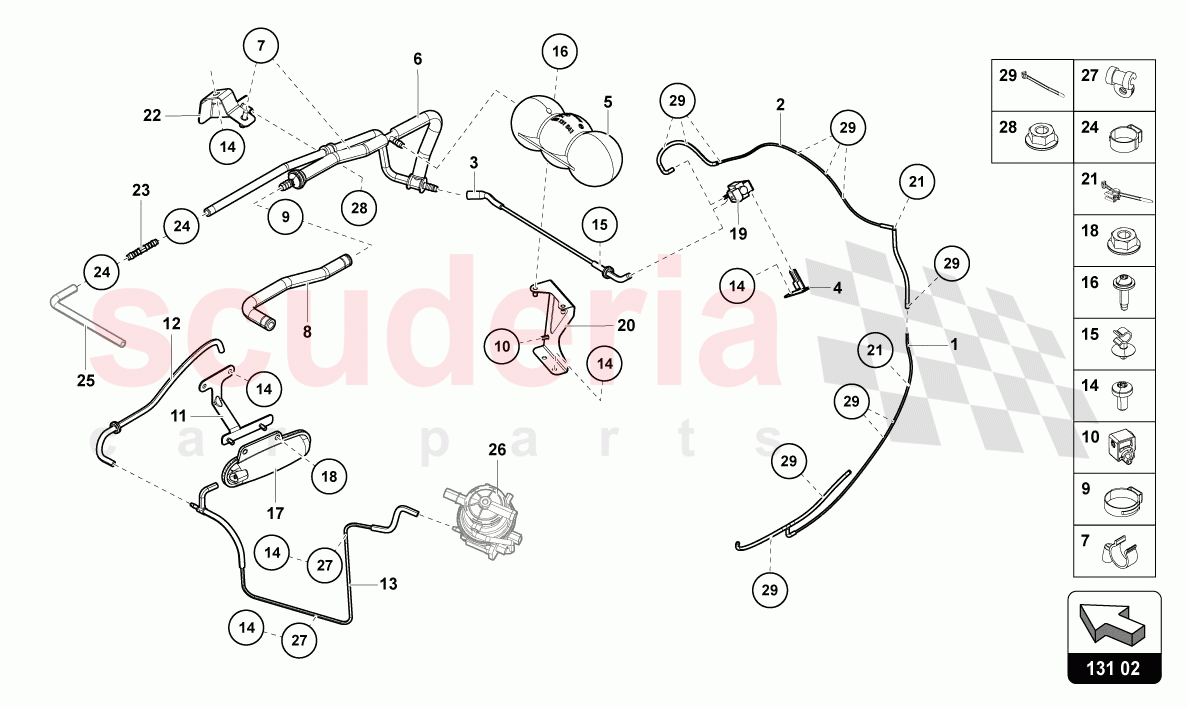

Vacuum System

Lamborghini Aventador LP780 Ultimae

Illustration Number: 131.02.00

Lamborghini Aventador LP780 Ultimae - VACUUM SYSTEM (131.02.00)

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
-	470298019	REPAIR SET	470298019 REPAIR SET ROBUSTNESS PACK	$830.23 MSRP: ~~974.00~~ (14.8% off)	1
1	470131377F	VACUUM PIPE	470131377F VACUUM PIPE	$729.85	1
2	470131056A	VACUUM LINE	470131056A VACUUM LINE	$48.38	1
3	470131459B	VACUUM LINE	470131459B VACUUM LINE	$55.58	1
4	470131327	MOUNTING BAR	470131327 MOUNTING BAR	$19.69	1
5	420131541	VACUUM RESERVOIR	420131541 VACUUM RESERVOIR	$60.01	1
6	470131375B	VACUUM PIPE	470131375B VACUUM PIPE	$434.16	1
7	420201449	SECURING CLIP IN STOCK	420201449 SECURING CLIP IN STOCK	$69.35	1
8	470131386C	VACUUM PIPE	470131386C VACUUM PIPE	$1,341.40	1
9	N10201901	CLAMP	N10201901 CLAMP 22 -6X7X0,60	$2.02 MSRP: ~~7.10~~ (71.5% off)	2
10	8D0611797D	BRACKET	8D0611797D BRACKET	$5.79	1
11	470131429A	BRACKET	470131429A BRACKET	$40.06	1
12	470611908	VACUUM LINE	470611908 VACUUM LINE	$53.23	1
13	470611929	VACUUM LINE	470611929 VACUUM LINE	$65.65	1
14	N91096701	OVAL HEXAGON SOCKET HEAD BOLT IN STOCK	N91096701 OVAL HEXAGON SOCKET HEAD BOLT M6X16 IN STOCK	$1.63	14
15	N10416402	BRACKET	N10416402 BRACKET 8X13	$2.35 MSRP: ~~7.03~~ (66.6% off)	1
16	N90939303	HEXAGON SOCKET OVAL HEAD BOLT (COMBI), SELF-LOCKING	N90939303 HEXAGON SOCKET OVAL HEAD BOLT (COMBI), SELF-LOCKING M5X20	$2.08 MSRP: ~~7.30~~ (71.5% off)	2
17	4F0131541A	VACUUM RESERVOIR	4F0131541A VACUUM RESERVOIR	$31.74	1
18	N01508210	HEXAGON COLLAR NUT IN STOCK	N01508210 HEXAGON COLLAR NUT M6 IN STOCK	$1.96	2
19	37906283C	SOLENOID VALVE	37906283C SOLENOID VALVE BLACK	$122.44	1
20	470809163B	RETAINER FOR VACUUM CONTAINER	470809163B RETAINER FOR VACUUM CONTAINER	$50.50	1
22	470131340C	CARRIER	470131340C CARRIER	$45.32	1
23	470253729B	CONNECTING PIECE	470253729B CONNECTING PIECE	$4.10 MSRP: ~~7.03~~ (41.7% off)	1
24	N10196901	CLAMP IN STOCK	N10196901 CLAMP IN STOCK	$1.07 MSRP: ~~7.23~~ (85.2% off)	2
27	N91171101	CLAMP	N91171101 CLAMP 1-6X15	$3.77	2
28	N01508213	HEXAGON COLLAR NUT IN STOCK	N01508213 HEXAGON COLLAR NUT M6 IN STOCK	$0.21	1
29	N10562301	CABLE TIES	N10562301 CABLE TIES 4 -7X194	$1.32 MSRP: ~~7.18~~ (81.6% off)	11
