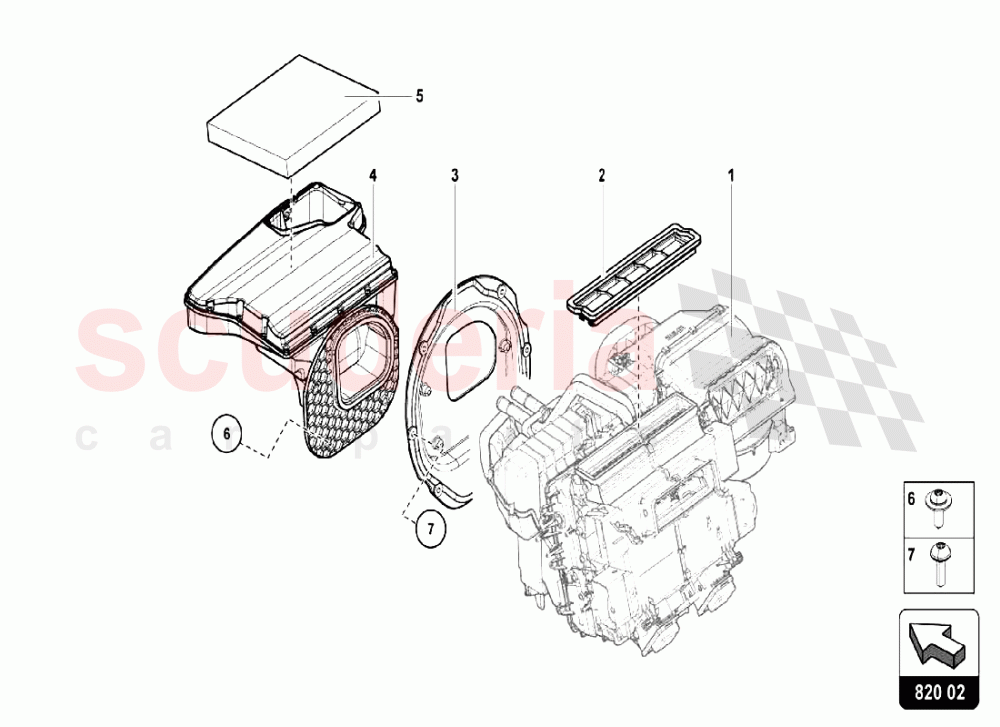

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
002	470819655	AIR GUIDE CHANNEL	470819655 AIR GUIDE CHANNEL	$62.18	1
003	472805288	BRACKET	472805288 BRACKET	$528.24	1
004	472820153A	Intake Duct ( Rhd)	472820153A Intake Duct ( Rhd)	$379.04	1
005	6Q0819653B	FILTER INSERT WITH ODOUR AND HARMFUL SUBSTANCE FILTERING IN STOCK	6Q0819653B FILTER INSERT WITH ODOUR AND HARMFUL SUBSTANCE FILTERING IN STOCK	$61.02	1
006	N10738101	HEX SOCKET HEAD BOLT (COMBI) IN STOCK	N10738101 HEX SOCKET HEAD BOLT (COMBI) IN STOCK	$0.88	4
007	N91032702	ROUND-HEAD SCREW WITH INNER HEXAGON SOCKET HEAD IN STOCK	N91032702 ROUND-HEAD SCREW WITH INNER HEXAGON SOCKET HEAD IN STOCK	$1.68	6
010	472857257A	BRACKET	472857257A BRACKET	$34.08	1
011	N90808203	HEXAGON SOCKET HEAD PANEL BOLT IN STOCK	N90808203 HEXAGON SOCKET HEAD PANEL BOLT IN STOCK	$0.58 MSRP: ~~7.30~~ (92.1% off)	1
012	N10738101	HEX SOCKET HEAD BOLT (COMBI) IN STOCK	N10738101 HEX SOCKET HEAD BOLT (COMBI) IN STOCK	$0.88	2
015	472260113A	WATER DRAINAGE HOSE	472260113A WATER DRAINAGE HOSE	$50.26	1
016	470817065	BUNGS	470817065 BUNGS	$11.04	1
017	470817064A	BUNGS	470817064A BUNGS	$11.04	1
018	470804315A	BRACKET	470804315A BRACKET	$15.20	1
019	N10586401	OVAL HEXAGON SOCKET HEAD BOLT IN STOCK	N10586401 OVAL HEXAGON SOCKET HEAD BOLT IN STOCK	$0.95	1
020	N90356204	SPEED NUT IN STOCK	N90356204 SPEED NUT IN STOCK	$0.68 MSRP: ~~7.29~~ (90.7% off)	1
021	N91123101	BELT RIVET IN STOCK	N91123101 BELT RIVET IN STOCK	$0.76 MSRP: ~~7.28~~ (89.6% off)	2
