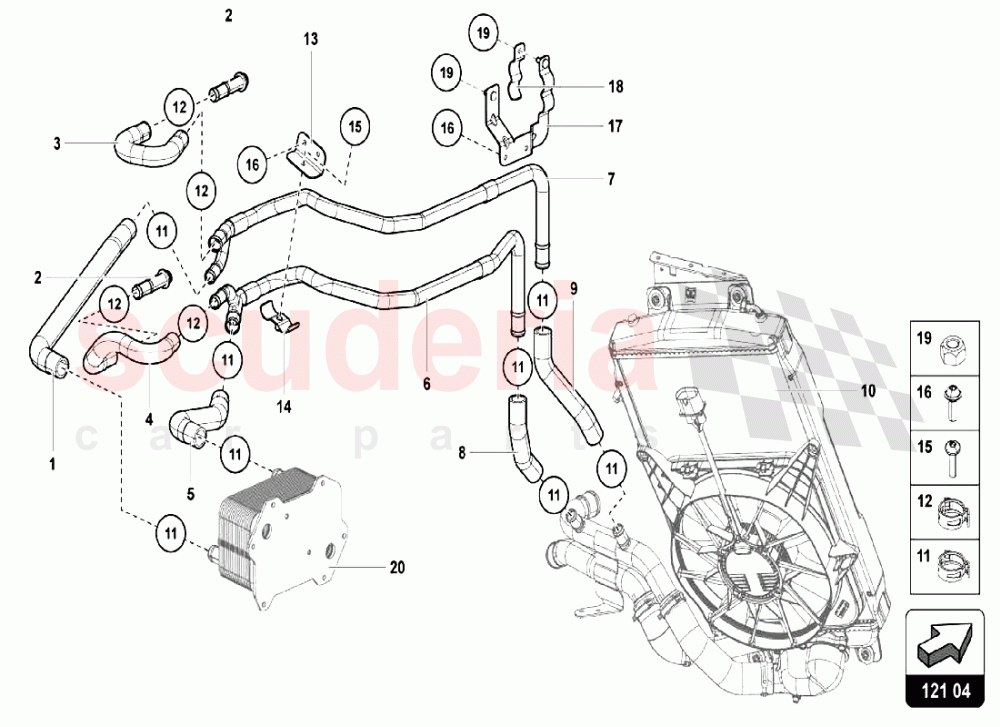

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
001	470121491B	Return Pipe	470121491B Return Pipe	$76.35	1
002	7M121131	HOSE CONNECTOR	7M121131 HOSE CONNECTOR	$52.91	2
003	470121500A	Return Pipe	470121500A Return Pipe	$46.98	1
004	470121106A	Coolant Hose	470121106A Coolant Hose	$56.87	1
005	470121447A	Coolant Hose	470121447A Coolant Hose	$53.71	1
006	470121071A	Coolant Hose	470121071A Coolant Hose	$189.54	1
007	470121194A	COOLANT HOSE	470121194A COOLANT HOSE	$1,240.58	1
008	470121516A	Coolant Hose	470121516A Coolant Hose	$145.17	1
009	470121130A	Coolant Hose	470121130A Coolant Hose	$33.43	1
011	N90687001	SPRING BAND CLAMP IN STOCK	N90687001 SPRING BAND CLAMP IN STOCK	$7.56	8
012	N90686901	SPRING BAND CLAMP IN STOCK	N90686901 SPRING BAND CLAMP IN STOCK	$0.94	4
013	470121724A	Bracket For Coolant Pipe (rear)	470121724A Bracket For Coolant Pipe (rear)	$11.63	1
014	470121660A	BRACKET FOR COOLANT PIPE	470121660A BRACKET FOR COOLANT PIPE	$12.17	1
016	N10558102	SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD IN STOCK	N10558102 SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD IN STOCK	$4.38	4
017	470121079C	BRACKET FOR COOLANT PIPE	470121079C BRACKET FOR COOLANT PIPE	$50.95	1
018	470121527A	BRACKET FOR COOLANT PIPE	470121527A BRACKET FOR COOLANT PIPE	$27.56	1
019	N02214812	HEXAGON NUT, SELF-LOCKING	N02214812 HEXAGON NUT, SELF-LOCKING	$1.96 MSRP: ~~7.29~~ (73.1% off)	2
