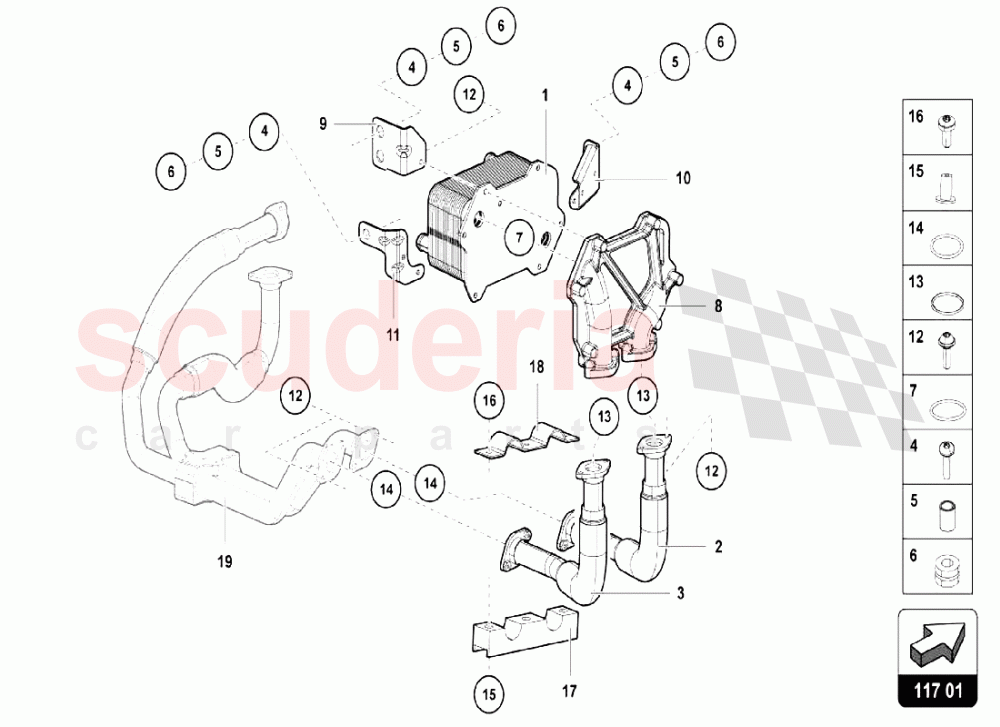

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	420117022A	OIL COOLER IN STOCK	420117022A OIL COOLER IN STOCK	-	1	Enquire
002	470115663B	OIL HOSE	470115663B OIL HOSE	-	1	Enquire
003	470115229A	OIL HOSE	470115229A OIL HOSE	-	1	Enquire
004	N90969901	HEX SOCKET HEAD LOCATING BOLT IN STOCK	N90969901 HEX SOCKET HEAD LOCATING BOLT IN STOCK	-	3	Enquire
005	400121129A	SPACER HOLDER	400121129A SPACER HOLDER	-	5	Enquire
006	7M121585	VIBRATION DAMPER	7M121585 VIBRATION DAMPER	-	2	Enquire
007	WHT003368A	O-RING IN STOCK	WHT003368A O-RING IN STOCK	-	2	Enquire
008	470117187A	RETAINER FOR OIL COOLER	470117187A RETAINER FOR OIL COOLER	-	1	Enquire
009	470117190	RETAINER FOR OIL COOLER	470117190 RETAINER FOR OIL COOLER	-	1	Enquire
010	470117098A	RETAINER FOR OIL COOLER	470117098A RETAINER FOR OIL COOLER	-	1	Enquire
011	470117097	RETAINER FOR OIL COOLER	470117097 RETAINER FOR OIL COOLER	-	1	Enquire
012	N10558102	SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD IN STOCK	N10558102 SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD IN STOCK	-	14	Enquire
013	WHT007432	O-RING IN STOCK	WHT007432 O-RING IN STOCK	-	2	Enquire
014	WHT004894	SEAL RING IN STOCK	WHT004894 SEAL RING IN STOCK	-	2	Enquire
015	470115621	GROMMET	470115621 GROMMET	-	3	Enquire
016	N10405604	OVAL HEXAGON SOCKET HEAD BOLT IN STOCK	N10405604 OVAL HEXAGON SOCKET HEAD BOLT IN STOCK	-	3	Enquire
017	470115242	BRACKET	470115242 BRACKET	-	1	Enquire
018	470117150A	BRACKET	470117150A BRACKET	-	1	Enquire
