DASHBOARD 3 of Lamborghini Lamborghini Aventador LP720 Roadster

View All

Lamborghini Aventador LP720 Roadster - DASHBOARD 3

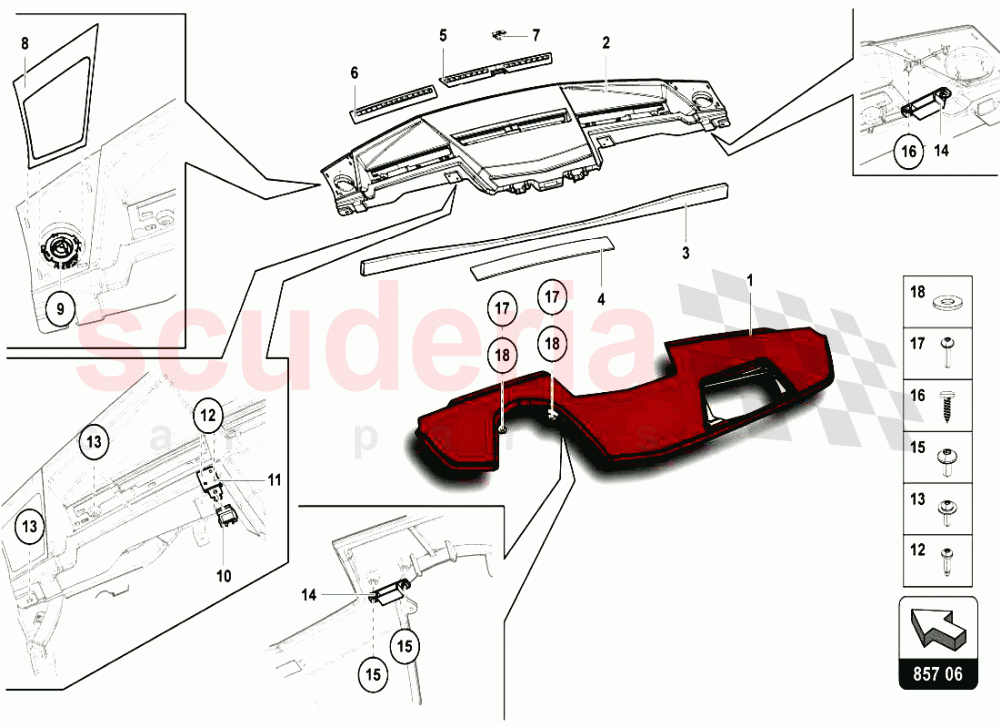

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	471857041C	LOWER DASHBOARD (FROM VIN ELA02657- LEATHER UPHOLSTERY -SUPPLY VIN)	471857041C LOWER DASHBOARD (FROM VIN ELA02657- LEATHER UPHOLSTERY -SUPPLY VIN)	-	1	Enquire
001	471857041B	LOWER DASHBOARD (UNTIL VIN ELA02656 - LEATHER UPHOLSTERY -	471857041B LOWER DASHBOARD (UNTIL VIN ELA02656 - LEATHER UPHOLSTERY -	-	1	Enquire
002	470858703A	TRIM DASHBOARD	470858703A TRIM DASHBOARD	-	1	Enquire
002	470858703B	TRIM DASHBOARD (PREMIUM SOUND SYS )	470858703B TRIM DASHBOARD (PREMIUM SOUND SYS )	-	1	Enquire
003	470819236	SHAPED PART (FOAM)	470819236 SHAPED PART (FOAM)	-	1	Enquire
004	400121539C	GASKET	400121539C GASKET	-	1	Enquire
005	470819635A	AIR VENT	470819635A AIR VENT	-	1	Enquire
006	470819793A	AIR INTAKE GRILLE	470819793A AIR INTAKE GRILLE	-	1	Enquire
006	470819794A	AIR INTAKE GRILLE	470819794A AIR INTAKE GRILLE	-	1	Enquire
007	8K0907539	SUN SENSOR	8K0907539 SUN SENSOR	-	1	Enquire
008	470035492C	COVER TWEETER RH (PREMIUM SOUND SYS)	470035492C COVER TWEETER RH (PREMIUM SOUND SYS)	-	1	Enquire
008	470035491B	COVER TWEETER LH	470035491B COVER TWEETER LH	-	1	Enquire
008	470035492B	COVER TWEETER RH	470035492B COVER TWEETER RH	-	1	Enquire
008	470035491C	COVER TWEETER LH (PREMIUM SOUND SYS)	470035491C COVER TWEETER LH (PREMIUM SOUND SYS)	-	1	Enquire
010	4D0857949A	GROMMET	4D0857949A GROMMET	-	2	Enquire
011	470858439	ANGLE BRACKET	470858439 ANGLE BRACKET	-	2	Enquire
012	N10595002	ROUND HD. SCREW	N10595002 ROUND HD. SCREW	-	4	Enquire
013	N10738101	HEX SOCKET HEAD BOLT (COMBI)	N10738101 HEX SOCKET HEAD BOLT (COMBI)	-	6	Enquire
014	470858571	BRACKET	470858571 BRACKET	-	4	Enquire
015	N10586401	OVAL HEXAGON SOCKET HEAD BOLT	N10586401 OVAL HEXAGON SOCKET HEAD BOLT	-	4	Enquire
016	N90632303	HEXAGON SOCKET HEAD PANEL BOLT	N90632303 HEXAGON SOCKET HEAD PANEL BOLT	-	4	Enquire
017	N10637302	OVAL HEXAGON SOCKET HEAD BOLT	N10637302 OVAL HEXAGON SOCKET HEAD BOLT	-	2	Enquire
018	WHT000778	WASHER	WHT000778 WASHER	-	2	Enquire
