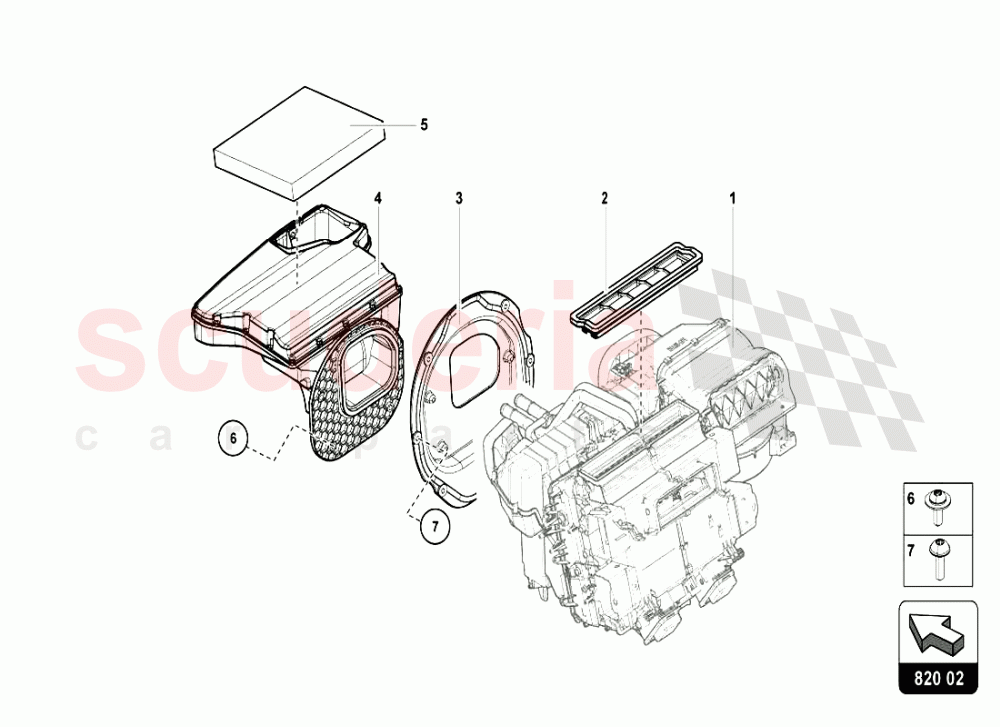

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
001	472820005	Air Conditioning ( Rhd)	472820005 Air Conditioning ( Rhd)	$23,655.85	1
001	471820005	AIR CONDITIONING	471820005 AIR CONDITIONING	$3,581.97	1
002	470819655	AIR GUIDE CHANNEL	470819655 AIR GUIDE CHANNEL	$62.18	1
003	472805288	BRACKET	472805288 BRACKET	$528.24	1
003	471805288	BRACKET	471805288 BRACKET LHD	$528.24	1
004	472820153A	Intake Duct ( Rhd)	472820153A Intake Duct ( Rhd) RHD	$379.04	1
004	471820153A	INTAKE DUCT	471820153A INTAKE DUCT LHD	$268.81	1
005	6Q0819653B	FILTER INSERT WITH ODOUR AND HARMFUL SUBSTANCE FILTERING IN STOCK	6Q0819653B FILTER INSERT WITH ODOUR AND HARMFUL SUBSTANCE FILTERING IN STOCK	$61.02	1
006	N10738101	HEX SOCKET HEAD BOLT (COMBI) IN STOCK	N10738101 HEX SOCKET HEAD BOLT (COMBI) IN STOCK	$0.88	4
007	N91032702	ROUND-HEAD SCREW WITH INNER HEXAGON SOCKET HEAD IN STOCK	N91032702 ROUND-HEAD SCREW WITH INNER HEXAGON SOCKET HEAD IN STOCK	$1.68	6
