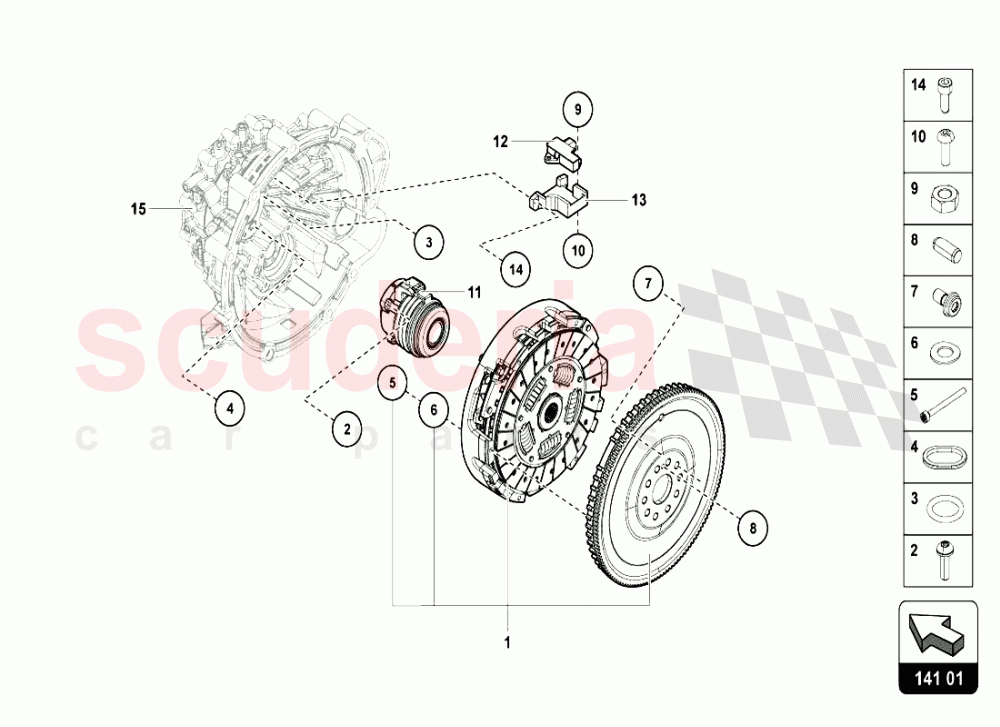

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	7M105269D	Flywheel	7M105269D Flywheel	-	1	Enquire
002	N10124306	HEXAGON SOCKET FLAT HEAD BOLT IN STOCK	N10124306 HEXAGON SOCKET FLAT HEAD BOLT IN STOCK	-	3	Enquire
003	WHT002218	O-RING IN STOCK	WHT002218 O-RING IN STOCK	-	1	Enquire
004	86141131	O-RING IN STOCK	86141131 O-RING IN STOCK	-	1	Enquire
005	N91157601	SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD IN STOCK	N91157601 SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD IN STOCK	-	9	Enquire
006	WHT001197A	WASHER IN STOCK	WHT001197A WASHER IN STOCK	-	9	Enquire
007	WHT000938	Screw M10 X 1 X 19 X 11 IN STOCK	WHT000938 Screw M10 X 1 X 19 X 11 IN STOCK	-	10	Enquire
008	N0131991	PIN IN STOCK	N0131991 PIN IN STOCK	-	1	Enquire
011	CE141671A	RELEASE BEARING IN STOCK	CE141671A RELEASE BEARING IN STOCK	-	1	Enquire
012	CE311675A	ULTRASOUND SENSOR IN STOCK	CE311675A ULTRASOUND SENSOR IN STOCK	-	1	Enquire
013	CE311594	SUPPORT	CE311594 SUPPORT	-	1	Enquire
014	470198030	LOCKING PIN IN STOCK	470198030 LOCKING PIN IN STOCK	-	2	Enquire
