Lamborghini Aventador LP720 Coupe - TRIMS AND SOUNDPROOFING

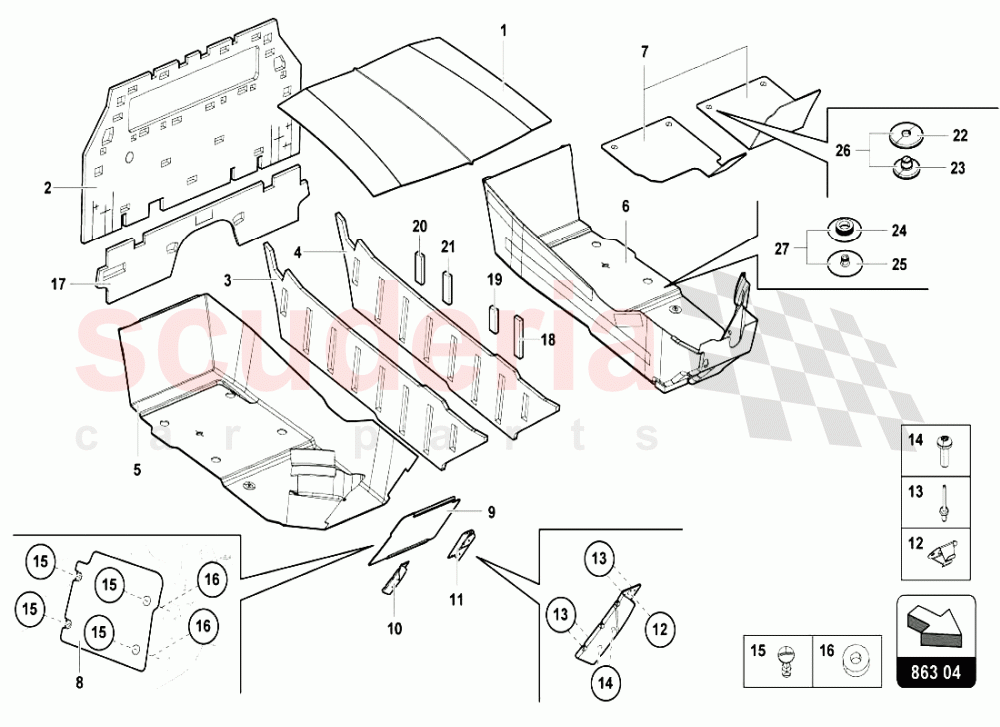

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	476867801A	SOUNDPROOFING MATERIAL	476867801A SOUNDPROOFING MATERIAL	-	1	Enquire
001	476867505C	ROOF LINER (ELEGANTE PLUS VERSION - SUPPLY VIN)	476867505C ROOF LINER (ELEGANTE PLUS VERSION - SUPPLY VIN)	-	1	Enquire
001	476867505B	Moulded Headliner (leather Upholstery - Supply Vin)	476867505B Moulded Headliner (leather Upholstery - Supply Vin)	-	1	Enquire
001	476867505G	Moulded Headliner (leather Upholstery Q-citura - Supply Vin)	476867505G Moulded Headliner (leather Upholstery Q-citura - Supply Vin)	-	1	Enquire
001	476867505F	Moulded Headliner (alcantara Interior - Supply Vin)	476867505F Moulded Headliner (alcantara Interior - Supply Vin)	-	1	Enquire
003	470864954A	DAMPING	470864954A DAMPING	-	1	Enquire
004	470864953A	DAMPING	470864953A DAMPING	-	1	Enquire
005	472863368D	RH Floor Covering	472863368D RH Floor Covering RHD	-	1	Enquire
005	471863368F	RH PLATFORM COVERING PANEL (FROM VIN ELA02667)	471863368F RH PLATFORM COVERING PANEL (FROM VIN ELA02667) LHD	-	1	Enquire
005	471863368D	RH PLATFORM COVERING PANEL (UNTIL THE VIN ELA02666)	471863368D RH PLATFORM COVERING PANEL (UNTIL THE VIN ELA02666) LHD	-	1	Enquire
005	471863368G	RH PLATFORM COVERING PANEL (NEWSPAPERS NET- WARNING UP	471863368G RH PLATFORM COVERING PANEL (NEWSPAPERS NET- WARNING UP LHD	-	1	Enquire
006	472863367D	LH Floor Covering	472863367D LH Floor Covering RHD	-	1	Enquire
006	471863367E	LH PLATFORM COVERING PANEL (FROM VIN ELA02667)	471863367E LH PLATFORM COVERING PANEL (FROM VIN ELA02667) LHD	-	1	Enquire
006	471863367D	LH PLATFORM COVERING PANEL (UNTIL THE VIN ELA02666)	471863367D LH PLATFORM COVERING PANEL (UNTIL THE VIN ELA02666) LHD	-	1	Enquire
007	471863691	1 SET FOOT MATS (UNTIL THE VIN ELA02666-SUPPLY VIN)	471863691 1 SET FOOT MATS (UNTIL THE VIN ELA02666-SUPPLY VIN) LHD	-	1	Enquire
007	472863691A	1 SET FOOT MATS	472863691A 1 SET FOOT MATS	-	1	Enquire
007	472863691	1 SET FOOT MATS (UNTIL THE VIN ELA02666-SUPPLY VIN)	472863691 1 SET FOOT MATS (UNTIL THE VIN ELA02666-SUPPLY VIN) RHD	-	1	Enquire
007	471863691A	1 SET FOOT MATS	471863691A 1 SET FOOT MATS LHD	-	1	Enquire
008	471864420A	FOOT REST	471864420A FOOT REST	-	1	Enquire
009	471864463	FLOORING	471864463 FLOORING	-	1	Enquire
010	471864781	BRACKET FOR FOOTREST	471864781 BRACKET FOR FOOTREST	-	1	Enquire
011	471864782	BRACKET FOR FOOTREST	471864782 BRACKET FOR FOOTREST	-	1	Enquire
012	470864994	CLIP	470864994 CLIP	-	4	Enquire
013	N90931101	POP RIVET	N90931101 POP RIVET	-	8	Enquire
014	N10196103	OVAL SOCKET HEAD BOLT WITH HEX DRIVE	N10196103 OVAL SOCKET HEAD BOLT WITH HEX DRIVE	-	4	Enquire
015	8D0805121	GRIP PIN	8D0805121 GRIP PIN	-	4	Enquire
016	4A0805137A	RETAINING WASHER	4A0805137A RETAINING WASHER	-	4	Enquire
018	470864240D	INSULATING PIECE	470864240D INSULATING PIECE	-	2	Enquire
019	470864240E	INSULATING PIECE	470864240E INSULATING PIECE	-	6	Enquire
020	470864240F	INSULATING PIECE	470864240F INSULATING PIECE	-	8	Enquire
022	3C0864521	COVER CAP	3C0864521 COVER CAP	-	4	Enquire
023	3C0864523	BRACKET	3C0864523 BRACKET	-	4	Enquire
024	8E0864229	COVER CAP	8E0864229 COVER CAP	-	4	Enquire
025	8E0864227	BRACKET	8E0864227 BRACKET	-	4	Enquire
026	470898131	KIT MATS CLIPS (UNTIL THE VIN ELA02666)	470898131 KIT MATS CLIPS (UNTIL THE VIN ELA02666)	-	4	Enquire
027	470898131A	KIT PLATFORM COVERING PANEL CLIPS (UNTIL THE VIN ELA02666)	470898131A KIT PLATFORM COVERING PANEL CLIPS (UNTIL THE VIN ELA02666)	-	4	Enquire
