Lamborghini Aventador LP700 Roadster - SEATS

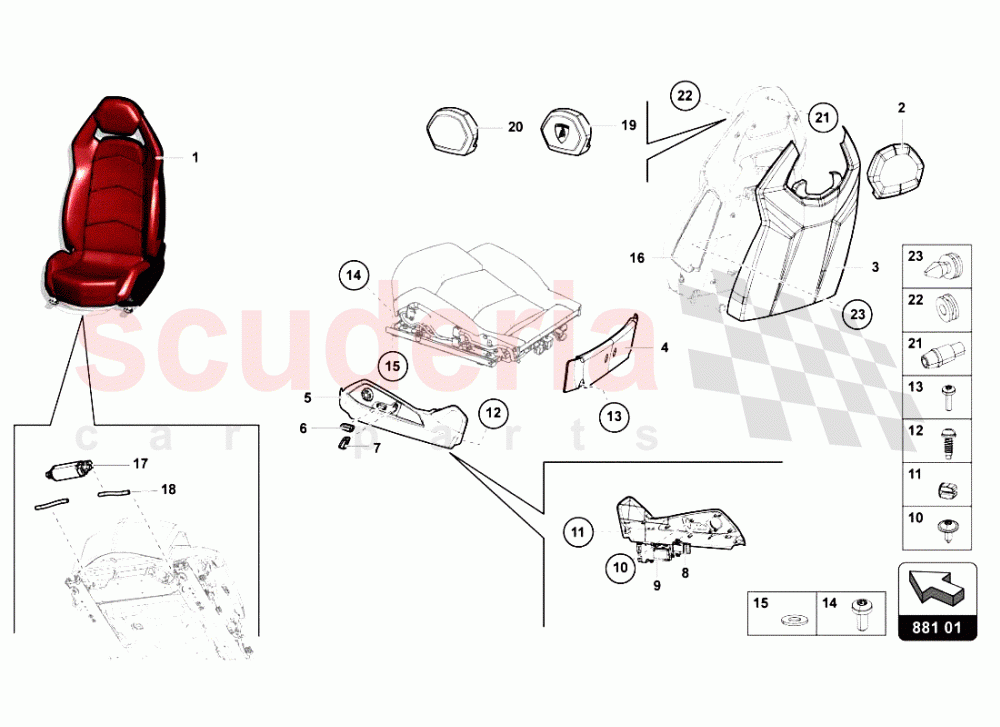

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
001	470881004A	COMPLETE SEAT WITH BACKREST AND HEADREST, ELECTRICALLY ADJUSTABLE	470881004A COMPLETE SEAT WITH BACKREST AND HEADREST, ELECTRICALLY ADJUSTABLE	$15,174.70	1
001	470881003A	COMPLETE SEAT WITH BACKREST AND HEADREST, ELECTRICALLY ADJUSTABLE	470881003A COMPLETE SEAT WITH BACKREST AND HEADREST, ELECTRICALLY ADJUSTABLE	$15,174.70	1
001	470881003	COMPLETE SEAT WITH BACKREST AND HEADREST, MECHANICALLY ADJUSTABLE	470881003 COMPLETE SEAT WITH BACKREST AND HEADREST, MECHANICALLY ADJUSTABLE	$12,069.86	1
001	470881004	COMPLETE SEAT WITH BACKREST AND HEADREST, MECHANICALLY ADJUSTABLE	470881004 COMPLETE SEAT WITH BACKREST AND HEADREST, MECHANICALLY ADJUSTABLE	$12,069.86	1
002	470881152	HEAD RESTRAINT COVER	470881152 HEAD RESTRAINT COVER	$178.78	2
002	470881152A	HEAD RESTRAINT COVER	470881152A HEAD RESTRAINT COVER	$2,056.46	2
003	470881463B	TRIM PANEL FOR BAKREST LEFT	470881463B TRIM PANEL FOR BAKREST LEFT	$693.54	1
003	470881464D	TRIM PANEL FOR BAKREST RIGHT (CARBON INTERIOR )	470881464D TRIM PANEL FOR BAKREST RIGHT (CARBON INTERIOR )	$6,901.87	1
003	470881464C	TRIM PANEL FOR BAKREST RIGHT	470881464C TRIM PANEL FOR BAKREST RIGHT	$693.54	1
003	470881463C	TRIM PANEL FOR BAKREST LEFT (CARBON INTERIOR )	470881463C TRIM PANEL FOR BAKREST LEFT (CARBON INTERIOR )	$6,901.87	1
004	470881087A	COVER	470881087A COVER	$52.98	2
005	470881097	Lh Manual Seat Carter (until The Vin Dla01423)	470881097 Lh Manual Seat Carter (until The Vin Dla01423)	$388.45	1
005	470881097F	LH MANUAL SEAT CARTER (FROM VIN DLA01424 )	470881097F LH MANUAL SEAT CARTER (FROM VIN DLA01424 )	$446.23	1
005	470881098H	RH POWER SEAT CARTER (FROM VIN DLA01420)	470881098H RH POWER SEAT CARTER (FROM VIN DLA01420)	$444.90	1
005	470881098B	Rh Power Seat Carter (until The Vin Dla01419)	470881098B Rh Power Seat Carter (until The Vin Dla01419)	$469.08	1
005	470881097B	LH MANUAL SEAT CARTER (CARBON INTERIOR )	470881097B LH MANUAL SEAT CARTER (CARBON INTERIOR )	$3,904.57	1
005	470881098G	RH MANUAL SEAT CARTER (FROM VIN DLA01420)	470881098G RH MANUAL SEAT CARTER (FROM VIN DLA01420)	$444.90	1
005	470881098C	RH MANUAL SEAT CARTER (CARBON INTERIOR )	470881098C RH MANUAL SEAT CARTER (CARBON INTERIOR )	$3,904.57	1
005	470881098D	RH POWER SEAT CARTER (CARBON INTERIOR )	470881098D RH POWER SEAT CARTER (CARBON INTERIOR )	$3,837.35	1
005	470881097G	LH POWER SEAT CARTER (FROM VIN DLA01424 )	470881097G LH POWER SEAT CARTER (FROM VIN DLA01424 )	$446.23	1
005	470881098	Rh Manual Seat Carter (until The Vin Dla01419)	470881098 Rh Manual Seat Carter (until The Vin Dla01419)	$412.63	1
005	470881097C	LH POWER SEAT CARTER (CARBON INTERIOR )	470881097C LH POWER SEAT CARTER (CARBON INTERIOR )	$3,837.35	1
005	470881097A	Lh Power Seat Carter (until The Vin Dla01423)	470881097A Lh Power Seat Carter (until The Vin Dla01423)	$466.40	1
006	8K09598174PK	SETTING KNOB	8K09598174PK SETTING KNOB	$38.06	1
006	8K09598184PK	SETTING KNOB	8K09598184PK SETTING KNOB	$9.08	1
007	8K09598154PK	SETTING KNOB	8K09598154PK SETTING KNOB	$38.06	1
007	3C0959817	PUSHBUTTON CAP	3C0959817 PUSHBUTTON CAP	$229.18	1
007	3C0959818	PUSHBUTTON CAP	3C0959818 PUSHBUTTON CAP	$229.18	1
007	8K09598164PK	SETTING KNOB	8K09598164PK SETTING KNOB	$9.21	1
008	4H0959777A	SWITCH FOR LUMBAR SUPPORT ADJUSTMENT	4H0959777A SWITCH FOR LUMBAR SUPPORT ADJUSTMENT	$78.09	2
009	8K0959747	SWITCH FOR SEAT LONGITUDINAL- SEAT HEIGHT- SEAT RAKE AND BACKREST ADJUSTMENT	8K0959747 SWITCH FOR SEAT LONGITUDINAL- SEAT HEIGHT- SEAT RAKE AND BACKREST ADJUSTMENT	$143.17	1
009	8K0959748C	SWITCH FOR SEAT LONGITUDINAL- SEAT HEIGHT- SEAT RAKE AND BACKREST ADJUSTMENT	8K0959748C SWITCH FOR SEAT LONGITUDINAL- SEAT HEIGHT- SEAT RAKE AND BACKREST ADJUSTMENT	$133.18	1
009	1K0959778	SWITCH FOR BACKREST ADJUSTING	1K0959778 SWITCH FOR BACKREST ADJUSTING	$50.40	1
009	1K0959777	SWITCH FOR BACKREST ADJUSTING	1K0959777 SWITCH FOR BACKREST ADJUSTING	$50.40	1
010	N91136801	HEXAGON SOCKET HEAD PANEL BOLT IN STOCK	N91136801 HEXAGON SOCKET HEAD PANEL BOLT IN STOCK	$0.37	5
011	470881743	FASTENING CLIP	470881743 FASTENING CLIP	$3.98	4
012	N91049601	OVAL HEAD PANEL SCREW (COMBI) IN STOCK	N91049601 OVAL HEAD PANEL SCREW (COMBI) IN STOCK	$0.67 MSRP: ~~7.31~~ (90.8% off)	4
013	N10430103	HEXAGON SOCKET FLAT HEAD BOLT IN STOCK	N10430103 HEXAGON SOCKET FLAT HEAD BOLT IN STOCK	$0.80 MSRP: ~~7.30~~ (89% off)	4
014	N10578904	FLAT ROUND HEAD BOLT IN STOCK	N10578904 FLAT ROUND HEAD BOLT IN STOCK	$1.68 MSRP: ~~7.17~~ (76.6% off)	8
015	N01152721	WASHER IN STOCK	N01152721 WASHER IN STOCK	$1.63 MSRP: ~~7.12~~ (77.1% off)	8
017	470959245	MOTOR FOR LONGITUDINAL ADJUSTMENT	470959245 MOTOR FOR LONGITUDINAL ADJUSTMENT	$325.96	1
018	470881265	BOWDEN CABLE FOR SEAT HEIGHT ADJUSTMENT	470881265 BOWDEN CABLE FOR SEAT HEIGHT ADJUSTMENT	$149.20	2
019	470881901A	HEAD RESTRAINT WITH COVER	470881901A HEAD RESTRAINT WITH COVER	$900.55	2
020	470881901	HEAD RESTRAINT	470881901 HEAD RESTRAINT	$799.73	2
023	470898010	1 SET ATTACHMENT PARTS	470898010 1 SET ATTACHMENT PARTS	$164.00	1
