Intake Manifold 1 of Lamborghini Lamborghini Aventador LP700 Coupe

View All

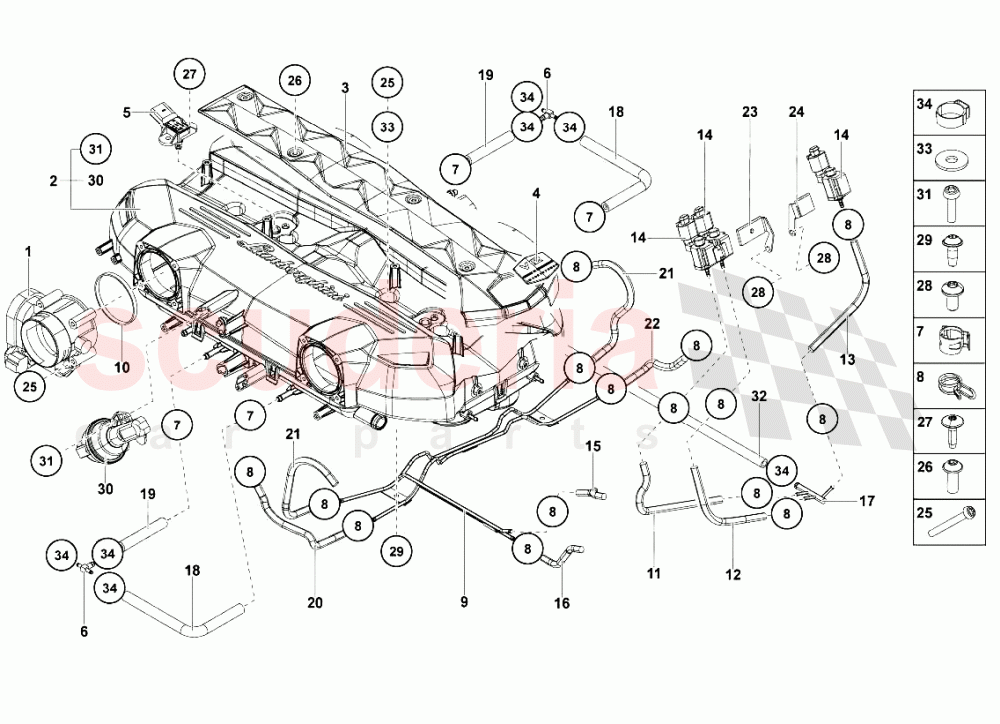

Lamborghini Aventador LP700 Coupe - Intake Manifold 1

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	7C133062C	THROTTLE VALVE IN STOCK	7C133062C THROTTLE VALVE IN STOCK	$1,127.29	4
002	7M133433K	Intake Manifold Upper Part	7M133433K Intake Manifold Upper Part	-	1	Enquire
002	7M133433M	INTAKE MANIFOLD UPPER PART	7M133433M INTAKE MANIFOLD UPPER PART	$2,547.03	1
003	7M103927K	COVER	7M103927K COVER	$3,037.62	1
004	7M103115K	ORNAMENT	7M103115K ORNAMENT	$49.48	1
005	6B906051	PRESSURE SENSOR IN STOCK	6B906051 PRESSURE SENSOR IN STOCK	$127.42	2
006	470133794A	T-PIECE	470133794A T-PIECE	$104.71	2
007	N90686701	SPRING BAND CLAMP IN STOCK	N90686701 SPRING BAND CLAMP IN STOCK	$1.89 MSRP: ~~7.11~~ (73.4% off)	10
008	400127217	CLAMP IN STOCK	400127217 CLAMP IN STOCK	$0.40 MSRP: ~~7.33~~ (94.5% off)	18
009	7M133085C	VACUUM PIPE	7M133085C VACUUM PIPE	$256.05	1
010	7M129268	Gasket IN STOCK	7M129268 Gasket IN STOCK	$28.27	4
011	7M133727B	VACUUM HOSE	7M133727B VACUUM HOSE	$13.31	1
012	470131209	PRESSURE PIPE	470131209 PRESSURE PIPE	$17.62	1
013	470131201	CONNECTING HOSE	470131201 CONNECTING HOSE	$15.41	1
014	37906283C	SOLENOID VALVE	37906283C SOLENOID VALVE	$122.44	3
015	7M131846C	INTAKE HOSE	7M131846C INTAKE HOSE	$6.52	1
016	7M131847C	INTAKE HOSE	7M131847C INTAKE HOSE	$13.43	1
017	470131585	CONNECTION PIECE	470131585 CONNECTION PIECE	$145.83	1
018	7M131850B	VACUUM HOSE	7M131850B VACUUM HOSE	$19.57	2
019	7M131208A	VACUUM HOSE	7M131208A VACUUM HOSE	$62.45	2
020	7M133605A	PIPE (BLUE)	7M133605A PIPE (BLUE)	$17.35	1
021	7M133727B	VACUUM HOSE	7M133727B VACUUM HOSE	$13.31	2
022	7M133605B	VACUUM HOSE	7M133605B VACUUM HOSE	$16.25	1
023	7M906287E	BRACKET	7M906287E BRACKET	$28.59	1
024	7M906303	SUPPORT	7M906303 SUPPORT	$25.27	1
025	N10470705	ROUND HD. SCREW IN STOCK	N10470705 ROUND HD. SCREW IN STOCK	$2.08	16
026	N10721401	OVAL HD. SELF-TAPP FITT. SCREW	N10721401 OVAL HD. SELF-TAPP FITT. SCREW	-	4	Enquire
027	N91136801	HEXAGON SOCKET HEAD PANEL BOLT IN STOCK	N91136801 HEXAGON SOCKET HEAD PANEL BOLT IN STOCK	$0.37	4
028	N90638102	ROUND HD. SCREW IN STOCK	N90638102 ROUND HD. SCREW IN STOCK	$1.43 MSRP: ~~7.25~~ (80.3% off)	2
029	N90925202	HEXAGON SOCKET HEAD COLLARED BOLT, THREAD FORMING	N90925202 HEXAGON SOCKET HEAD COLLARED BOLT, THREAD FORMING	$0.58 MSRP: ~~7.31~~ (92.1% off)	2
032	470131175	PIPE	470131175 PIPE	$69.37	1
033	N01166623	WASHER IN STOCK	N01166623 WASHER IN STOCK	$1.23	4
034	N10196901	CLAMP IN STOCK	N10196901 CLAMP IN STOCK	$1.07 MSRP: ~~7.23~~ (85.2% off)	7
