IGNITION COIL, SPARK PLUGS AND SENSORS of Ferrari Ferrari SF90 Stradale USA

View All

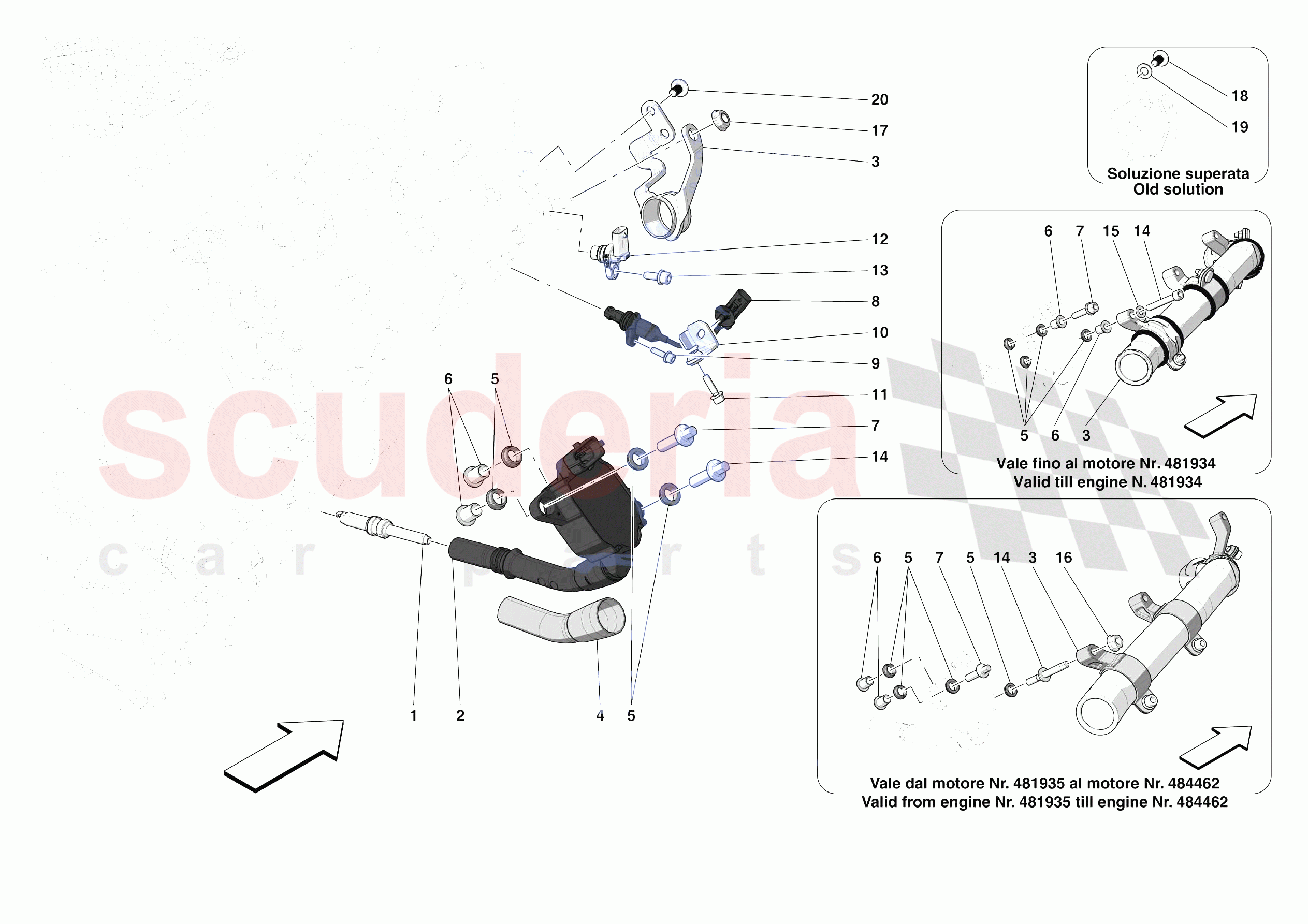

Ferrari SF90 Stradale USA - IGNITION COIL, SPARK PLUGS AND SENSORS

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	808693	SPARK PLUG	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	912709	IGNITION COIL	Enquire	To Order
	959204	IGNITION COIL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	811563	RH COILED PIPE MOUNTING BRACKET	Enquire	To Order
	811564	LH COILED PIPE MOUNTING BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	940473	SHEATH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	334070	RUBBER PAD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	911623	BUSH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	231620	SCREW	Enquire	To Order
	801105	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	963744	ANGULAR SPEED SENSOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	231619	SOCKET HEAD SCREW M6 X 22 WITH WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	899557	COMPL. BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	231619	SOCKET HEAD SCREW M6 X 22 WITH WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	935179	TIMING SENSOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	248334	SCREW M6 X 14MM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14305874	SCREW	Enquire	To Order
	980223	STUD BOLT	Enquire	To Order
	801105	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11194374	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	980190	NUT	Enquire	To Order
	980190	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14302824	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11193874	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	823018	SCREW	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
0001	808693	SPARK PLUG	808693 SPARK PLUG	-	8	Enquire
0002	912709	IGNITION COIL	912709 IGNITION COIL Applies until depletion	-	8	Enquire
0002	959204	IGNITION COIL	959204 IGNITION COIL Applicable after depletion of 912709	-	8	Enquire
0003	811563	RH COILED PIPE MOUNTING BRACKET	811563 RH COILED PIPE MOUNTING BRACKET For vehicles up to engine No. 484462, also order tab. 21 980190 ref.17, 801105 ref.14, 801105 ref.7, 14302824 ref.18, 11193874 ref.19, tab.11 812867 ref.21, 14304224 ref.5, 11181574 ref.4 and 824857 tab.115 ref.16	-	1	Enquire
0003	811564	LH COILED PIPE MOUNTING BRACKET	811564 LH COILED PIPE MOUNTING BRACKET For vehicles up to engine No. 484462, also order tab. 21 980190 ref.17, 801105 ref.14, 801105 ref.7, 14302824 ref.18, 11193874 ref.19, tab.12 14304224 ref.4, 11181574 ref.5, 980189 ref.22 and 824857 tab.115 ref.16	-	1	Enquire
0004	940473	SHEATH	940473 SHEATH	-	8	Enquire
0005	334070	RUBBER PAD	334070 RUBBER PAD	-	32	Enquire
0006	911623	BUSH	911623 BUSH	-	16	Enquire
0007	231620	SCREW	231620 SCREW Applicable up to engine No. 481934; M6 X 25	-	10	Enquire
0007	801105	SCREW	801105 SCREW Applicable from engine No. 484463; M6 X 22	-	8	Enquire
0008	963744	ANGULAR SPEED SENSOR	963744 ANGULAR SPEED SENSOR	-	1	Enquire
0009	231619	SOCKET HEAD SCREW M6 X 22 WITH WASHER	231619 SOCKET HEAD SCREW M6 X 22 WITH WASHER No longer supplied; M6 X 22	-	1	Enquire
0010	899557	COMPL. BRACKET	899557 COMPL. BRACKET No longer supplied	-	1	Enquire
0011	231619	SOCKET HEAD SCREW M6 X 22 WITH WASHER	231619 SOCKET HEAD SCREW M6 X 22 WITH WASHER M6 X 22	-	1	Enquire
0012	935179	TIMING SENSOR	935179 TIMING SENSOR	-	4	Enquire
0013	248334	SCREW M6 X 14MM	248334 SCREW M6 X 14MM M6 X 16	-	4	Enquire
0014	14305874	SCREW	14305874 SCREW Applicable up to engine No. 481934; M6 X 40	-	6	Enquire
0014	980223	STUD BOLT	980223 STUD BOLT Applicable from engine No. 481935 up to engine No. 484462	-	8	Enquire
0014	801105	SCREW	801105 SCREW M6 X 22	-	8	Enquire
0015	11194374	WASHER	11194374 WASHER Applicable up to engine No. 481934	-	6	Enquire
0016	14059290	FLANGED NUT M6	14059290 FLANGED NUT M6 M6	-	6	Enquire
0017	980190	NUT	980190 NUT Applicable from engine No. 484463	-	2	Enquire
0017	980190	NUT	980190 NUT	-	2	Enquire
0018	14302824	SCREW	14302824 SCREW Applicable from engine No. 484463; M8 X 18	-	4	Enquire
0019	11193874	WASHER	11193874 WASHER Applicable from engine No. 484463	-	4	Enquire
0020	823018	SCREW	823018 SCREW M8 X 16	-	4	Enquire
