Ferrari SF90 Spider Europe - BATTERIES

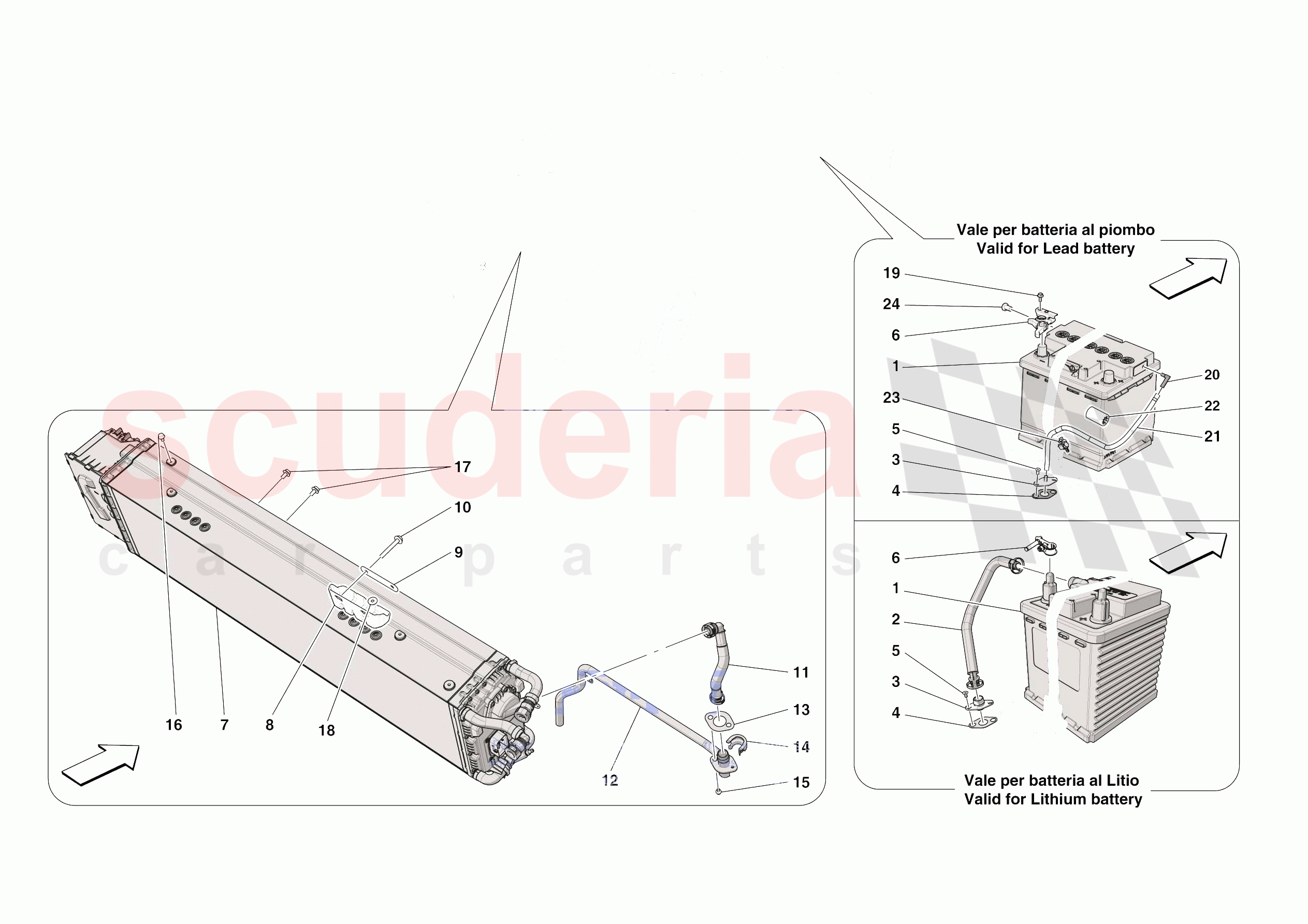

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	966818	LITHIUM BATTERY	Enquire	To Order
	949042	BATTERY	Enquire	To Order
	966818	LITHIUM BATTERY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	871710	VENTING PIPE	Enquire	To Order
	871710	VENTING PIPE	Enquire	To Order
	934244	VENTING PIPE	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	935783	VENTING BLOCK	Enquire	To Order
	950721	BATTERY VENT BLOCK	Enquire	To Order
	935783	VENTING BLOCK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	817742	VENTING PIPE FLANGE GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	62797600	Allen Bolt Countersunk M6 x 20	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	909078	NEGATIVE BATTERY TERMINAL	Enquire	To Order
	11163594	BATTERY DISCONNECTOR TERMINAL CLAMP WITH LEVER	Enquire	To Order
	909078	NEGATIVE BATTERY TERMINAL	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	954475	HVB BATTERY	Enquire	To Order
	924449	HVB BATTERY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	898280	UPPER HVB FASTENER BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	898690	SPACER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	872471	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	936890	HVB VENTING PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	863266	THREADED EXTERNAL HVB VENTING PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	829093	EXTERNAL HVB VENTING PIPE GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	926481	HVB VENTING PIPE SECONDARY LOCK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	85833700	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	16285924	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	872469	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12643724	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11730624	SCREW	Enquire	To Order
	16296934	SCREW 6 X 14MM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	199631	UNION FOR BATTERY BLEEDER PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	951140	BATTERY PURGE PIPE	Enquire	To Order
	743561	BATTERY PURGE PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	322605	SPACER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	310112	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	834740	BATTERY BREATHER CAP	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
0001	966818	LITHIUM BATTERY	966818 LITHIUM BATTERY 40 Ah - With 30% charge - Version for lithium battery	-	1	Enquire
0001	949042	BATTERY	949042 BATTERY 50 Ah - Version for lead battery	-	1	Enquire
0001	966818	LITHIUM BATTERY	966818 LITHIUM BATTERY	-	1	Enquire
0002	871710	VENTING PIPE	871710 VENTING PIPE Version for lithium battery	-	1	Enquire
0002	871710	VENTING PIPE	871710 VENTING PIPE	-	1	Enquire
0002	934244	VENTING PIPE	934244 VENTING PIPE Version for lithium battery	-	1	Enquire
0002	934244	VENTING PIPE	934244 VENTING PIPE	-	1	Enquire
0003	935783	VENTING BLOCK	935783 VENTING BLOCK Version for lithium battery	-	1	Enquire
0003	950721	BATTERY VENT BLOCK	950721 BATTERY VENT BLOCK Version for lead battery	-	1	Enquire
0003	935783	VENTING BLOCK	935783 VENTING BLOCK	-	1	Enquire
0004	817742	VENTING PIPE FLANGE GASKET	817742 VENTING PIPE FLANGE GASKET	-	1	Enquire
0005	62797600	Allen Bolt Countersunk M6 x 20	62797600 Allen Bolt Countersunk M6 x 20 M5 X 10	-	2	Enquire
0006	909078	NEGATIVE BATTERY TERMINAL	909078 NEGATIVE BATTERY TERMINAL	-	1	Enquire
0006	11163594	BATTERY DISCONNECTOR TERMINAL CLAMP WITH LEVER	11163594 BATTERY DISCONNECTOR TERMINAL CLAMP WITH LEVER Version for lead battery	-	1	Enquire
0006	909078	NEGATIVE BATTERY TERMINAL	909078 NEGATIVE BATTERY TERMINAL	-	1	Enquire
0006	909078	NEGATIVE BATTERY TERMINAL	909078 NEGATIVE BATTERY TERMINAL	-	1	Enquire
0007	954475	HVB BATTERY	954475 HVB BATTERY	-	1	Enquire
0007	924449	HVB BATTERY	924449 HVB BATTERY	-	1	Enquire
0008	898280	UPPER HVB FASTENER BRACKET	898280 UPPER HVB FASTENER BRACKET	-	2	Enquire
0009	898690	SPACER	898690 SPACER	-	2	Enquire
0010	872471	SCREW	872471 SCREW M8 X 60	-	4	Enquire
0011	936890	HVB VENTING PIPE	936890 HVB VENTING PIPE	-	1	Enquire
0012	863266	THREADED EXTERNAL HVB VENTING PIPE	863266 THREADED EXTERNAL HVB VENTING PIPE	-	1	Enquire
0013	829093	EXTERNAL HVB VENTING PIPE GASKET	829093 EXTERNAL HVB VENTING PIPE GASKET	-	1	Enquire
0014	926481	HVB VENTING PIPE SECONDARY LOCK	926481 HVB VENTING PIPE SECONDARY LOCK	-	1	Enquire
0015	85833700	SCREW	85833700 SCREW M5 X 16	-	3	Enquire
0016	16285924	SCREW	16285924 SCREW M6 X 12	-	1	Enquire
0017	872469	SCREW	872469 SCREW	-	6	Enquire
0018	12643724	WASHER	12643724 WASHER	-	8	Enquire
0019	11730624	SCREW	11730624 SCREW M6 X 14	-	1	Enquire
0019	16296934	SCREW 6 X 14MM	16296934 SCREW 6 X 14MM M6 X 14	-	1	Enquire
0020	199631	UNION FOR BATTERY BLEEDER PIPE	199631 UNION FOR BATTERY BLEEDER PIPE Version for lead battery	-	1	Enquire
0021	951140	BATTERY PURGE PIPE	951140 BATTERY PURGE PIPE Version for lead battery	-	1	Enquire
0021	743561	BATTERY PURGE PIPE	743561 BATTERY PURGE PIPE Version for lead battery	-	1	Enquire
0022	322605	SPACER	322605 SPACER Version for lead battery	-	1	Enquire
0023	310112	CLIP	310112 CLIP Version for lead battery; 1 compartment-	-	1	Enquire
0024	834740	BATTERY BREATHER CAP	834740 BATTERY BREATHER CAP Version for lead battery	-	1	Enquire
