GEARBOX AND FASTENERS of Ferrari Ferrari Monza SPA1 Europe

View All

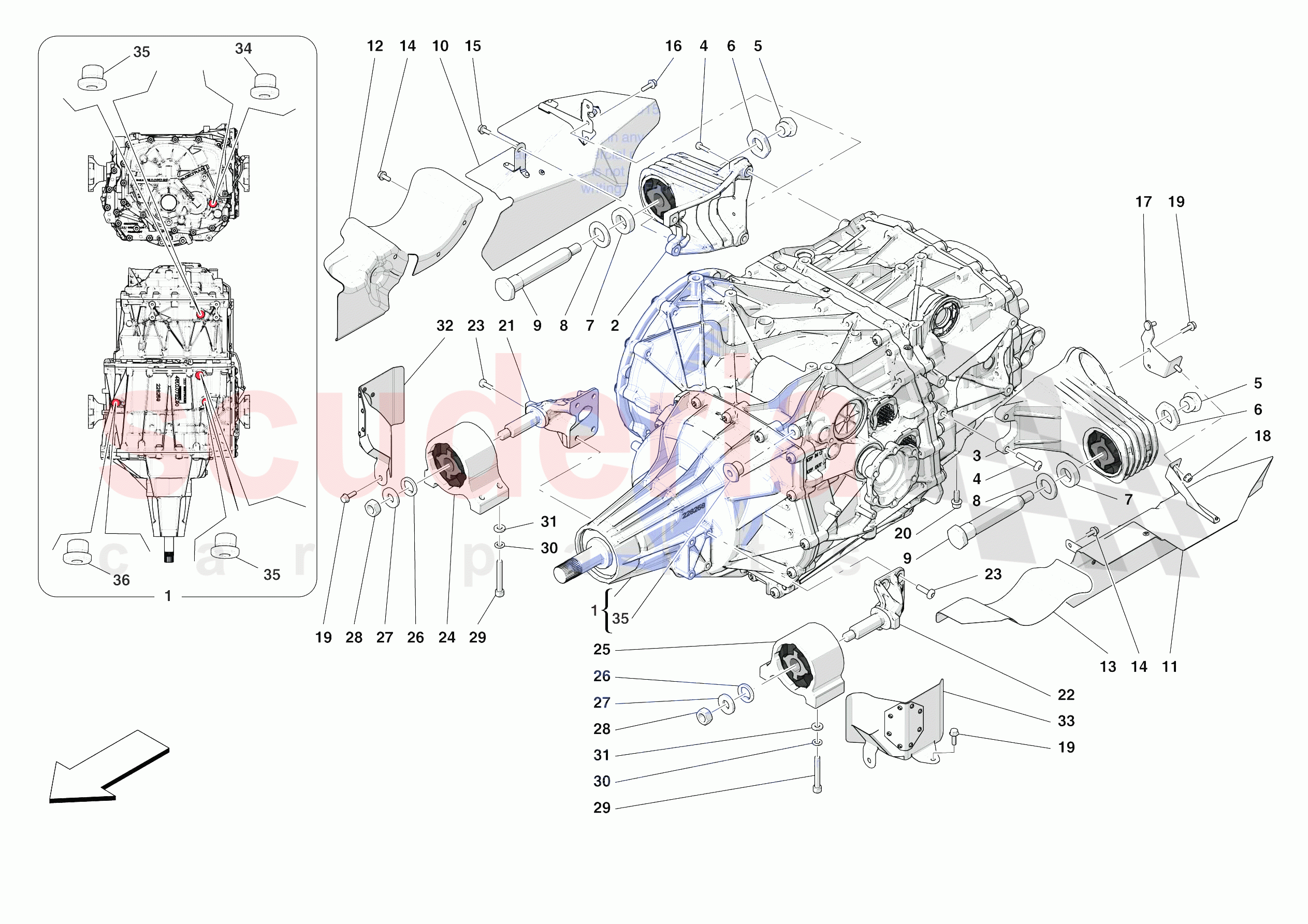

Ferrari Monza SPA1 Europe - GEARBOX AND FASTENERS

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	790512	COMPL. DCT GEARBOX	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	266362	COMPL. RH REAR STRUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	266364	COMPL. LH REAR STRUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14306634	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	287404	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	287405	SPACER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	243122	SPACER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10731314	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	899238	GEARBOX MOUNTING BUSH PIN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	272274	RH GEARBOX HEAT SHIELD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	294603	LH GEARBOX HEAT SHIELD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	259461	RH AXLE SHAFT HEAT SHIELD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	248707	LH AXLE SHAFT HEAT SHIELD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	16296934	SCREW 6 X 14MM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	248334	SCREW M6 X 14MM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	231619	SOCKET HEAD SCREW M6 X 22 WITH WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	263583	BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14040611	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	16286124	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	248471	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	301074	RH FRONT DCT GEARBOX STRUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	301073	LH FRONT DCT GEARBOX STRUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	247856	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	319484	COMPL. RH BUSHING MOUNT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	319482	COMPL. LH BUSHING MOUNT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	300597	SPLIT WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12644924	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12164024	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14302234	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	986899	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12654424	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	326173	RH FRONT MOUNT HEAT SHIELD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	326174	LH FRONT MOUNT HEAT SHIELD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	70005055	GL5 OIL LEVEL PLUG	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	70004679	OIL DRAIN PLUG	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	70005056	ATF OIL LEVEL PLUG KIT	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
0001	790512	COMPL. DCT GEARBOX	790512 COMPL. DCT GEARBOX Request ASM authorisation	-	1	Enquire
0002	266362	COMPL. RH REAR STRUT	266362 COMPL. RH REAR STRUT	-	1	Enquire
0003	266364	COMPL. LH REAR STRUT	266364 COMPL. LH REAR STRUT	-	1	Enquire
0004	14306634	SCREW	14306634 SCREW M8 X 1.25 X 35	-	8	Enquire
0005	287404	NUT	287404 NUT	-	2	Enquire
0006	287405	SPACER	287405 SPACER	-	2	Enquire
0007	243122	SPACER	243122 SPACER	-	2	Enquire
0008	10731314	WASHER	10731314 WASHER	-	2	Enquire
0009	899238	GEARBOX MOUNTING BUSH PIN	899238 GEARBOX MOUNTING BUSH PIN	-	2	Enquire
0010	272274	RH GEARBOX HEAT SHIELD	272274 RH GEARBOX HEAT SHIELD	-	1	Enquire
0011	294603	LH GEARBOX HEAT SHIELD	294603 LH GEARBOX HEAT SHIELD	-	1	Enquire
0012	259461	RH AXLE SHAFT HEAT SHIELD	259461 RH AXLE SHAFT HEAT SHIELD	-	1	Enquire
0013	248707	LH AXLE SHAFT HEAT SHIELD	248707 LH AXLE SHAFT HEAT SHIELD	-	1	Enquire
0014	16296934	SCREW 6 X 14MM	16296934 SCREW 6 X 14MM M6 X 14	-	7	Enquire
0015	248334	SCREW M6 X 14MM	248334 SCREW M6 X 14MM M6 X 12	-	1	Enquire
0016	231619	SOCKET HEAD SCREW M6 X 22 WITH WASHER	231619 SOCKET HEAD SCREW M6 X 22 WITH WASHER M6 X 18	-	2	Enquire
0017	263583	BRACKET	263583 BRACKET	-	1	Enquire
0018	14040611	NUT	14040611 NUT	-	1	Enquire
0019	16286124	SCREW	16286124 SCREW M6 X 20	-	6	Enquire
0020	248471	SCREW	248471 SCREW M8 X 20	-	2	Enquire
0021	301074	RH FRONT DCT GEARBOX STRUT	301074 RH FRONT DCT GEARBOX STRUT	-	1	Enquire
0022	301073	LH FRONT DCT GEARBOX STRUT	301073 LH FRONT DCT GEARBOX STRUT	-	1	Enquire
0023	247856	SCREW	247856 SCREW M8 X 1.25 X 25	-	8	Enquire
0024	319484	COMPL. RH BUSHING MOUNT	319484 COMPL. RH BUSHING MOUNT	-	1	Enquire
0025	319482	COMPL. LH BUSHING MOUNT	319482 COMPL. LH BUSHING MOUNT	-	1	Enquire
0026	300597	SPLIT WASHER	300597 SPLIT WASHER	-	2	Enquire
0027	12644924	WASHER	12644924 WASHER	-	2	Enquire
0028	12164024	NUT	12164024 NUT	-	2	Enquire
0029	14302234	SCREW	14302234 SCREW M8 X 55	-	8	Enquire
0030	986899	WASHER	986899 WASHER	-	8	Enquire
0031	12654424	WASHER	12654424 WASHER	-	8	Enquire
0032	326173	RH FRONT MOUNT HEAT SHIELD	326173 RH FRONT MOUNT HEAT SHIELD	-	1	Enquire
0033	326174	LH FRONT MOUNT HEAT SHIELD	326174 LH FRONT MOUNT HEAT SHIELD	-	1	Enquire
0034	70005055	GL5 OIL LEVEL PLUG	70005055 GL5 OIL LEVEL PLUG	-	1	Enquire
0035	70004679	OIL DRAIN PLUG	70004679 OIL DRAIN PLUG	-	4	Enquire
0036	70005056	ATF OIL LEVEL PLUG KIT	70005056 ATF OIL LEVEL PLUG KIT	-	1	Enquire
