MANIFOLDS, TURBOCHARGING SYSTEM AND PIPES of Ferrari Ferrari GTC4Lusso T

View All

Ferrari GTC4Lusso T - MANIFOLDS, TURBOCHARGING SYSTEM AND PIPES

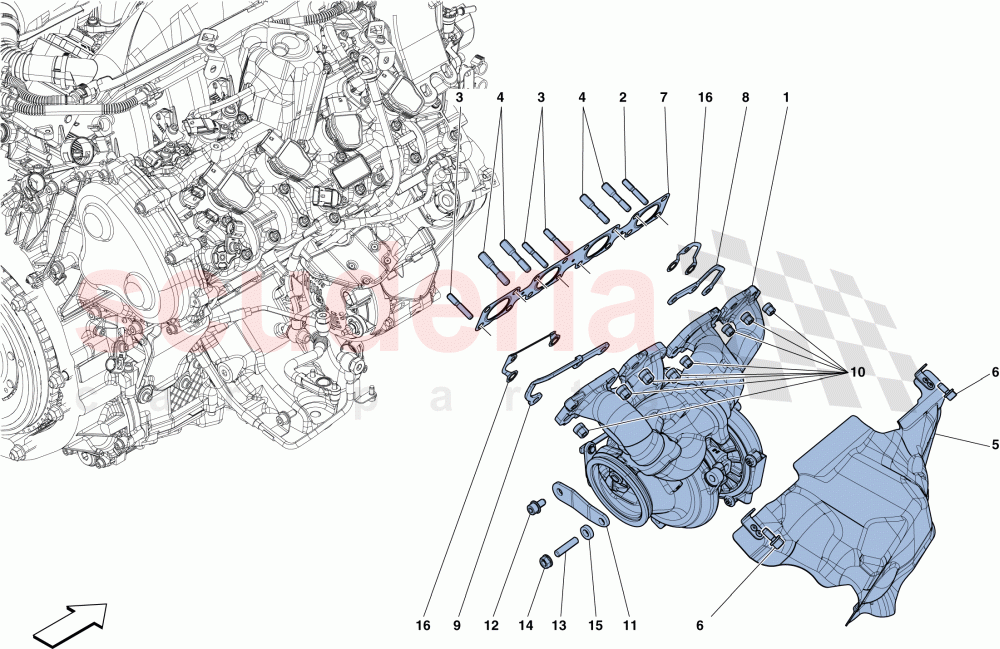

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	317017	RH TURBOCHARGER	Enquire	To Order
	317018	LH TURBOCHARGER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	307168	STUD BOLT	Enquire	To Order
	308198	STUD BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	307168	STUD BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	306320	STUD BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	306700	TURBO HEAT SHIELD - RH MANIFOLD	Enquire	To Order
	306701	TURBO HEAT SHIELD - LH MANIFOLD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	248334	SCREW M6 X 14MM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	292736	EXHAUST MANIFOLD GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	942004	ANTI-LOOSENING BRACKET, RH MANIFOLD FOR CYL 1-2	Enquire	To Order
	942008	ANTI-LOOSENING BRACKET, LH MANIFOLD FOR CYL 7-8	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	942005	ANTI-LOOSENING BRACKET, RH MANIFOLD FOR CYL 3-4	Enquire	To Order
	942006	ANTI-LOOSENING BRACKET, LH MANIFOLD FOR CYL 5-6	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	307964	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	313263	RH TURBO MOUNTING BRACKET	Enquire	To Order
	313264	LH TURBO MOUNTING BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	248471	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	304100	STUD BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	304378	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	312354	SPACER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	809184	ANTI-LOOSENING PLATE, CYLINDER 1, RH.	Enquire	To Order
	342841	ANTI-LOOSENING PLATE, CYLINDER 4, RH.	Enquire	To Order
	342842	ANTI-LOOSENING PLATE, CYLINDER 5, LH.	Enquire	To Order

...and 1 more part variants. See table on right for more details.

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	317017	RH TURBOCHARGER	317017 RH TURBOCHARGER	-	1	Enquire
1	317018	LH TURBOCHARGER	317018 LH TURBOCHARGER	-	1	Enquire
2	307168	STUD BOLT	307168 STUD BOLT M8 X 14; Shaft length 41 mm; On LH head.	-	7	Enquire
2	308198	STUD BOLT	308198 STUD BOLT M8 X 14; Shaft length 31 mm; On RH head.	-	1	Enquire
3	307168	STUD BOLT	307168 STUD BOLT M8 X 14; Shaft length 41 mm	-	6	Enquire
4	306320	STUD BOLT	306320 STUD BOLT M10 X 17; Shank length M8 X 32 mm	-	8	Enquire
5	306700	TURBO HEAT SHIELD - RH MANIFOLD	306700 TURBO HEAT SHIELD - RH MANIFOLD RH MANIFOLD	-	1	Enquire
5	306701	TURBO HEAT SHIELD - LH MANIFOLD	306701 TURBO HEAT SHIELD - LH MANIFOLD LH MANIFOLD	-	1	Enquire
6	248334	SCREW M6 X 14MM	248334 SCREW M6 X 14MM M6 X 14	-	6	Enquire
7	292736	EXHAUST MANIFOLD GASKET	292736 EXHAUST MANIFOLD GASKET Also comes with engine gasket set	-	2	Enquire
8	942004	ANTI-LOOSENING BRACKET, RH MANIFOLD FOR CYL 1-2	942004 ANTI-LOOSENING BRACKET, RH MANIFOLD FOR CYL 1-2	-	1	Enquire
8	942008	ANTI-LOOSENING BRACKET, LH MANIFOLD FOR CYL 7-8	942008 ANTI-LOOSENING BRACKET, LH MANIFOLD FOR CYL 7-8	-	1	Enquire
9	942005	ANTI-LOOSENING BRACKET, RH MANIFOLD FOR CYL 3-4	942005 ANTI-LOOSENING BRACKET, RH MANIFOLD FOR CYL 3-4	-	1	Enquire
9	942006	ANTI-LOOSENING BRACKET, LH MANIFOLD FOR CYL 5-6	942006 ANTI-LOOSENING BRACKET, LH MANIFOLD FOR CYL 5-6	-	1	Enquire
10	307964	NUT	307964 NUT	-	16	Enquire
11	313263	RH TURBO MOUNTING BRACKET	313263 RH TURBO MOUNTING BRACKET	-	1	Enquire
11	313264	LH TURBO MOUNTING BRACKET	313264 LH TURBO MOUNTING BRACKET	-	1	Enquire
12	248471	SCREW	248471 SCREW	-	2	Enquire
13	304100	STUD BOLT	304100 STUD BOLT	-	2	Enquire
14	304378	NUT	304378 NUT	-	2	Enquire
15	312354	SPACER	312354 SPACER	-	2	Enquire
16	809184	ANTI-LOOSENING PLATE, CYLINDER 1, RH.	809184 ANTI-LOOSENING PLATE, CYLINDER 1, RH.	-	1	Enquire
16	342841	ANTI-LOOSENING PLATE, CYLINDER 4, RH.	342841 ANTI-LOOSENING PLATE, CYLINDER 4, RH.	-	1	Enquire
16	342842	ANTI-LOOSENING PLATE, CYLINDER 5, LH.	342842 ANTI-LOOSENING PLATE, CYLINDER 5, LH.	-	1	Enquire
16	342843	ANTI-LOOSENING PLATE, CYLINDER 8, LH.	342843 ANTI-LOOSENING PLATE, CYLINDER 8, LH.	-	1	Enquire
