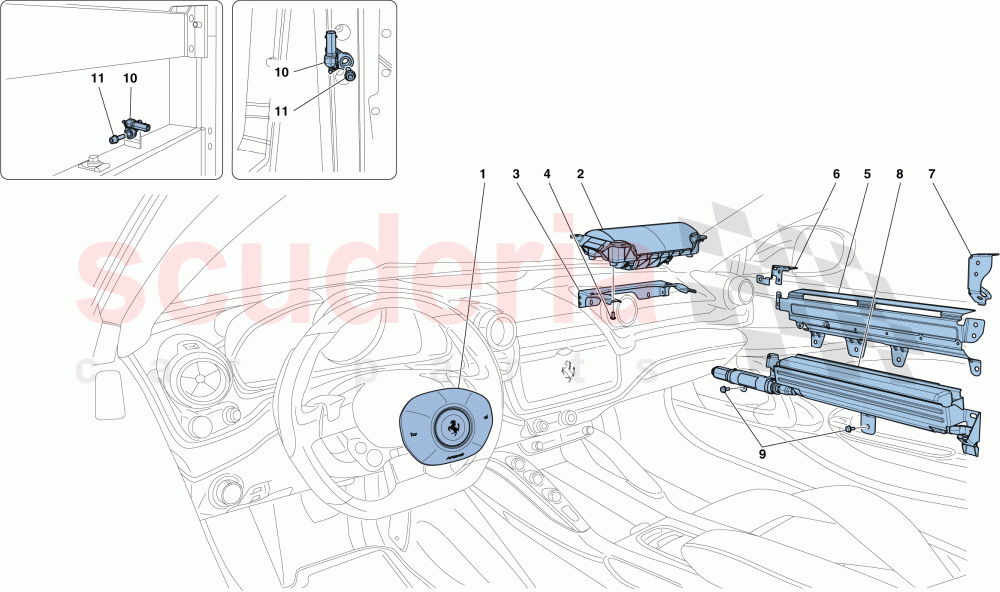

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	89077700	DRIVER SIDE AIRBAG MODULE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	89207500	PASSENGER AIRBAG	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	915271	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	87256200	RH LATERAL AIRBAG MOUNTING BRACKET	Enquire	To Order
	87387900	LH LATERAL AIRBAG MOUNTING BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	87878200	BRACKET FOR RH UPPER PANEL, FRONT AIRBAG	Enquire	To Order
	87878000	BRACKET FOR LH UPPER PANEL, FRONT AIRBAG	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	87878300	BRACKET FOR RH UPPER PANEL, REAR AIRBAG	Enquire	To Order
	87878100	BRACKET FOR LH UPPER PANEL, REAR AIRBAG	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	248334	SCREW M6 X 14MM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	316177	AIRBAG SENSOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14305324	SCREW	Enquire	To Order

View All

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	89077700	DRIVER SIDE AIRBAG MODULE	89077700 DRIVER SIDE AIRBAG MODULE Leather	-	1	Enquire
2	89207500	PASSENGER AIRBAG	89207500 PASSENGER AIRBAG	-	1	Enquire
3	744769	AIRBAG BRACKET	744769 AIRBAG BRACKET Applicable for airbag 89207500 ref.2; Applicable for GD	-	1	Enquire
3	744668	AIRBAG BRACKET	744668 AIRBAG BRACKET Applicable for airbag 89207500 ref.2; Not for GD	-	1	Enquire
4	915271	SCREW	915271 SCREW M6 X 15	-	4	Enquire
5	87256200	RH LATERAL AIRBAG MOUNTING BRACKET	87256200 RH LATERAL AIRBAG MOUNTING BRACKET	-	1	Enquire
5	87387900	LH LATERAL AIRBAG MOUNTING BRACKET	87387900 LH LATERAL AIRBAG MOUNTING BRACKET	-	1	Enquire
6	87878200	BRACKET FOR RH UPPER PANEL, FRONT AIRBAG	87878200 BRACKET FOR RH UPPER PANEL, FRONT AIRBAG	-	1	Enquire
6	87878000	BRACKET FOR LH UPPER PANEL, FRONT AIRBAG	87878000 BRACKET FOR LH UPPER PANEL, FRONT AIRBAG	-	1	Enquire
7	87878300	BRACKET FOR RH UPPER PANEL, REAR AIRBAG	87878300 BRACKET FOR RH UPPER PANEL, REAR AIRBAG	-	1	Enquire
7	87878100	BRACKET FOR LH UPPER PANEL, REAR AIRBAG	87878100 BRACKET FOR LH UPPER PANEL, REAR AIRBAG	-	1	Enquire
8	88363200	COMPL. RH HEAD BAG	88363200 COMPL. RH HEAD BAG	-	1	Enquire
8	88363100	COMPL. LH HEAD BAG	88363100 COMPL. LH HEAD BAG	-	1	Enquire
9	248334	SCREW M6 X 14MM	248334 SCREW M6 X 14MM	-	6	Enquire
10	316177	AIRBAG SENSOR	316177 AIRBAG SENSOR	-	4	Enquire
11	14305324	SCREW	14305324 SCREW M6 X 20	-	2	Enquire
