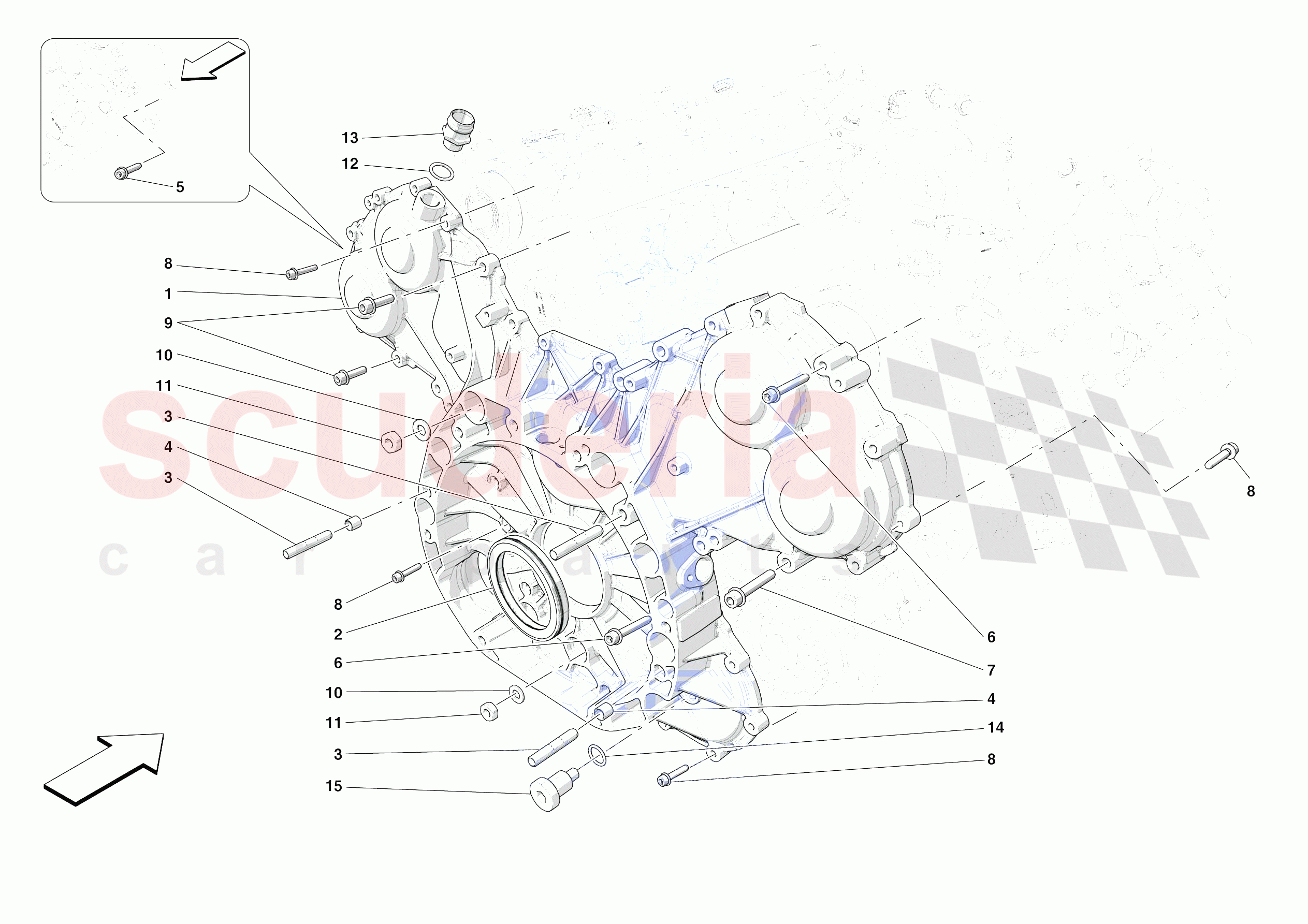

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	782004	TIMING COVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	240214	GASKET	Enquire	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	13546834	STUD BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	100052	CENTERING DOWEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	231625	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	231624	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	285494	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	231620	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	231629	SOCKET HEAD ALLEN SCREW WITH WASHER M8 X 30	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	178348	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	133988	HEX NUT M10 X 1.25 X 8	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10263160	GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	309101	CONNECTOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	302618	GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	307936	PLUG	Enquire	To Order

View All

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
0001	782004	TIMING COVER	782004 TIMING COVER	-	1	Enquire
0002	240214	GASKET ARRIVING SOON	240214 GASKET ARRIVING SOON	-	1	Enquire
0003	13546834	STUD BOLT	13546834 STUD BOLT Shank length 40 mm	-	10	Enquire
0004	100052	CENTERING DOWEL	100052 CENTERING DOWEL	-	2	Enquire
0005	231625	SCREW	231625 SCREW L. 40 mm	-	1	Enquire
0006	231624	SCREW	231624 SCREW M6 X 45	-	6	Enquire
0007	285494	SCREW	285494 SCREW M8 X 50	-	5	Enquire
0008	231620	SCREW	231620 SCREW M6 X 30	-	17	Enquire
0009	231629	SOCKET HEAD ALLEN SCREW WITH WASHER M8 X 30	231629 SOCKET HEAD ALLEN SCREW WITH WASHER M8 X 30 M8 X 30	-	5	Enquire
0010	178348	WASHER	178348 WASHER	-	8	Enquire
0011	133988	HEX NUT M10 X 1.25 X 8	133988 HEX NUT M10 X 1.25 X 8	-	8	Enquire
0012	10263160	GASKET	10263160 GASKET	-	1	Enquire
0013	309101	CONNECTOR	309101 CONNECTOR	-	1	Enquire
0014	302618	GASKET	302618 GASKET Also included in engine gasket set	-	1	Enquire
0015	307936	PLUG	307936 PLUG	-	1	Enquire
