Engine Electrical System

Ferrari F8 Tributo Europe

Find Your Part

Ferrari F8 Tributo Europe - ENGINE ELECTRICAL SYSTEM

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
936109 INJECTION CABLE $3,297.43 To Order
936110 INJECTION CABLE $3,522.08 To Order
Photo Part No Description Price (each) Stock
323246 INJECTION CABLE FASTENER BRACKET $20.84 To Order
Photo Part No Description Price (each) Stock
307852 CABLE RETAINER BRACKET $25.66 To Order
Photo Part No Description Price (each) Stock
320599 CLIP $1.88 To Order
Photo Part No Description Price (each) Stock
14059290 FLANGED NUT M6 $1.43 IN STOCK
Photo Part No Description Price (each) Stock
10440890 BRACKET WITH SHEATH $0.55 To Order
Photo Part No Description Price (each) Stock
323248 INJECTION CABLE FASTENER BRACKET $24.05 To Order
Photo Part No Description Price (each) Stock
320598 CLIP $1.88 To Order
Photo Part No Description Price (each) Stock
248334 SCREW $0.68 To Order
Photo Part No Description Price (each) Stock
318174 INJECTION CABLE FASTENER BRACKET $22.45 To Order
Photo Part No Description Price (each) Stock
320596 CLIP $1.78 To Order
Photo Part No Description Price (each) Stock
318365 COMPL. INJECTION CABLE FASTENER BRACKET $25.66 To Order
Photo Part No Description Price (each) Stock
248334 SCREW $0.68 To Order
Photo Part No Description Price (each) Stock
323247 INJECTION CABLE FASTENER BRACKET $24.05 To Order
Photo Part No Description Price (each) Stock
317772 ANCILLARIES WIRING HARNESS $348.08 To Order
Photo Part No Description Price (each) Stock
314110 ANCILLARY CABLE FASTENER BRACKET $30.47 To Order
Photo Part No Description Price (each) Stock
248334 SCREW $0.68 To Order
Photo Part No Description Price (each) Stock
322840 COMPL. ANCILLARY CABLE FASTENER BRACKET $33.68 To Order
Photo Part No Description Price (each) Stock
339560 COMPL. ANCILLARIES CABLE FASTENER BRACKET $24.05 To Order
Photo Part No Description Price (each) Stock
320601 CLIP $2.27 To Order
Photo Part No Description Price (each) Stock
320597 CLIP $1.78 To Order
Photo Part No Description Price (each) Stock
262530 CLIP $0.39 To Order
Photo Part No Description Price (each) Stock
314461 SOLENOID VALVE HEAT SHIELD $86.63 To Order
Photo Part No Description Price (each) Stock
842197 INJECTION CABLE FASTENER BRACKET $40.10 To Order
View All

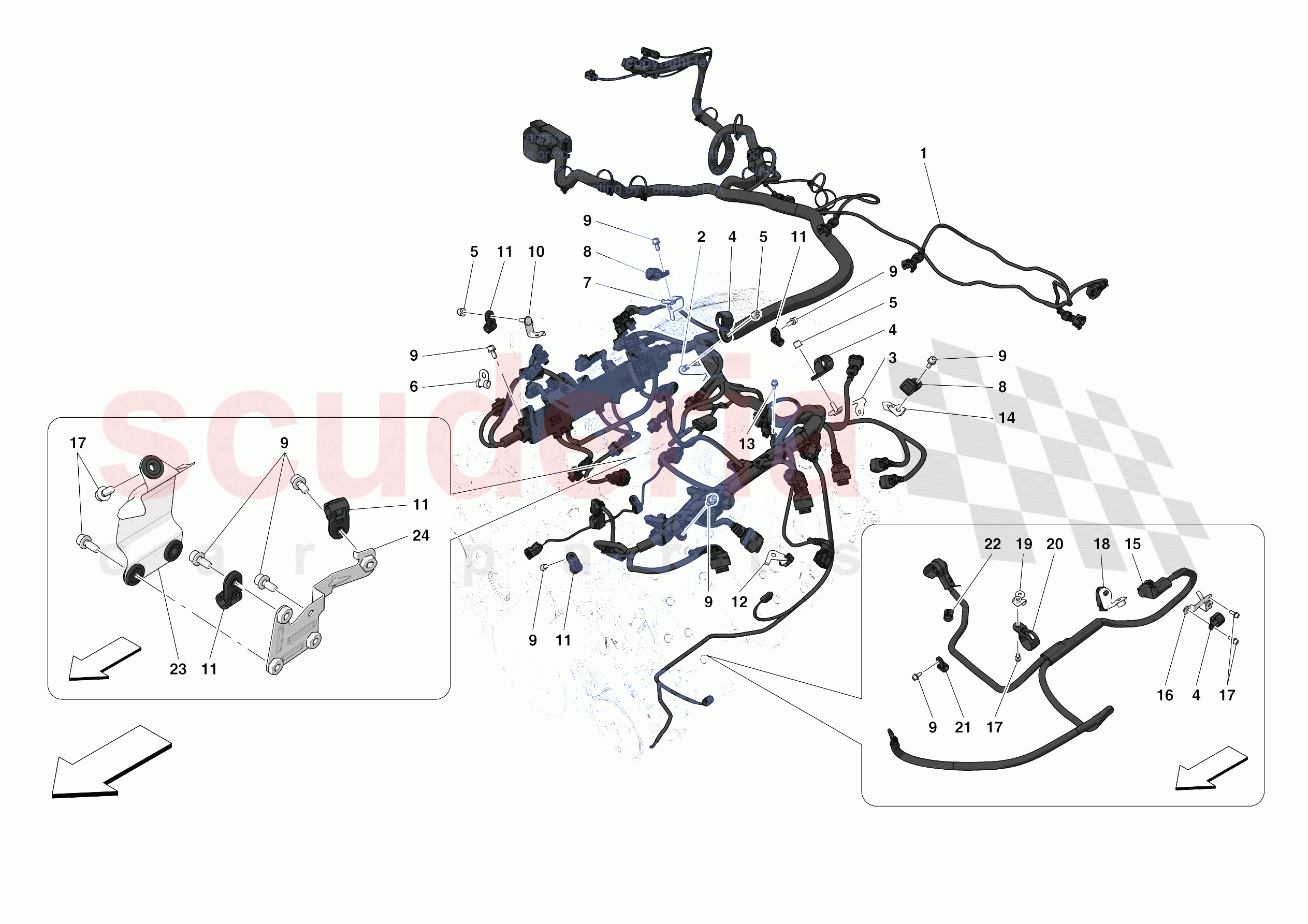

ENGINE ELECTRICAL SYSTEM of Ferrari Ferrari F8 Tributo Europe Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
0001 936109
INJECTION CABLE 		$3,297.43 1
0001 936110
INJECTION CABLE 		$3,522.08 1
0002 323246
INJECTION CABLE FASTENER BRACKET 		$20.84 1
0003 307852
CABLE RETAINER BRACKET 		$25.66 1
0004 320599
CLIP 		$1.88 7
0005 14059290
FLANGED NUT M6
IN STOCK 		$1.43 5
0006 10440890
BRACKET WITH SHEATH 		$0.55 1
0007 323248
INJECTION CABLE FASTENER BRACKET 		$24.05 1
0008 320598
CLIP 		$1.88 2
0009 248334
SCREW
M6 X 16 		$0.68 9
0010 318174
INJECTION CABLE FASTENER BRACKET 		$22.45 1
0011 320596
CLIP 		$1.78 7
0012 318365
COMPL. INJECTION CABLE FASTENER BRACKET 		$25.66 1
0013 248334
SCREW
M6 X 12 		$0.68 2
0014 323247
INJECTION CABLE FASTENER BRACKET 		$24.05 1
0015 317772
ANCILLARIES WIRING HARNESS 		$348.08 1
0016 314110
ANCILLARY CABLE FASTENER BRACKET 		$30.47 1
0017 248334
SCREW
M6 X 16 		$0.68 9
0018 322840
COMPL. ANCILLARY CABLE FASTENER BRACKET 		$33.68 1
0019 339560
COMPL. ANCILLARIES CABLE FASTENER BRACKET 		$24.05 1
0020 320601
CLIP 		$2.27 1
0021 320597
CLIP 		$1.78 3
0022 262530
CLIP 		$0.39 1
0023 314461
SOLENOID VALVE HEAT SHIELD 		$86.63 1
0024 842197
INJECTION CABLE FASTENER BRACKET 		$40.10 1
