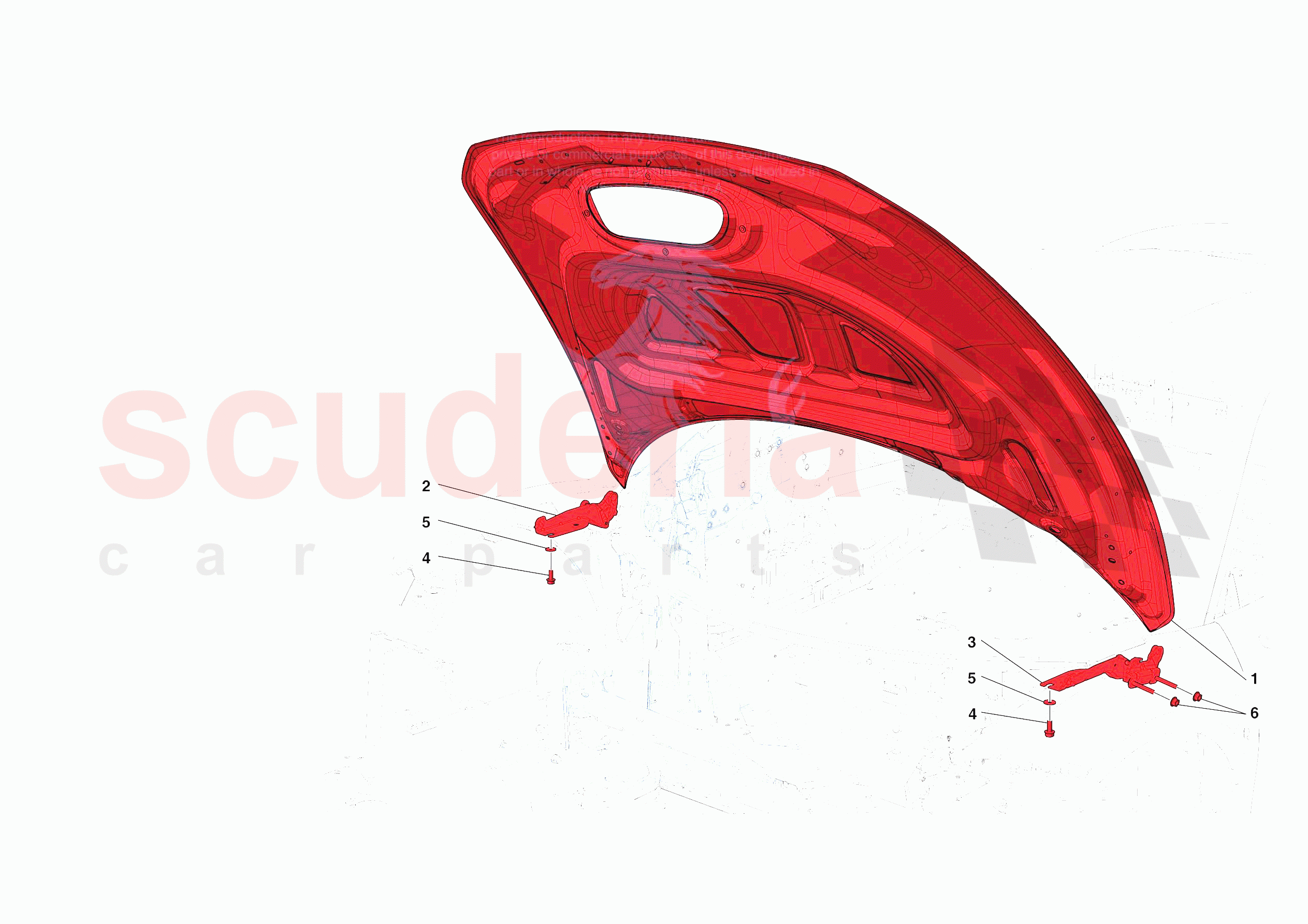

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	985850394	COMPL. FRONT LID SKIN AND SUBSTRUCTURE	$13,690.79	To Order
	985880997	COMPL. FRONT LID SKIN AND SUBSTRUCTURE	$10,444.67	To Order

Photo	Part No	Description	Price (each)	Stock
	84633000	COMPL. RH HINGE	$133.17	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	84632900	BONNET LH HINGE	$133.17	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	16287524	SCREW	$1.38	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	13578301	WASHER	$0.08	To Order

Photo	Part No	Description	Price (each)	Stock
	14059311	FLANGED NUT M8 X 1.25	$0.29	IN STOCK

View All

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
0001	985850394	COMPL. FRONT LID SKIN AND SUBSTRUCTURE	985850394 COMPL. FRONT LID SKIN AND SUBSTRUCTURE	$13,690.79	1
0001	985880997	COMPL. FRONT LID SKIN AND SUBSTRUCTURE	985880997 COMPL. FRONT LID SKIN AND SUBSTRUCTURE	$10,444.67	1
0002	84633000	COMPL. RH HINGE IN STOCK	84633000 COMPL. RH HINGE IN STOCK	$133.17	1
0003	84632900	BONNET LH HINGE IN STOCK	84632900 BONNET LH HINGE IN STOCK	$133.17	1
0004	16287524	SCREW IN STOCK	16287524 SCREW M8 X 20 IN STOCK	$1.38	1
0005	13578301	WASHER	13578301 WASHER	$0.08	8
0006	14059311	FLANGED NUT M8 X 1.25 IN STOCK	14059311 FLANGED NUT M8 X 1.25 IN STOCK	$0.29 MSRP: ~~0.50~~ (42% off)	4
