FRONT SUSPENSION - CALLIPERS AND DISCS of Ferrari Ferrari F8 Spider Europe

View All

Ferrari F8 Spider Europe - FRONT SUSPENSION - CALLIPERS AND DISCS

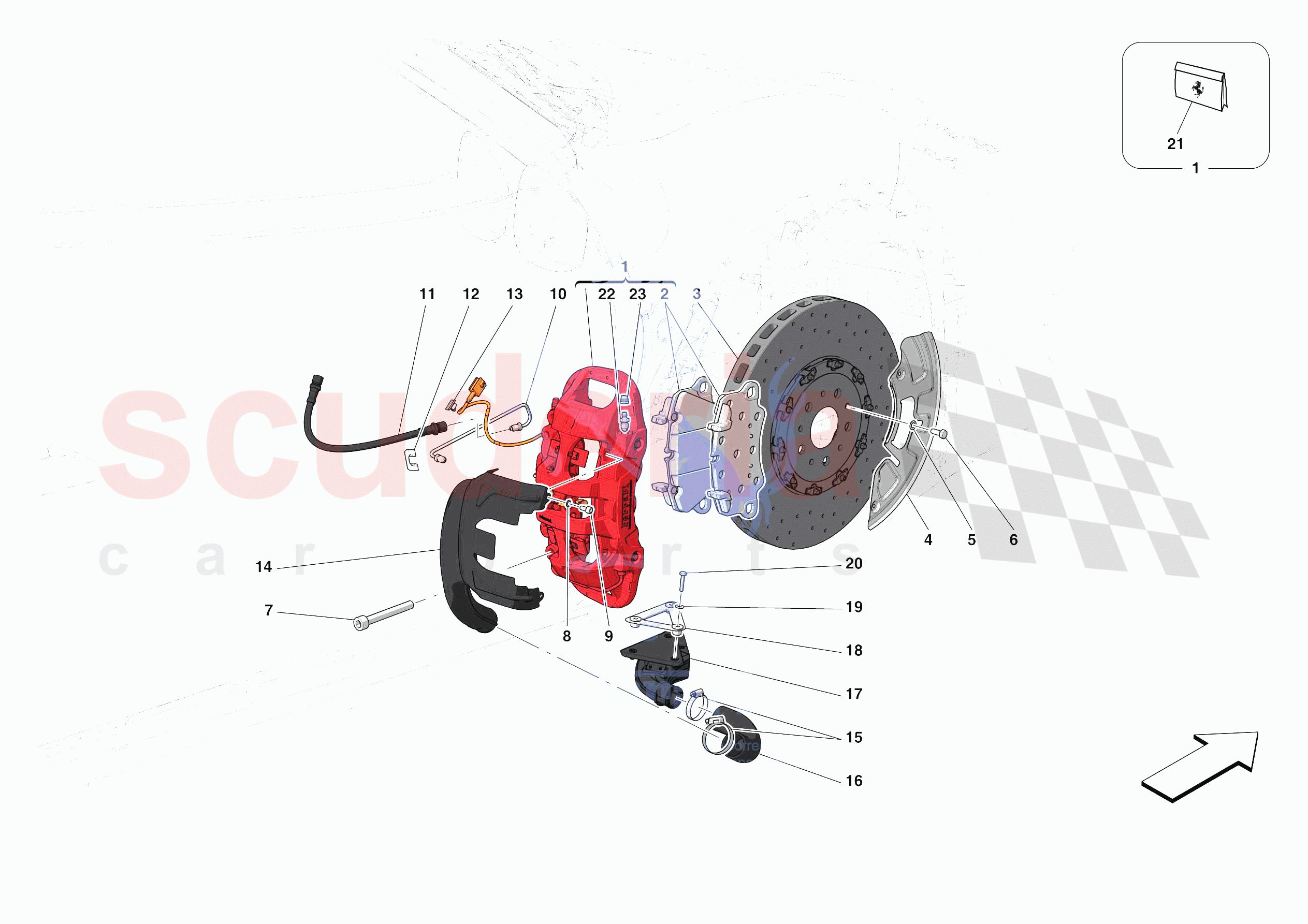

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	338889	RH FRONT CALIPER WITH PADS	Enquire	To Order
	859053	RH FRONT CALIPER WITH PADS	Enquire	To Order
	785827	RH FRONT CALIPER WITH PADS	Enquire	To Order

...and 33 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	70003826	FRONT PADS WITH SPRING	Enquire	To Order
	851785	SET OF FRONT PADS WITH SPRING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	321910	FRONT BRAKE DISC	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	297323	FRONT RH DISC SHIELD	Enquire	To Order
	297322	FRONT LH DISC SHIELD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	228132	SPRING WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	228131	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	195167	SCREW M12 X 1.5 X 95	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13550224	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	248334	SCREW M6 X 14MM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	292474	FRONT BRAKE PIPE FROM CALLIPER TO RH HOSE	Enquire	To Order
	292473	FRONT BRAKE PIPE FROM CALLIPER TO LH HOSE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	271771	PIPE	Enquire	To Order
	271771	PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	326837	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	303385	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	883363	RH FRONT CALLIPER HOUSING COVER	Enquire	To Order
	883362	LH FRONT CALLIPER HOUSING COVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	296781	COLLAR 30-45MM	Enquire	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	302698	BRAKE AIR PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	303202	RH FRONT BRAKE AIR DUCT	Enquire	To Order
	303201	LH FRONT BRAKE AIR DUCT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	303207	RH DUCT BRACKET	Enquire	To Order
	303206	LH DUCT BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11193274	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	231620	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	70003492	DUST GAITER KIT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	215665	BLEED SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	215666	PROTECTIVE CAP	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
0001	338889	RH FRONT CALIPER WITH PADS	338889 RH FRONT CALIPER WITH PADS Anodised black	-	1	Enquire
0001	859053	RH FRONT CALIPER WITH PADS	859053 RH FRONT CALIPER WITH PADS Anodised black	-	1	Enquire
0001	785827	RH FRONT CALIPER WITH PADS	785827 RH FRONT CALIPER WITH PADS Black	-	1	Enquire
0001	859057	RH FRONT CALIPER WITH PADS	859057 RH FRONT CALIPER WITH PADS Black	-	1	Enquire
0001	785828	RH FRONT CALIPER WITH PADS	785828 RH FRONT CALIPER WITH PADS Red	-	1	Enquire
0001	859061	RH FRONT CALIPER WITH PADS	859061 RH FRONT CALIPER WITH PADS Red	-	1	Enquire
0001	785829	RH FRONT CALIPER WITH PADS	785829 RH FRONT CALIPER WITH PADS Scuderia red	-	1	Enquire
0001	859069	RH FRONT CALIPER WITH PADS	859069 RH FRONT CALIPER WITH PADS Scuderia red	-	1	Enquire
0001	785830	RH FRONT CALIPER WITH PADS	785830 RH FRONT CALIPER WITH PADS Yellow	-	1	Enquire
0001	859063	RH FRONT CALIPER WITH PADS	859063 RH FRONT CALIPER WITH PADS Yellow	-	1	Enquire
0001	785833	RH FRONT CALIPER WITH PADS	785833 RH FRONT CALIPER WITH PADS Blue	-	1	Enquire
0001	859073	RH FRONT CALIPER WITH PADS	859073 RH FRONT CALIPER WITH PADS Blue	-	1	Enquire
0001	785834	RH FRONT CALIPER WITH PADS	785834 RH FRONT CALIPER WITH PADS Silver	-	1	Enquire
0001	859059	RH FRONT CALIPER WITH PADS	859059 RH FRONT CALIPER WITH PADS Silver	-	1	Enquire
0001	785831	RH FRONT CALIPER WITH PADS	785831 RH FRONT CALIPER WITH PADS Dark grey	-	1	Enquire
0001	859071	RH FRONT CALIPER WITH PADS	859071 RH FRONT CALIPER WITH PADS Dark grey	-	1	Enquire
0001	785832	RH FRONT CALIPER WITH PADS	785832 RH FRONT CALIPER WITH PADS Gold	-	1	Enquire
0001	859066	RH FRONT CALIPER WITH PADS	859066 RH FRONT CALIPER WITH PADS Gold	-	1	Enquire
0001	338888	LH FRONT CALIPER WITH PADS	338888 LH FRONT CALIPER WITH PADS Anodised black	-	1	Enquire
0001	859051	LH FRONT CALIPER WITH PADS	859051 LH FRONT CALIPER WITH PADS Anodised black	-	1	Enquire
0001	785604	LH FRONT CALIPER WITH PADS	785604 LH FRONT CALIPER WITH PADS Black	-	1	Enquire
0001	859056	LH FRONT CALIPER WITH PADS	859056 LH FRONT CALIPER WITH PADS Black	-	1	Enquire
0001	785609	LH FRONT CALIPER WITH PADS	785609 LH FRONT CALIPER WITH PADS Red	-	1	Enquire
0001	859060	LH FRONT CALIPER WITH PADS	859060 LH FRONT CALIPER WITH PADS Red	-	1	Enquire
0001	785610	LH FRONT CALIPER WITH PADS	785610 LH FRONT CALIPER WITH PADS Scuderia red	-	1	Enquire
0001	859068	LH FRONT CALIPER WITH PADS	859068 LH FRONT CALIPER WITH PADS Scuderia red	-	1	Enquire
0001	785611	LH FRONT CALIPER WITH PADS	785611 LH FRONT CALIPER WITH PADS Yellow	-	1	Enquire
0001	859062	LH FRONT CALIPER WITH PADS	859062 LH FRONT CALIPER WITH PADS Yellow	-	1	Enquire
0001	785814	LH FRONT CALIPER WITH PADS	785814 LH FRONT CALIPER WITH PADS Blue	-	1	Enquire
0001	859072	LH FRONT CALIPER WITH PADS	859072 LH FRONT CALIPER WITH PADS Blue	-	1	Enquire
0001	785817	LH FRONT CALIPER WITH PADS	785817 LH FRONT CALIPER WITH PADS Silver	-	1	Enquire
0001	859058	LH FRONT CALIPER WITH PADS	859058 LH FRONT CALIPER WITH PADS Silver	-	1	Enquire
0001	785788	LH FRONT CALIPER WITH PADS	785788 LH FRONT CALIPER WITH PADS Dark grey	-	1	Enquire
0001	859070	LH FRONT CALIPER WITH PADS	859070 LH FRONT CALIPER WITH PADS Dark grey	-	1	Enquire
0001	785813	LH FRONT CALIPER WITH PADS	785813 LH FRONT CALIPER WITH PADS Gold	-	1	Enquire
0001	859065	LH FRONT CALIPER WITH PADS	859065 LH FRONT CALIPER WITH PADS Gold	-	1	Enquire
0002	70003826	FRONT PADS WITH SPRING	70003826 FRONT PADS WITH SPRING	-	1	Enquire
0002	851785	SET OF FRONT PADS WITH SPRING	851785 SET OF FRONT PADS WITH SPRING	-	1	Enquire
0003	321910	FRONT BRAKE DISC	321910 FRONT BRAKE DISC	-	2	Enquire
0004	297323	FRONT RH DISC SHIELD	297323 FRONT RH DISC SHIELD	-	1	Enquire
0004	297322	FRONT LH DISC SHIELD	297322 FRONT LH DISC SHIELD	-	1	Enquire
0005	228132	SPRING WASHER	228132 SPRING WASHER	-	4	Enquire
0006	228131	SCREW	228131 SCREW M8 X 20	-	4	Enquire
0007	195167	SCREW M12 X 1.5 X 95	195167 SCREW M12 X 1.5 X 95 M12 X 1.5 X 95	-	4	Enquire
0008	13550224	WASHER	13550224 WASHER	-	8	Enquire
0009	248334	SCREW M6 X 14MM	248334 SCREW M6 X 14MM M6 X 12	-	8	Enquire
0010	292474	FRONT BRAKE PIPE FROM CALLIPER TO RH HOSE	292474 FRONT BRAKE PIPE FROM CALLIPER TO RH HOSE	-	1	Enquire
0010	292473	FRONT BRAKE PIPE FROM CALLIPER TO LH HOSE	292473 FRONT BRAKE PIPE FROM CALLIPER TO LH HOSE	-	1	Enquire
0011	271771	PIPE	271771 PIPE	-	2	Enquire
0011	271771	PIPE	271771 PIPE	-	2	Enquire
0012	326837	CLIP	326837 CLIP	-	2	Enquire
0013	303385	CLIP	303385 CLIP	-	2	Enquire
0014	883363	RH FRONT CALLIPER HOUSING COVER	883363 RH FRONT CALLIPER HOUSING COVER	-	1	Enquire
0014	883362	LH FRONT CALLIPER HOUSING COVER	883362 LH FRONT CALLIPER HOUSING COVER	-	1	Enquire
0015	296781	COLLAR 30-45MM ARRIVING SOON	296781 COLLAR 30-45MM ARRIVING SOON	-	4	Enquire
0016	302698	BRAKE AIR PIPE	302698 BRAKE AIR PIPE	-	2	Enquire
0017	303202	RH FRONT BRAKE AIR DUCT	303202 RH FRONT BRAKE AIR DUCT	-	1	Enquire
0017	303201	LH FRONT BRAKE AIR DUCT	303201 LH FRONT BRAKE AIR DUCT	-	1	Enquire
0018	303207	RH DUCT BRACKET	303207 RH DUCT BRACKET	-	1	Enquire
0018	303206	LH DUCT BRACKET	303206 LH DUCT BRACKET	-	1	Enquire
0019	11193274	WASHER	11193274 WASHER	-	6	Enquire
0020	231620	SCREW	231620 SCREW M6 X 20 X 22	-	6	Enquire
0021	70003492	DUST GAITER KIT	70003492 DUST GAITER KIT	-	1	Enquire
0022	215665	BLEED SCREW	215665 BLEED SCREW	-	4	Enquire
0023	215666	PROTECTIVE CAP	215666 PROTECTIVE CAP	-	4	Enquire
