DOORS - TRIMS AND REAR WIEW MIRROR of Ferrari Ferrari F50

View All

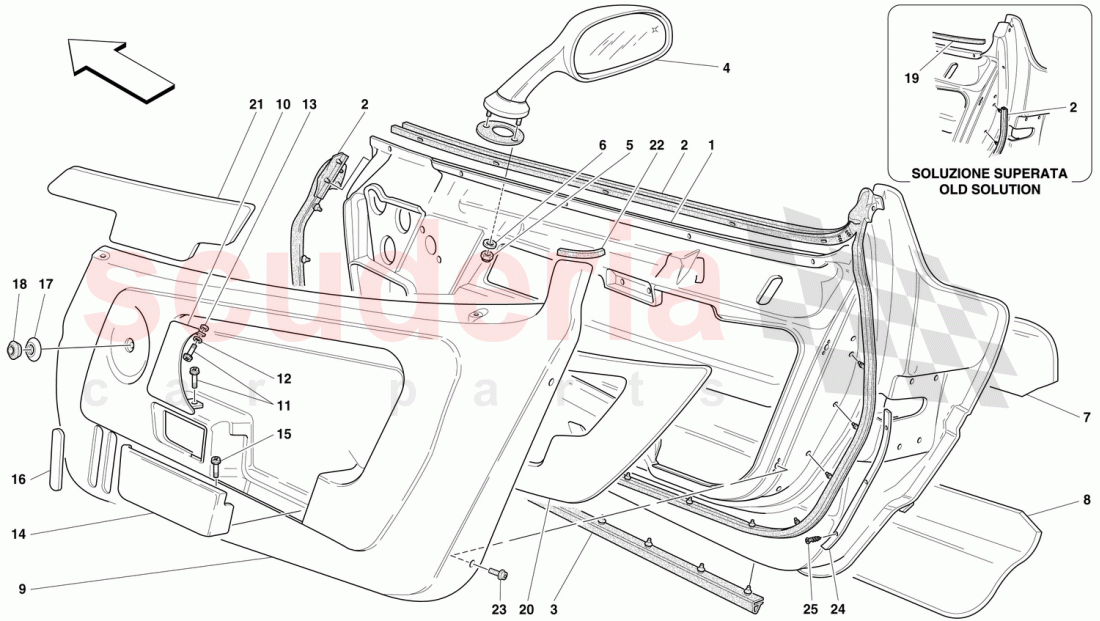

Ferrari F50 - DOORS - TRIMS AND REAR WIEW MIRROR

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	64694610	R.H. DOOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	65080600	GASKET FOR R.H. DOOR OPENING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	64515300	UNDER DOOR GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	64764210	R.H. OUTER REAR VIEW MIRROR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	147985	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13550301	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	64764000	R.H. UPPER SILENCER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	64924100	R.H. LOWER SILENCER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	63537300	R.H. DOOR INNER PANEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	64868200	COVERED R.H. HANDLE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	147365	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	62769800	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12677811	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	64868600	COVERED R.H. UTILITY POCKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14441037	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	161492	DOOR PROTECTION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	62584500	UNDER-HANDLE RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	64976800	SPACER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	64869200	GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	64924300	R.H. INNER PANNEL INSULATION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	64924500	R.H. INNER CENTRAL PANNEL INSULATION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	62955600	GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	169813	SCREW M5 X 12	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	65085600	R.H. CARPET SHIELD UNDER GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	15914977	SCREW -Valid for GTS-	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	65085700	L.H. CARPET SHIELD UNDER GASKET	65085700 L.H. CARPET SHIELD UNDER GASKET	-	1	Enquire
-	64924400	L.H. INNER PANNEL INSULATION	64924400 L.H. INNER PANNEL INSULATION	-	1	Enquire
-	64924600	L.H. INNER CENTRAL PANNEL INSULATION	64924600 L.H. INNER CENTRAL PANNEL INSULATION INSULATION	-	1	Enquire
-	64868700	COVERED L.H. UTILITY POCKET	64868700 COVERED L.H. UTILITY POCKET POCKET	-	1	Enquire
-	63537400	L.H. DOOR INNER PANEL	63537400 L.H. DOOR INNER PANEL	-	1	Enquire
-	64868300	COVERED L.H. HANDLE	64868300 COVERED L.H. HANDLE	-	1	Enquire
-	64764100	L.H. UPPER SILENCER	64764100 L.H. UPPER SILENCER	-	1	Enquire
-	64924200	L.H. LOWER SILENCER	64924200 L.H. LOWER SILENCER	-	1	Enquire
-	65080910	R.H. OUTER REAR VIEW MIRROR	65080910 R.H. OUTER REAR VIEW MIRROR MIRROR / Valid for USA	-	1	Enquire
-	63530210	L.H. OUTER REAR VIEW MIRROR	63530210 L.H. OUTER REAR VIEW MIRROR MIRROR	-	1	Enquire
-	65080700	GASKET FOR L.H. DOOR OPENING	65080700 GASKET FOR L.H. DOOR OPENING	-	1	Enquire
-	65080600	GASKET FOR R.H. DOOR OPENING	65080600 GASKET FOR R.H. DOOR OPENING	-	1	Enquire
-	64694710	L.H. DOOR	64694710 L.H. DOOR	-	1	Enquire
1	64694610	R.H. DOOR	64694610 R.H. DOOR	-	1	Enquire
2	65080600	GASKET FOR R.H. DOOR OPENING	65080600 GASKET FOR R.H. DOOR OPENING Not as spare part now / Replaced by 65080600	-	1	Enquire
3	64515300	UNDER DOOR GASKET	64515300 UNDER DOOR GASKET	-	2	Enquire
4	64764210	R.H. OUTER REAR VIEW MIRROR	64764210 R.H. OUTER REAR VIEW MIRROR MIRROR / Not for USA	-	1	Enquire
5	147985	NUT	147985 NUT	-	4	Enquire
6	13550301	WASHER	13550301 WASHER	-	4	Enquire
7	64764000	R.H. UPPER SILENCER	64764000 R.H. UPPER SILENCER	-	1	Enquire
8	64924100	R.H. LOWER SILENCER	64924100 R.H. LOWER SILENCER	-	1	Enquire
9	63537300	R.H. DOOR INNER PANEL	63537300 R.H. DOOR INNER PANEL	-	1	Enquire
10	64868200	COVERED R.H. HANDLE	64868200 COVERED R.H. HANDLE	-	1	Enquire
11	147365	SCREW	147365 SCREW	-	6	Enquire
12	62769800	WASHER	62769800 WASHER	-	2	Enquire
13	12677811	NUT	12677811 NUT	-	2	Enquire
14	64868600	COVERED R.H. UTILITY POCKET	64868600 COVERED R.H. UTILITY POCKET POCKET	-	1	Enquire
15	14441037	SCREW	14441037 SCREW	-	6	Enquire
16	161492	DOOR PROTECTION	161492 DOOR PROTECTION	-	8	Enquire
17	62584500	UNDER-HANDLE RING	62584500 UNDER-HANDLE RING	-	2	Enquire
18	64976800	SPACER	64976800 SPACER	-	2	Enquire
19	64869200	GASKET	64869200 GASKET	-	2	Enquire
20	64924300	R.H. INNER PANNEL INSULATION	64924300 R.H. INNER PANNEL INSULATION	-	1	Enquire
21	64924500	R.H. INNER CENTRAL PANNEL INSULATION	64924500 R.H. INNER CENTRAL PANNEL INSULATION INSULATION	-	1	Enquire
22	62955600	GASKET	62955600 GASKET	-	2	Enquire
23	169813	SCREW M5 X 12	169813 SCREW M5 X 12	-	18	Enquire
24	65085600	R.H. CARPET SHIELD UNDER GASKET	65085600 R.H. CARPET SHIELD UNDER GASKET	-	1	Enquire
25	15914977	SCREW -Valid for GTS-	15914977 SCREW -Valid for GTS-	-	6	Enquire
