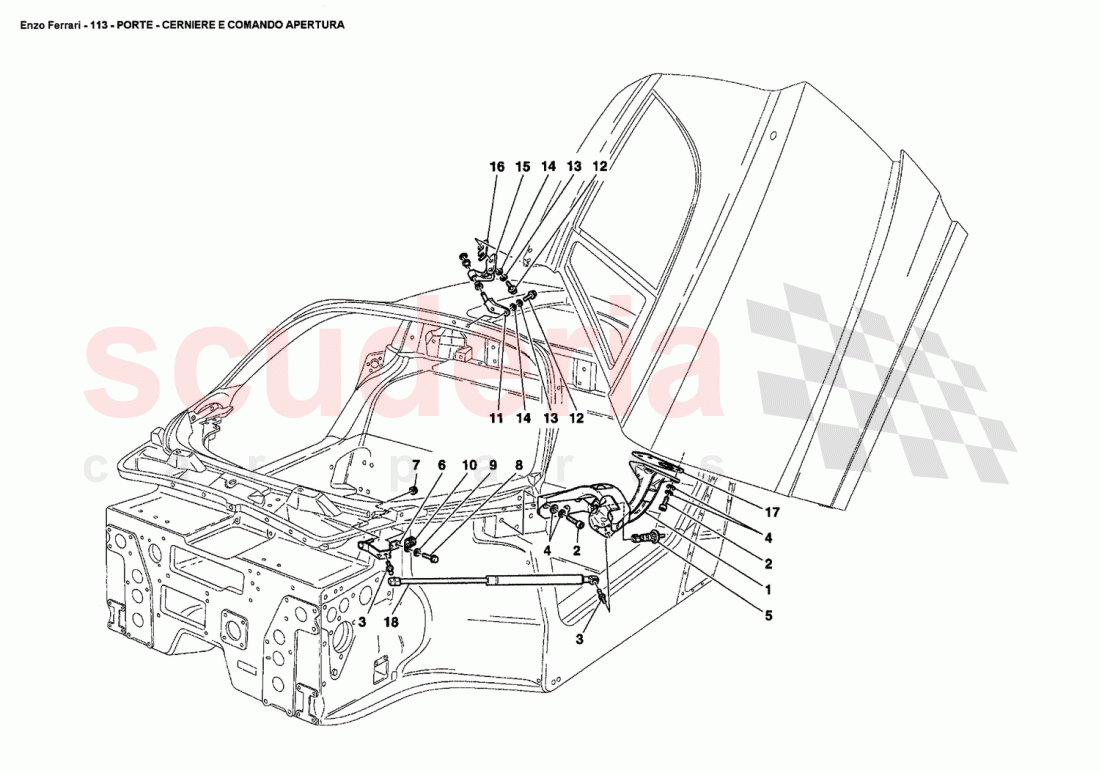

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	66926900	L.H. COMPLETE LOWER HINGE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14307834	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	85216400	PIN WITH WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	126648	WASHER D.10.5-21 X 2	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	179697	PILLAR SWITCH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	66653800	L.H. BRACKET FOR STABILUS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	231619	SOCKET HEAD SCREW M6 X 22 WITH WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14498801	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10441290	BRACKET WITH SHEATH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	66537200	L.H. FIXED HINGE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	67254100	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12620477	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10519478	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	68133400	L.H. MOBILE HINGE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	66560200	THICKNESS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	66560100	THICKNESS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	67500300	GAS SPRING	Enquire	To Order

View All

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	68254200	R.H. MOBILE HINGE	68254200 R.H. MOBILE HINGE	-	1	Enquire
-	66539600	R.H. FIXED HINGE	66539600 R.H. FIXED HINGE	-	1	Enquire
-	66653700	R.H. BRACKET FOR STABILUS	66653700 R.H. BRACKET FOR STABILUS	-	1	Enquire
-	66926800	R.H. COMPLETE LOWER HINGE	66926800 R.H. COMPLETE LOWER HINGE	-	1	Enquire
1	66926900	L.H. COMPLETE LOWER HINGE	66926900 L.H. COMPLETE LOWER HINGE	-	1	Enquire
2	14307834	SCREW	14307834 SCREW	-	6	Enquire
3	85216400	PIN WITH WASHER	85216400 PIN WITH WASHER	-	4	Enquire
4	126648	WASHER D.10.5-21 X 2	126648 WASHER D.10.5-21 X 2	-	12	Enquire
5	179697	PILLAR SWITCH	179697 PILLAR SWITCH	-	2	Enquire
6	66653800	L.H. BRACKET FOR STABILUS	66653800 L.H. BRACKET FOR STABILUS	-	1	Enquire
7	14059290	FLANGED NUT M6	14059290 FLANGED NUT M6	-	2	Enquire
8	231619	SOCKET HEAD SCREW M6 X 22 WITH WASHER	231619 SOCKET HEAD SCREW M6 X 22 WITH WASHER	-	2	Enquire
9	14498801	WASHER	14498801 WASHER	-	2	Enquire
10	10441290	BRACKET WITH SHEATH	10441290 BRACKET WITH SHEATH	-	2	Enquire
11	66537200	L.H. FIXED HINGE	66537200 L.H. FIXED HINGE	-	1	Enquire
12	67254100	SCREW	67254100 SCREW	-	8	Enquire
13	12620477	WASHER	12620477 WASHER	-	8	Enquire
14	10519478	WASHER	10519478 WASHER	-	8	Enquire
15	68133400	L.H. MOBILE HINGE	68133400 L.H. MOBILE HINGE	-	1	Enquire
16	66560200	THICKNESS	66560200 THICKNESS	-	2	Enquire
17	66560100	THICKNESS	66560100 THICKNESS	-	2	Enquire
18	67500300	GAS SPRING	67500300 GAS SPRING	-	2	Enquire
