Ferrari Enzo - STEERING COLUMN

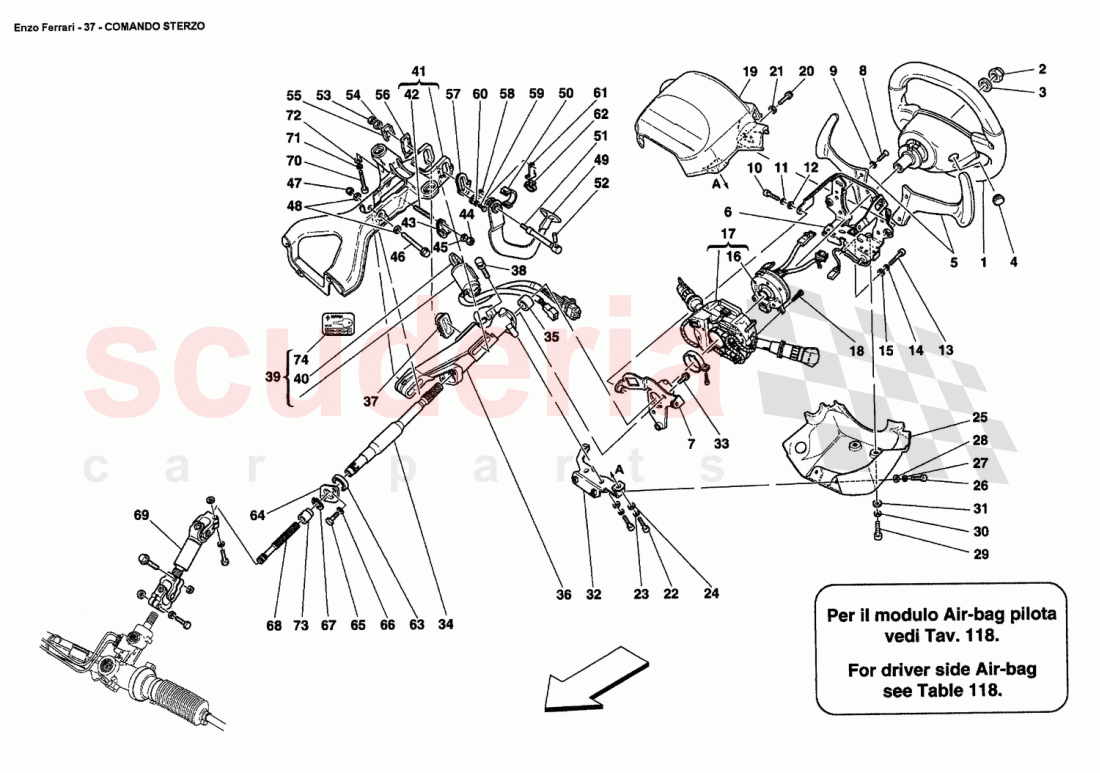

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	675560	COMPLETE AIR-BAG STEERING WHEEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	101648	Ring nut	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10730921	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	185486	CAP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	197873	COUPLE LEVERS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	185463	GEAR BOX CONTROL BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	190533	BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13308977	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12606673	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11566227	SCREW	Enquire	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	62769800	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12620377	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14304521	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	62769800	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12638124	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	194665	SPIRAL CONTACT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	185462	UNHOOK DEVIATION ASSEMBLY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13271914	SCREW -Valid for "60Â°anniversario"-	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	66576700	UPPER COLUMN COVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	62940900	Allen Head Screw M6 x 15	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12644478	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11566227	SCREW	Enquire	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	62769800	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12620377	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	66576800	LOWER COLUMN COVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11566227	SCREW	Enquire	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	62769800	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12620377	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14305234	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12644477	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12620477	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	67041000	COLUMN COVER FIXING BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	62797600	Allen Bolt Countersunk M6 x 20	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	183994	UPPER SHAFT FOR STEERING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	171539	ROLLER BEARING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	171516	COLUMN SUPPORT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	171501	SPLINED FIXED SLIPPER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	172563	ANTI-THEFT SYSTEM FASTENER SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	70000972	LOCKS SET COMPLETED WITH STEERING LOCK AND KEY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	198026	BLANK KEY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	171505	STEERING COLUMN SUPPORT BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11001024	Stud	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10441290	BRACKET WITH SHEATH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	319201	FUEL FILLER PIPE ASSEMBLY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13577707	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	180632	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	104030	NYLOC NUT M8 X 1.25 X 9.5	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12625224	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	675568	COVERED LEVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	171531	PIN RETENTION SPRING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	171503	ARM PIN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10336630	PIN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	147985	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	171542	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	171529	MOBILE SPLINED SLIPPER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	171502	SLIPPER SPRING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	171544	ARM SIDE SLIPPER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	171523	PLATE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10977724	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11181574	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	178430	FASTENER CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	171540	BALL BEARING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	177645	PLATE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10902224	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11181874	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11067376	SEEGER RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	186930	COLUMN LOWER SHAFT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	171528	STEERING CARDAN SHAFT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14305324	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11193274	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12646604	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	183995	RING NUT	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	675560	COMPLETE AIR-BAG STEERING WHEEL	675560 COMPLETE AIR-BAG STEERING WHEEL	-	1	Enquire
2	101648	Ring nut	101648 Ring nut	-	1	Enquire
3	10730921	WASHER	10730921 WASHER	-	1	Enquire
4	185486	CAP	185486 CAP	-	-	Enquire
5	197873	COUPLE LEVERS	197873 COUPLE LEVERS	-	1	Enquire
6	185463	GEAR BOX CONTROL BRACKET	185463 GEAR BOX CONTROL BRACKET	-	1	Enquire
7	190533	BRACKET	190533 BRACKET	-	1	Enquire
8	13308977	SCREW	13308977 SCREW	-	4	Enquire
9	12606673	WASHER	12606673 WASHER	-	4	Enquire
10	11566227	SCREW ARRIVING SOON	11566227 SCREW ARRIVING SOON	-	2	Enquire
11	62769800	WASHER	62769800 WASHER	-	2	Enquire
12	12620377	WASHER	12620377 WASHER	-	2	Enquire
13	14304521	SCREW	14304521 SCREW	-	1	Enquire
14	62769800	WASHER	62769800 WASHER	-	1	Enquire
15	12638124	WASHER	12638124 WASHER	-	1	Enquire
16	194665	SPIRAL CONTACT	194665 SPIRAL CONTACT	-	1	Enquire
17	185462	UNHOOK DEVIATION ASSEMBLY	185462 UNHOOK DEVIATION ASSEMBLY	-	1	Enquire
18	13271914	SCREW -Valid for "60Â°anniversario"-	13271914 SCREW -Valid for "60Â°anniversario"-	-	1	Enquire
19	66576700	UPPER COLUMN COVER	66576700 UPPER COLUMN COVER	-	1	Enquire
20	62940900	Allen Head Screw M6 x 15	62940900 Allen Head Screw M6 x 15	-	2	Enquire
21	12644478	WASHER	12644478 WASHER	-	2	Enquire
22	11566227	SCREW ARRIVING SOON	11566227 SCREW ARRIVING SOON	-	2	Enquire
23	62769800	WASHER	62769800 WASHER	-	2	Enquire
24	12620377	WASHER	12620377 WASHER	-	2	Enquire
25	66576800	LOWER COLUMN COVER	66576800 LOWER COLUMN COVER	-	1	Enquire
26	11566227	SCREW ARRIVING SOON	11566227 SCREW ARRIVING SOON	-	2	Enquire
27	62769800	WASHER	62769800 WASHER	-	2	Enquire
28	12620377	WASHER	12620377 WASHER	-	2	Enquire
29	14305234	SCREW	14305234 SCREW	-	2	Enquire
30	12644477	WASHER	12644477 WASHER	-	2	Enquire
31	12620477	WASHER	12620477 WASHER	-	2	Enquire
32	67041000	COLUMN COVER FIXING BRACKET	67041000 COLUMN COVER FIXING BRACKET	-	1	Enquire
33	62797600	Allen Bolt Countersunk M6 x 20	62797600 Allen Bolt Countersunk M6 x 20	-	2	Enquire
34	183994	UPPER SHAFT FOR STEERING	183994 UPPER SHAFT FOR STEERING CONTROL	-	1	Enquire
35	171539	ROLLER BEARING	171539 ROLLER BEARING	-	1	Enquire
36	171516	COLUMN SUPPORT	171516 COLUMN SUPPORT	-	1	Enquire
37	171501	SPLINED FIXED SLIPPER	171501 SPLINED FIXED SLIPPER	-	1	Enquire
38	172563	ANTI-THEFT SYSTEM FASTENER SCREW	172563 ANTI-THEFT SYSTEM FASTENER SCREW	-	1	Enquire
39	70000972	LOCKS SET COMPLETED WITH STEERING LOCK AND KEY	70000972 LOCKS SET COMPLETED WITH STEERING LOCK AND KEY WITH STEERING / LOCK AND KEY	-	1	Enquire
40	198026	BLANK KEY	198026 BLANK KEY	-	-	Enquire
41	171505	STEERING COLUMN SUPPORT BRACKET	171505 STEERING COLUMN SUPPORT BRACKET BRACKET	-	1	Enquire
42	11001024	Stud	11001024 Stud	-	1	Enquire
43	10441290	BRACKET WITH SHEATH	10441290 BRACKET WITH SHEATH	-	1	Enquire
44	319201	FUEL FILLER PIPE ASSEMBLY	319201 FUEL FILLER PIPE ASSEMBLY	-	1	Enquire
45	13577707	WASHER	13577707 WASHER	-	1	Enquire
46	180632	SCREW	180632 SCREW	-	1	Enquire
47	104030	NYLOC NUT M8 X 1.25 X 9.5	104030 NYLOC NUT M8 X 1.25 X 9.5	-	1	Enquire
48	12625224	WASHER	12625224 WASHER	-	2	Enquire
49	675568	COVERED LEVER	675568 COVERED LEVER	-	1	Enquire
50	171531	PIN RETENTION SPRING	171531 PIN RETENTION SPRING	-	1	Enquire
51	171503	ARM PIN	171503 ARM PIN	-	1	Enquire
52	10336630	PIN	10336630 PIN	-	1	Enquire
53	147985	NUT	147985 NUT	-	1	Enquire
54	171542	NUT	171542 NUT	-	1	Enquire
55	171529	MOBILE SPLINED SLIPPER	171529 MOBILE SPLINED SLIPPER	-	1	Enquire
56	171502	SLIPPER SPRING	171502 SLIPPER SPRING	-	1	Enquire
57	171544	ARM SIDE SLIPPER	171544 ARM SIDE SLIPPER	-	1	Enquire
58	171523	PLATE	171523 PLATE	-	1	Enquire
59	10977724	SCREW	10977724 SCREW	-	2	Enquire
60	11181574	WASHER	11181574 WASHER	-	2	Enquire
61	177977	PLATE	177977 PLATE	-	1	Enquire
62	178430	FASTENER CLIP	178430 FASTENER CLIP	-	1	Enquire
63	171540	BALL BEARING	171540 BALL BEARING	-	1	Enquire
64	177645	PLATE	177645 PLATE	-	1	Enquire
65	10902224	SCREW	10902224 SCREW	-	2	Enquire
66	11181874	WASHER	11181874 WASHER	-	2	Enquire
67	11067376	SEEGER RING	11067376 SEEGER RING	-	1	Enquire
68	186930	COLUMN LOWER SHAFT	186930 COLUMN LOWER SHAFT	-	1	Enquire
69	171528	STEERING CARDAN SHAFT	171528 STEERING CARDAN SHAFT TRASMISSION	-	1	Enquire
70	14305324	SCREW	14305324 SCREW	-	2	Enquire
71	11193274	WASHER	11193274 WASHER	-	2	Enquire
72	12646604	WASHER	12646604 WASHER	-	2	Enquire
73	183995	RING NUT	183995 RING NUT	-	1	Enquire
