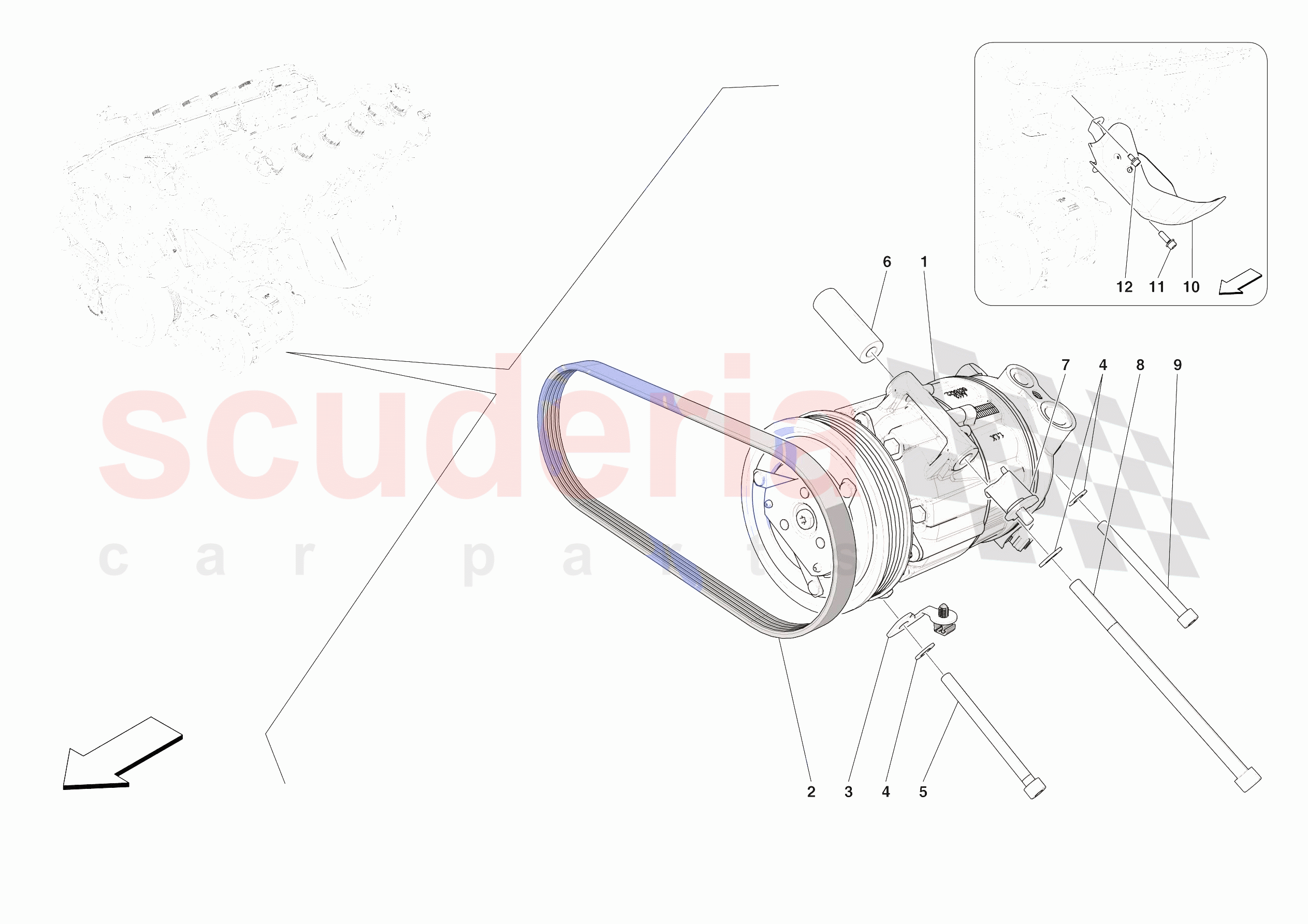

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	802718	AC SYSTEM COMPRESSOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	938134	BRACKET COMPL. WITH CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11193874	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14302024	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	268408	SPACER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	941058	COMPRESSOR PIPE MOUNTING BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	268409	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14307124	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	339133	COMPRESSOR HEAT SHIELD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	84317700	SCREW 8 X 30	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	248334	SCREW M6 X 14MM	Enquire	To Order

View All

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
0001	802718	AC SYSTEM COMPRESSOR	802718 AC SYSTEM COMPRESSOR	-	1	Enquire
0002	895330	BELT	895330 BELT Applies until depletion	-	1	Enquire
0002	905873	BELT	905873 BELT Applicable after depletion of 895330	-	1	Enquire
0003	938134	BRACKET COMPL. WITH CLIP	938134 BRACKET COMPL. WITH CLIP	-	1	Enquire
0004	11193874	WASHER	11193874 WASHER	-	3	Enquire
0005	14302024	SCREW	14302024 SCREW M8 X 95	-	1	Enquire
0006	268408	SPACER	268408 SPACER	-	1	Enquire
0007	941058	COMPRESSOR PIPE MOUNTING BRACKET	941058 COMPRESSOR PIPE MOUNTING BRACKET	-	1	Enquire
0008	268409	SCREW	268409 SCREW M8 X 145	-	1	Enquire
0009	14307124	SCREW	14307124 SCREW M8 X 90	-	1	Enquire
0010	339133	COMPRESSOR HEAT SHIELD	339133 COMPRESSOR HEAT SHIELD	-	1	Enquire
0011	84317700	SCREW 8 X 30	84317700 SCREW 8 X 30 M8 X 25	-	1	Enquire
0012	248334	SCREW M6 X 14MM	248334 SCREW M6 X 14MM M6 X 12	-	1	Enquire
