Name: ENGINE COVERS
Rating: 5.0 (1 reviews)

ENGINE COVERS of Ferrari Ferrari Daytona SP3 Europe

View All

Ferrari Daytona SP3 Europe - ENGINE COVERS

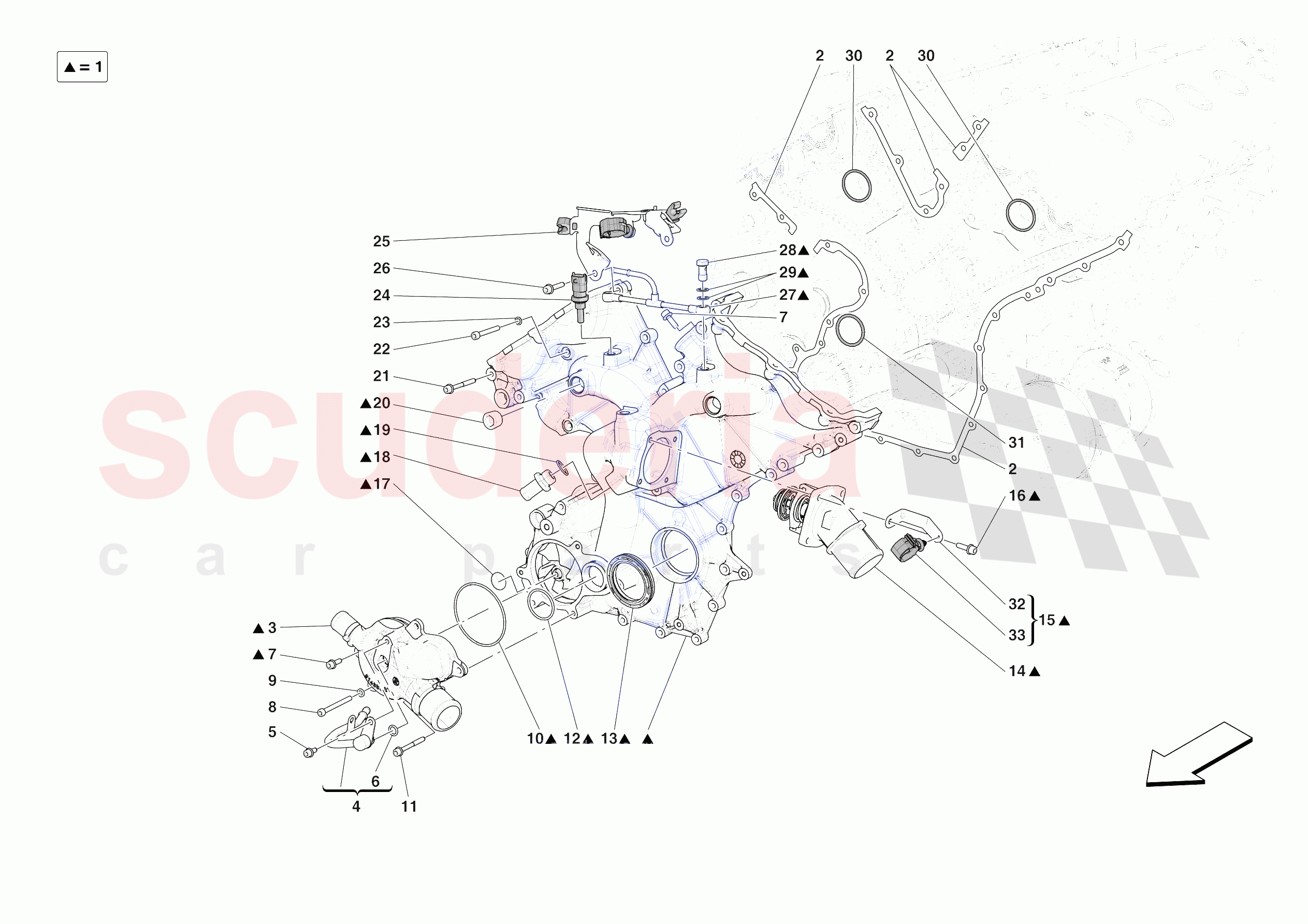

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	834547	TIMING SYSTEM COVER COMPL. WITH WATER	$2,972.95	To Order
	989134	TIMING SYSTEM COVER COMPL. WITH WATER	$7,601.84	To Order

Photo	Part No	Description	Price (each)	Stock
	893579	GASKET BETWEEN CRANKCASE AND FRONT COVER	$62.56	To Order

Photo	Part No	Description	Price (each)	Stock
	905725	WATER PUMP COVER	$561.59	To Order

Photo	Part No	Description	Price (each)	Stock
	905726	WATER PUMP HEADER TANK FILL PIPE	$240.67	To Order

Photo	Part No	Description	Price (each)	Stock
	248334	SCREW	$0.68	To Order

Photo	Part No	Description	Price (each)	Stock
	276337	GASKET	$14.13	To Order

Photo	Part No	Description	Price (each)	Stock
	231619	SCREW	$0.31	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	14303834	SCREW	$1.57	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	14499304	WASHER	$0.79	To Order

Photo	Part No	Description	Price (each)	Stock
	253797	GASKET	$6.03	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	255494	SCREW	$9.71	To Order

Photo	Part No	Description	Price (each)	Stock
	769790	O-RING	$9.24	To Order

Photo	Part No	Description	Price (each)	Stock
	210359	GASKET	$40.10	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	262913	THERMOSTAT/PRESSURE SWITCH	$272.77	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	741258	COMPL. BRAKE SERVO PIPE MOUNTING BRACKET	$20.29	To Order

Photo	Part No	Description	Price (each)	Stock
	231619	SCREW	$0.31	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	10159001	PLUG	$0.45	To Order

Photo	Part No	Description	Price (each)	Stock
	253823	CONNECTOR	$115.48	To Order

Photo	Part No	Description	Price (each)	Stock
	11270550	O-RING	$0.97	To Order

Photo	Part No	Description	Price (each)	Stock
	14325240	THREADED PLUG	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	231625	SCREW	$0.66	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	14305924	SCREW	$0.16	To Order

Photo	Part No	Description	Price (each)	Stock
	216292	GASKET	$3.84	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	180137	TEMPERATURE SENSOR	$28.72	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	871762	COMPL. MOUNTING BRACKET	$66.70	To Order

Photo	Part No	Description	Price (each)	Stock
	231620	SCREW	$0.32	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	211847	HOSE	$158.61	To Order

Photo	Part No	Description	Price (each)	Stock
	10260160	Copper Washer D. 10 - 14 x 1	$0.84	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	183010	O-RING	$1.60	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	289278	O-RING	$3.16	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	741265	BRAKE SERVO PIPE MOUNTING BRACKET	$15.24	To Order

Photo	Part No	Description	Price (each)	Stock
	779282	COMPL. CLIP	$1.96	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
0001	834547	TIMING SYSTEM COVER COMPL. WITH WATER	834547 TIMING SYSTEM COVER COMPL. WITH WATER Applies until depletion	$2,972.95	1
0001	989134	TIMING SYSTEM COVER COMPL. WITH WATER	989134 TIMING SYSTEM COVER COMPL. WITH WATER Applicable after depletion of 834547	$7,601.84	1
0002	893579	GASKET BETWEEN CRANKCASE AND FRONT COVER	893579 GASKET BETWEEN CRANKCASE AND FRONT COVER Also included in engine gasket set	$62.56	1
0003	905725	WATER PUMP COVER	905725 WATER PUMP COVER	$561.59	1
0004	905726	WATER PUMP HEADER TANK FILL PIPE	905726 WATER PUMP HEADER TANK FILL PIPE	$240.67	1
0005	248334	SCREW	248334 SCREW M6 X 14	$0.68	2
0006	276337	GASKET	276337 GASKET	$14.13	1
0007	231619	SCREW IN STOCK	231619 SCREW M6 X 18 IN STOCK	$0.31	2
0008	14303834	SCREW IN STOCK	14303834 SCREW M6 X 60 IN STOCK	$1.57	1
0009	14499304	WASHER	14499304 WASHER	$0.79	1
0010	253797	GASKET IN STOCK	253797 GASKET IN STOCK	$6.03	1
0011	255494	SCREW	255494 SCREW M6 X 55	$9.71	1
0012	769790	O-RING	769790 O-RING	$9.24	1
0013	210359	GASKET ARRIVING SOON	210359 GASKET ARRIVING SOON	$40.10	1
0014	262913	THERMOSTAT/PRESSURE SWITCH ARRIVING SOON	262913 THERMOSTAT/PRESSURE SWITCH ARRIVING SOON	$272.77 MSRP: ~~360.40~~ (24.3% off)	1
0015	741258	COMPL. BRAKE SERVO PIPE MOUNTING BRACKET	741258 COMPL. BRAKE SERVO PIPE MOUNTING BRACKET Applies until depletion	$20.29	1
0016	231619	SCREW IN STOCK	231619 SCREW M6 X 20 IN STOCK	$0.31	5
0017	10159001	PLUG	10159001 PLUG Applies until depletion	$0.45	1
0018	253823	CONNECTOR	253823 CONNECTOR	$115.48	1
0019	11270550	O-RING	11270550 O-RING	$0.97	1
0020	14325240	THREADED PLUG	14325240 THREADED PLUG M20 X 1.5	-	2	Enquire
0021	231625	SCREW IN STOCK	231625 SCREW M6 X 50 IN STOCK	$0.66	12
0022	14305924	SCREW	14305924 SCREW M6 X 45	$0.16	4
0023	216292	GASKET IN STOCK	216292 GASKET Also included in engine gasket set IN STOCK	$3.84	4
0024	180137	TEMPERATURE SENSOR IN STOCK	180137 TEMPERATURE SENSOR IN STOCK	$28.72 MSRP: ~~32.99~~ (12.9% off)	1
0025	871762	COMPL. MOUNTING BRACKET	871762 COMPL. MOUNTING BRACKET	$66.70	1
0026	231620	SCREW IN STOCK	231620 SCREW M6 X 30 IN STOCK	$0.32 MSRP: ~~0.35~~ (8.6% off)	12
0028	211847	HOSE	211847 HOSE	$158.61	2
0029	10260160	Copper Washer D. 10 - 14 x 1 IN STOCK	10260160 Copper Washer D. 10 - 14 x 1 IN STOCK	$0.84 MSRP: ~~0.90~~ (6.7% off)	4
0030	183010	O-RING IN STOCK	183010 O-RING Also included in engine gasket set IN STOCK	$1.60 MSRP: ~~2.89~~ (44.6% off)	2
0031	289278	O-RING IN STOCK	289278 O-RING Also included in engine gasket set IN STOCK	$3.16	1
0032	741265	BRAKE SERVO PIPE MOUNTING BRACKET	741265 BRAKE SERVO PIPE MOUNTING BRACKET	$15.24	1
0033	779282	COMPL. CLIP	779282 COMPL. CLIP	$1.96	1
