ENGINE INTAKE DUCT

Find Your Part

Ferrari Daytona SP3 USA - ENGINE INTAKE DUCT

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
789009 INTAKE MANIFOLD $9,637.12 To Order
Photo Part No Description Price (each) Stock
878388 INTAKE TRUMPETS $487.36 To Order
Photo Part No Description Price (each) Stock
964990 INTAKE TRUMPET GUIDE ROD $200.67 To Order
Photo Part No Description Price (each) Stock
909484 RECIRCULATING BEARING $39.47 To Order
Photo Part No Description Price (each) Stock
14452681 GASKET $0.24 To Order
Photo Part No Description Price (each) Stock
231622 SCREW $0.36 To Order
Photo Part No Description Price (each) Stock
329629 PLASTIC BUSH $0.16 To Order
Photo Part No Description Price (each) Stock
953682 PLUG $41.56 To Order
Photo Part No Description Price (each) Stock
11058076 SEEGER RING Enquire To Order
Photo Part No Description Price (each) Stock
254644 O-RING $0.39 To Order
Photo Part No Description Price (each) Stock
313930 POSITION SENSOR $303.92 To Order
Photo Part No Description Price (each) Stock
826323 OIL RETURN PIPE FROM MANIFOLD TO HEAD $272.34 To Order
Photo Part No Description Price (each) Stock
826344 OIL DELIVERY PIPE FROM CRANKCASE TO MANIFOLD $272.34 To Order
Photo Part No Description Price (each) Stock
231619 SCREW $0.31 To Order
Photo Part No Description Price (each) Stock
287722 O-RING $6.97 To Order
Photo Part No Description Price (each) Stock
14303123 SCREW $0.06 To Order
Photo Part No Description Price (each) Stock
919851 TRUMPET ACTUATOR MOUNT $444.36 To Order
Photo Part No Description Price (each) Stock
919703 COMPLETE PISTON $229.33 To Order
Photo Part No Description Price (each) Stock
903872 ACTUATOR SLEEVE $130.43 To Order
Photo Part No Description Price (each) Stock
903893 COMPL. PLUG $272.34 To Order
Photo Part No Description Price (each) Stock
325432 BUSH $6.84 To Order
Photo Part No Description Price (each) Stock
325535 RUBBER CABLE GROMMET $18.62 To Order
Photo Part No Description Price (each) Stock
14059290 FLANGED NUT M6 $1.51 To Order
Photo Part No Description Price (each) Stock
14326101 THREADED PLUG $1.26 To Order
Photo Part No Description Price (each) Stock
911648 ACTUATOR GASKET $9.40 To Order
Photo Part No Description Price (each) Stock
16286124 SCREW $0.37 To Order
Photo Part No Description Price (each) Stock
255494 SCREW $9.60 To Order
Photo Part No Description Price (each) Stock
801187 OIL PRESSURE REGULATOR VALVE $240.67 To Order
Photo Part No Description Price (each) Stock
16281827 SCREW $0.23 To Order
Photo Part No Description Price (each) Stock
11181574 WASHER $0.02 To Order
Photo Part No Description Price (each) Stock
907929 COMPL. RH INTAKE PLENUM $25,846.64 To Order
Photo Part No Description Price (each) Stock
907930 COMPL. LH INTAKE PLENUM $25,846.64 To Order
Photo Part No Description Price (each) Stock
268877 CONNECTOR $72.19 To Order
Photo Part No Description Price (each) Stock
868801 RH INTAKE MANIFOLD PLENUM GASKET $163.09 To Order
899932 RH INTAKE MANIFOLD PLENUM GASKET $157.66 To Order
Photo Part No Description Price (each) Stock
868802 LH INTAKE MANIFOLD PLENUM GASKET $163.09 To Order
899933 LH INTAKE MANIFOLD PLENUM GASKET $157.66 To Order
Photo Part No Description Price (each) Stock
243207 CONNECTOR $22.45 To Order
Photo Part No Description Price (each) Stock
243208 CONNECTOR $25.66 To Order
Photo Part No Description Price (each) Stock
248334 SCREW $0.68 To Order
Photo Part No Description Price (each) Stock
123475 GASKET $4.07 To Order
Photo Part No Description Price (each) Stock
903135 STUD BOLT $57.33 To Order
Photo Part No Description Price (each) Stock
11197774 WASHER $0.06 To Order
Photo Part No Description Price (each) Stock
870122 SCREW $1.36 To Order
Photo Part No Description Price (each) Stock
316503 GASKET $22.21 To Order
Photo Part No Description Price (each) Stock
268875 CONNECTOR $39.17 To Order
219786 THREADED PLUG $16.65 To Order
Photo Part No Description Price (each) Stock
14497704 WASHER $0.65 To Order
View All

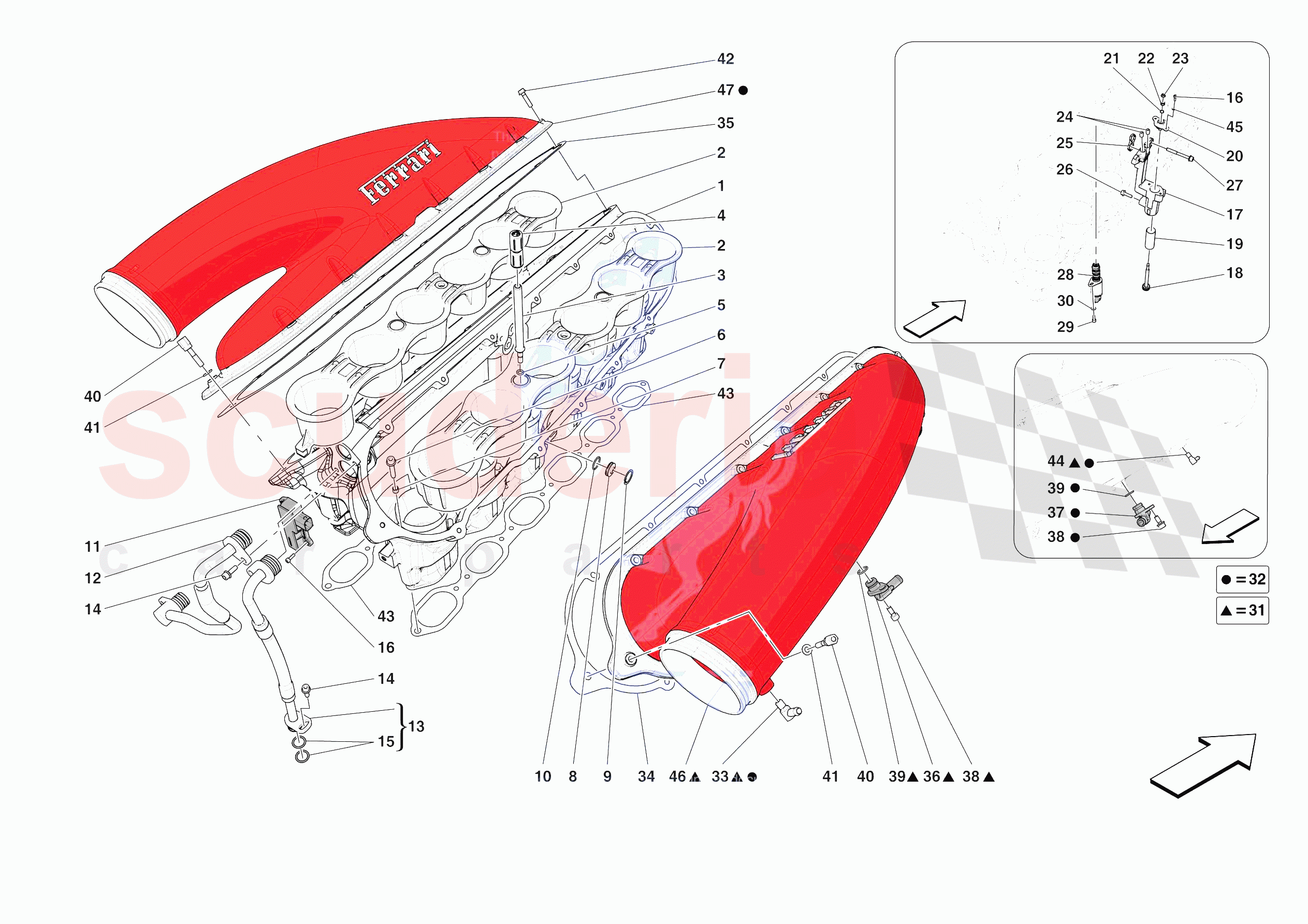

ENGINE INTAKE DUCT of Ferrari Ferrari Daytona SP3 USA Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
0001 789009
INTAKE MANIFOLD 		$9,637.12 1
0002 878388
INTAKE TRUMPETS 		$487.36 1
0003 964990
INTAKE TRUMPET GUIDE ROD 		$200.67 4
0004 909484
RECIRCULATING BEARING 		$39.47 4
0005 14452681
GASKET
Also included in engine gasket set 		$0.24 4
0006 231622
SCREW
M6 X 35 		$0.36 (28% off) 16
0007 329629
PLASTIC BUSH 		$0.16 16
0008 953682
PLUG 		$41.56 2
0009 11058076
SEEGER RING 		- 2 Enquire
0010 254644
O-RING 		$0.39 (22% off) 2
0011 313930
POSITION SENSOR 		$303.92 2
0012 826323
OIL RETURN PIPE FROM MANIFOLD TO HEAD 		$272.34 1
0013 826344
OIL DELIVERY PIPE FROM CRANKCASE TO MANIFOLD 		$272.34 1
0014 231619
SCREW
M6 X 18 		$0.31 4
0015 287722
O-RING 		$6.97 6
0016 14303123
SCREW
M4 X 12 		$0.06 12
0017 919851
TRUMPET ACTUATOR MOUNT 		$444.36 1
0018 919703
COMPLETE PISTON 		$229.33 2
0019 903872
ACTUATOR SLEEVE 		$130.43 2
0020 903893
COMPL. PLUG 		$272.34 2
0021 325432
BUSH 		$6.84 2
0022 325535
RUBBER CABLE GROMMET 		$18.62 2
0023 14059290
FLANGED NUT M6 		$1.51 2
0024 14326101
THREADED PLUG 		$1.26 (23.6% off) 8
0025 911648
ACTUATOR GASKET
Also included in engine gasket set 		$9.40 2
0026 16286124
SCREW
M6 X 20 		$0.37 2
0027 255494
SCREW
M6 X 55 		$9.60 2
0028 801187
OIL PRESSURE REGULATOR VALVE 		$240.67 2
0029 16281827
SCREW
M5 X 14 		$0.23 2
0030 11181574
WASHER 		$0.02 2
0031 907929
COMPL. RH INTAKE PLENUM
Carbon 		$25,846.64 1
0032 907930
COMPL. LH INTAKE PLENUM
Carbon 		$25,846.64 1
0033 268877
CONNECTOR 		$72.19 2
0034 868801
RH INTAKE MANIFOLD PLENUM GASKET
Also included in engine gasket set; No longer supplied - Replaced by 899932 		$163.09 1
0034 899932
RH INTAKE MANIFOLD PLENUM GASKET
Also included in engine gasket set 		$157.66 1
0035 868802
LH INTAKE MANIFOLD PLENUM GASKET
Also included in engine gasket set; No longer supplied - Replaced by 899933 		$163.09 1
0035 899933
LH INTAKE MANIFOLD PLENUM GASKET
Also included in engine gasket set 		$157.66 1
0036 243207
CONNECTOR
On RH plenum 		$22.45 1
0037 243208
CONNECTOR
On LH plenum 		$25.66 1
0038 248334
SCREW
M6 X 14 		$0.68 2
0039 123475
GASKET
Also included in engine gasket set 		$4.07 (2.6% off) 2
0040 903135
STUD BOLT 		$57.33 2
0041 11197774
WASHER 		$0.06 (80% off) 2
0042 870122
SCREW 		$1.36 26
0043 316503
GASKET
Also included in engine gasket set 		$22.21 2
0044 268875
CONNECTOR
Applicable for Chile 		$39.17 2
0044 219786
THREADED PLUG
Not applicable for Chile 		$16.65 2
0045 14497704
WASHER 		$0.65 4
