CENTRE TUNNEL AND CONSOLE of Ferrari Ferrari 812 Competizione A Europe RH

View All

Ferrari 812 Competizione A Europe RH - CENTRE TUNNEL AND CONSOLE

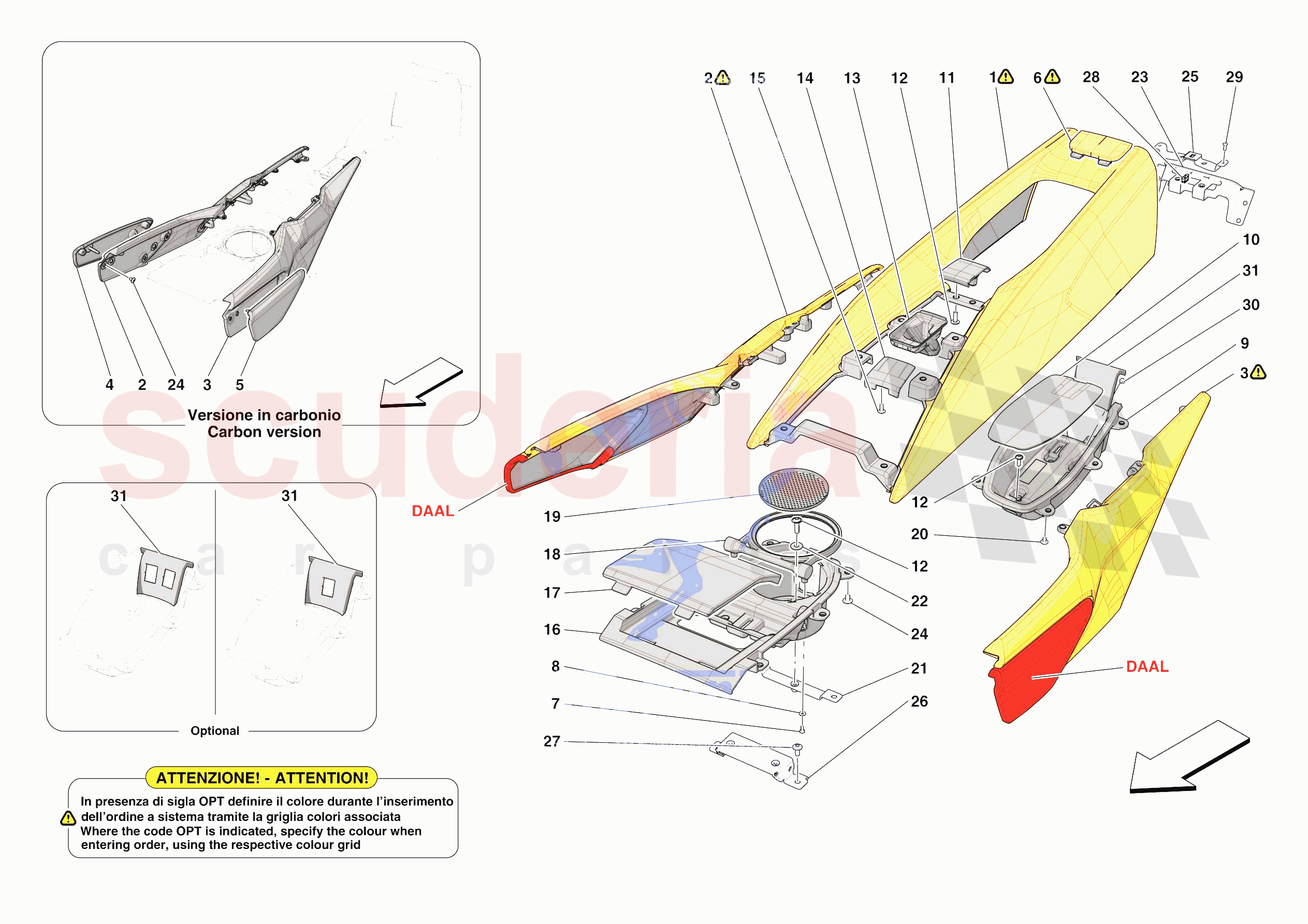

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	865906	COMPL. REAR CENTRE CONSOLE UNIT STRUCTURE	Enquire	To Order
	800255	COMPL. REAR CENTRE CONSOLE UNIT STRUCTURE	Enquire	To Order
	70008099	COMPL. REAR CENTRE CONSOLE UNIT STRUCTURE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	960946	COMPL. RH FRONT TUNNEL UNIT	Enquire	To Order
	967282	RH UNIT STRUCTURE	Enquire	To Order
	770486	RH UNIT STRUCTURE	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	960941	COMPL. LH FRONT TUNNEL CONSOLE UNIT	Enquire	To Order
	967200	LH UNIT STRUCTURE	Enquire	To Order
	770487	LH UNIT STRUCTURE	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	967225	COMPL. RH FRONT TUNNEL CONSOLE UNIT KNEE CUSHION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	964866	COMPL. LH FRONT TUNNEL CONSOLE UNIT KNEE CUSHION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	865935	COMPL. REAR CENTRE CONSOLE LID	Enquire	To Order
	800588	COMPL. REAR CENTRE CONSOLE LID	Enquire	To Order
	70008100	COMPL. REAR CENTRE CONSOLE LID	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14418074	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12639901	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	954162	ODDMENTS STORAGE BIN	Enquire	To Order
	770142	ODDMENTS STORAGE BIN	Enquire	To Order
	770142	ODDMENTS STORAGE BIN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	960924	BASE SUBSTRUCTURE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	964845	REAR CENTRE CONSOLE UNIT MAT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	85833700	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	966333	KEY HOLDER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	964844	FRONT CENTRE CONSOLE UNIT MAT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	88822200	SCREW TORX HEAD M4 X 10MM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	961081	COMPL. CUP HOLDER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	954067	FRONT TRIM PANEL SUBSTRUCTURE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	879820	COMPL. CUP HOLDER RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	813697	CUP HOLDER BASE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	85833700	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	964840	BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12647724	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	855323	CENTRE CONSOLE UNIT FASTENER BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	85833700	SCREW	Enquire	To Order
	85833700	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	889840	REAR BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	954174	FRONT BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	85833700	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	967402	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	85833700	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	769791	PLATE	Enquire	To Order
	769988	PLATE	Enquire	To Order
	769610	PLATE	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
0001	865906	COMPL. REAR CENTRE CONSOLE UNIT STRUCTURE	865906 COMPL. REAR CENTRE CONSOLE UNIT STRUCTURE Black technical fabric	-	1	Enquire
0001	800255	COMPL. REAR CENTRE CONSOLE UNIT STRUCTURE	800255 COMPL. REAR CENTRE CONSOLE UNIT STRUCTURE Leather; INTP	-	1	Enquire
0001	70008099	COMPL. REAR CENTRE CONSOLE UNIT STRUCTURE	70008099 COMPL. REAR CENTRE CONSOLE UNIT STRUCTURE INTA - Alcantara; Off-catalogue version	-	1	Enquire
0002	960946	COMPL. RH FRONT TUNNEL UNIT	960946 COMPL. RH FRONT TUNNEL UNIT INTA for colour selection of Alcantara - DAAL for colour selection of Alcantara side pad; INTA- -DAAL	-	1	Enquire
0002	967282	RH UNIT STRUCTURE	967282 RH UNIT STRUCTURE Gloss finish carbon version	-	1	Enquire
0002	770486	RH UNIT STRUCTURE	770486 RH UNIT STRUCTURE Matte finish carbon version	-	1	Enquire
0002	70007539	RH UNIT STRUCTURE	70007539 RH UNIT STRUCTURE Version in coloured naked weave carbon - CICM - CICM for carbon colour selection - For better colour match, also order adjacent off-catalogue components; Off-catalogue version	-	1	Enquire
0003	960941	COMPL. LH FRONT TUNNEL CONSOLE UNIT	960941 COMPL. LH FRONT TUNNEL CONSOLE UNIT INTA for colour selection of Alcantara - DAAL for colour selection of Alcantara side pad; INTA- -DAAL	-	1	Enquire
0003	967200	LH UNIT STRUCTURE	967200 LH UNIT STRUCTURE Gloss finish carbon version	-	1	Enquire
0003	770487	LH UNIT STRUCTURE	770487 LH UNIT STRUCTURE Matte finish carbon version	-	1	Enquire
0003	70007540	LH UNIT STRUCTURE	70007540 LH UNIT STRUCTURE Version in coloured naked weave carbon - CICM - CICM for carbon colour selection - For better colour match, also order adjacent off-catalogue components; Off-catalogue version	-	1	Enquire
0004	967225	COMPL. RH FRONT TUNNEL CONSOLE UNIT KNEE CUSHION	967225 COMPL. RH FRONT TUNNEL CONSOLE UNIT KNEE CUSHION Version for front part of centre tunnel console in carbon	-	1	Enquire
0005	964866	COMPL. LH FRONT TUNNEL CONSOLE UNIT KNEE CUSHION	964866 COMPL. LH FRONT TUNNEL CONSOLE UNIT KNEE CUSHION Version for front part of centre tunnel console in carbon	-	1	Enquire
0006	865935	COMPL. REAR CENTRE CONSOLE LID	865935 COMPL. REAR CENTRE CONSOLE LID Black technical fabric	-	1	Enquire
0006	800588	COMPL. REAR CENTRE CONSOLE LID	800588 COMPL. REAR CENTRE CONSOLE LID Leather; INTP	-	1	Enquire
0006	70008100	COMPL. REAR CENTRE CONSOLE LID	70008100 COMPL. REAR CENTRE CONSOLE LID INTA - Alcantara; Off-catalogue version	-	1	Enquire
0007	14418074	SCREW	14418074 SCREW M3 X 8	-	2	Enquire
0008	12639901	WASHER	12639901 WASHER	-	2	Enquire
0009	954162	ODDMENTS STORAGE BIN	954162 ODDMENTS STORAGE BIN	-	1	Enquire
0009	770142	ODDMENTS STORAGE BIN	770142 ODDMENTS STORAGE BIN Base Hi-Fi or premium Hi-Fi version	-	1	Enquire
0009	770142	ODDMENTS STORAGE BIN	770142 ODDMENTS STORAGE BIN	-	1	Enquire
0010	960924	BASE SUBSTRUCTURE	960924 BASE SUBSTRUCTURE	-	1	Enquire
0011	964845	REAR CENTRE CONSOLE UNIT MAT	964845 REAR CENTRE CONSOLE UNIT MAT	-	1	Enquire
0012	85833700	SCREW	85833700 SCREW M5 X 16	-	15	Enquire
0013	966333	KEY HOLDER	966333 KEY HOLDER	-	1	Enquire
0014	964844	FRONT CENTRE CONSOLE UNIT MAT	964844 FRONT CENTRE CONSOLE UNIT MAT	-	1	Enquire
0015	88822200	SCREW TORX HEAD M4 X 10MM	88822200 SCREW TORX HEAD M4 X 10MM M4 X 10	-	2	Enquire
0016	961081	COMPL. CUP HOLDER	961081 COMPL. CUP HOLDER	-	1	Enquire
0017	954067	FRONT TRIM PANEL SUBSTRUCTURE	954067 FRONT TRIM PANEL SUBSTRUCTURE	-	1	Enquire
0018	879820	COMPL. CUP HOLDER RING	879820 COMPL. CUP HOLDER RING	-	1	Enquire
0019	813697	CUP HOLDER BASE	813697 CUP HOLDER BASE	-	1	Enquire
0020	85833700	SCREW	85833700 SCREW M5 X 10	-	12	Enquire
0021	964840	BRACKET	964840 BRACKET	-	1	Enquire
0022	12647724	WASHER	12647724 WASHER D. 5.50 - 15 X 1	-	9	Enquire
0023	855323	CENTRE CONSOLE UNIT FASTENER BRACKET	855323 CENTRE CONSOLE UNIT FASTENER BRACKET	-	1	Enquire
0024	85833700	SCREW	85833700 SCREW M5 X 8	-	6	Enquire
0024	85833700	SCREW	85833700 SCREW M5 X 8	-	12	Enquire
0025	889840	REAR BRACKET	889840 REAR BRACKET	-	1	Enquire
0026	954174	FRONT BRACKET	954174 FRONT BRACKET	-	1	Enquire
0027	85833700	SCREW	85833700 SCREW M5 X 12	-	4	Enquire
0028	967402	CLIP	967402 CLIP	-	1	Enquire
0030	85833700	SCREW	85833700 SCREW M5 X 8	-	2	Enquire
0031	769791	PLATE	769791 PLATE Base	-	1	Enquire
0031	769988	PLATE	769988 PLATE Base Hi-Fi or premium Hi-Fi version; Car Play or telemetry	-	1	Enquire
0031	769610	PLATE	769610 PLATE Base Hi-Fi or premium Hi-Fi version; Car Play and telemetry	-	1	Enquire
