LATERAL SUBSTRUCTURE of Ferrari Ferrari 812 Competizione A Europe RH

View All

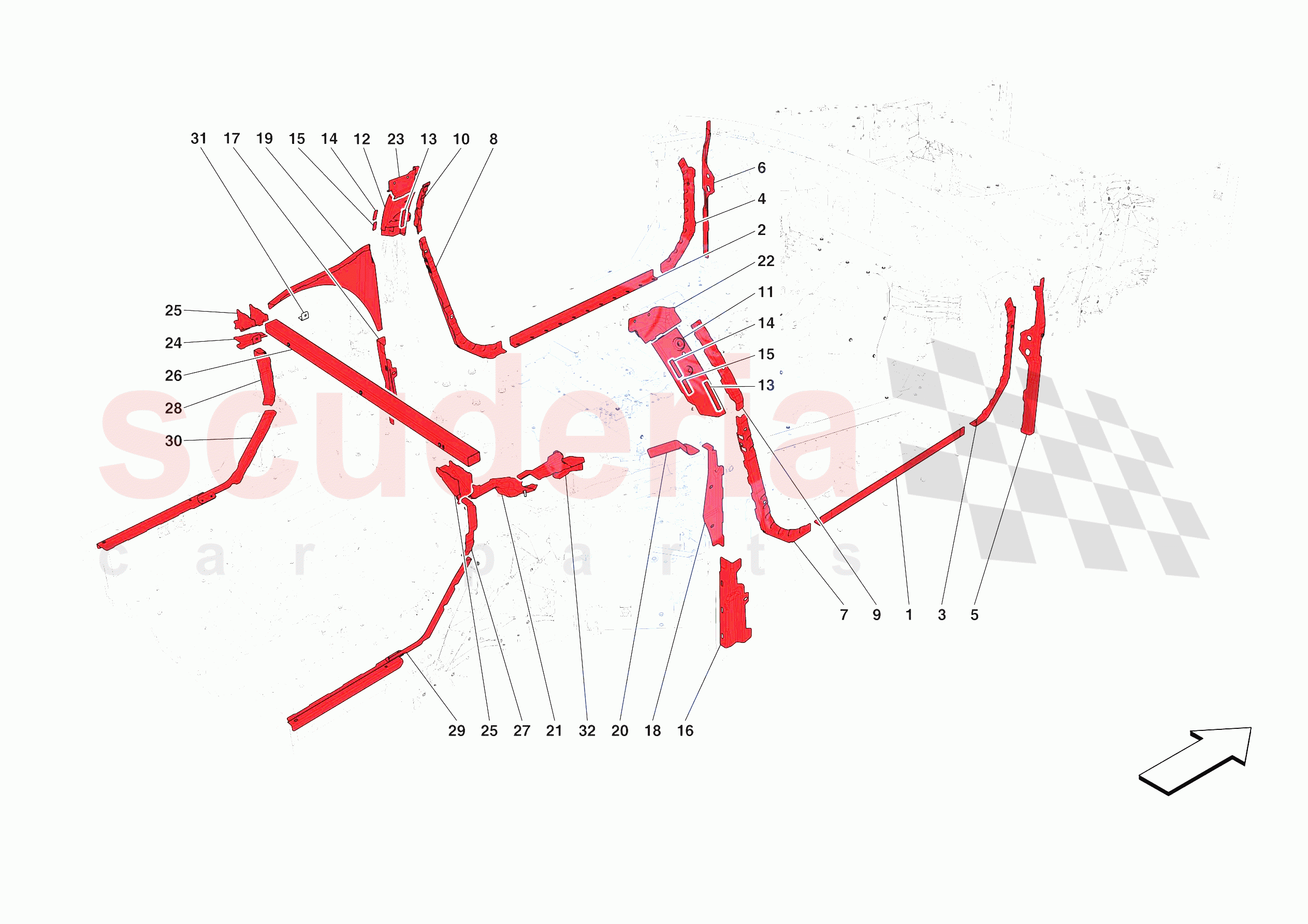

Ferrari 812 Competizione A Europe RH - LATERAL SUBSTRUCTURE

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	83861411	LOWER RH DOOR SEAL PROFILE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	83861511	LOWER LH DOOR SEAL PROFILE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	84280911	PROFILE LINKING RH PILLAR WITH FLANK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	84281000	PROFILE LINKING LH PILLAR WITH FLANK	Enquire	To Order
	84281011	PROFILE LINKING LH PILLAR WITH FLANK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	88504400	RH OUTER PILLAR CONNECTOR PROFILE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	88504300	LH OUTER PILLAR CONNECTOR PROFILE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	985899628	PROFILE LINKING RH B-PILLAR WITH FLANK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	985899615	PROFILE LINKING LH B-PILLAR WITH FLANK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	772192	RH WINGLET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	772181	LH WINGLET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	985772191	RH PILLAR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	985772196	LH PILLAR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	83590300	INTUMESCENT SEAL STRIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	84315000	INTUMESCENT SEAL STRIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	84316300	INTUMESCENT SEAL STRIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	985876488	RH LOWER FRONT LINER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	985876487	LH LOWER FRONT LINER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	985772122	RH FLANK SILL WINGLET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	985879885	WINGLET ON LH CHASSIS LINER.	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	772179	INNER FUEL PIPE CLOSURE TRIM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	832523	RH ELEMENT LINER ON CHASSIS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	772194	RH PILLAR UPPER CLADDING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	772197	LH PILLAR UPPER CLADDING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	772178	LH LATERAL FLANK PYLON COMPLETION PART	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	772187	CROSS MEMBER MOUNTING BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	985772186	COMPL. LUGGAGE COMPARTMENT TRIM FASTENER CROSS PIECE	Enquire	To Order
	985772184	COMPL. LUGGAGE COMPARTMENT TRIM FASTENER CROSS PIECE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	772121	REAR ELEMENT OF RH LATERAL SUBSTRUCTURE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	772195	REAR ELEMENT OF LH LATERAL SUBSTRUCTURE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	84634800	RH LOWER LATERAL PROFILE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	84634900	LH LOWER LATERAL PROFILE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	883759	BOWDEN CABLE BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	950589	RH FLANK PYLON COMPLETION PART	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
0001	83861411	LOWER RH DOOR SEAL PROFILE	83861411 LOWER RH DOOR SEAL PROFILE	-	1	Enquire
0002	83861511	LOWER LH DOOR SEAL PROFILE	83861511 LOWER LH DOOR SEAL PROFILE	-	1	Enquire
0003	84280911	PROFILE LINKING RH PILLAR WITH FLANK	84280911 PROFILE LINKING RH PILLAR WITH FLANK	-	1	Enquire
0004	84281000	PROFILE LINKING LH PILLAR WITH FLANK	84281000 PROFILE LINKING LH PILLAR WITH FLANK Applies until depletion	-	1	Enquire
0004	84281011	PROFILE LINKING LH PILLAR WITH FLANK	84281011 PROFILE LINKING LH PILLAR WITH FLANK Applicable after depletion of 84281000	-	1	Enquire
0005	88504400	RH OUTER PILLAR CONNECTOR PROFILE	88504400 RH OUTER PILLAR CONNECTOR PROFILE	-	1	Enquire
0006	88504300	LH OUTER PILLAR CONNECTOR PROFILE	88504300 LH OUTER PILLAR CONNECTOR PROFILE	-	1	Enquire
0007	985899628	PROFILE LINKING RH B-PILLAR WITH FLANK	985899628 PROFILE LINKING RH B-PILLAR WITH FLANK	-	1	Enquire
0008	985899615	PROFILE LINKING LH B-PILLAR WITH FLANK	985899615 PROFILE LINKING LH B-PILLAR WITH FLANK	-	1	Enquire
0009	772192	RH WINGLET	772192 RH WINGLET	-	1	Enquire
0010	772181	LH WINGLET	772181 LH WINGLET	-	1	Enquire
0011	985772191	RH PILLAR	985772191 RH PILLAR	-	1	Enquire
0012	985772196	LH PILLAR	985772196 LH PILLAR	-	1	Enquire
0013	83590300	INTUMESCENT SEAL STRIP	83590300 INTUMESCENT SEAL STRIP 90 X 10 X 3	-	4	Enquire
0014	84315000	INTUMESCENT SEAL STRIP	84315000 INTUMESCENT SEAL STRIP 50 X 10 X 3	-	2	Enquire
0015	84316300	INTUMESCENT SEAL STRIP	84316300 INTUMESCENT SEAL STRIP 40 X 10 X 3	-	2	Enquire
0016	985876488	RH LOWER FRONT LINER	985876488 RH LOWER FRONT LINER	-	1	Enquire
0017	985876487	LH LOWER FRONT LINER	985876487 LH LOWER FRONT LINER	-	1	Enquire
0018	985772122	RH FLANK SILL WINGLET	985772122 RH FLANK SILL WINGLET	-	1	Enquire
0019	985879885	WINGLET ON LH CHASSIS LINER.	985879885 WINGLET ON LH CHASSIS LINER.	-	1	Enquire
0020	772179	INNER FUEL PIPE CLOSURE TRIM	772179 INNER FUEL PIPE CLOSURE TRIM	-	1	Enquire
0021	832523	RH ELEMENT LINER ON CHASSIS	832523 RH ELEMENT LINER ON CHASSIS	-	1	Enquire
0022	772194	RH PILLAR UPPER CLADDING	772194 RH PILLAR UPPER CLADDING	-	1	Enquire
0023	772197	LH PILLAR UPPER CLADDING	772197 LH PILLAR UPPER CLADDING	-	1	Enquire
0024	772178	LH LATERAL FLANK PYLON COMPLETION PART	772178 LH LATERAL FLANK PYLON COMPLETION PART	-	1	Enquire
0025	772187	CROSS MEMBER MOUNTING BRACKET	772187 CROSS MEMBER MOUNTING BRACKET	-	2	Enquire
0026	985772186	COMPL. LUGGAGE COMPARTMENT TRIM FASTENER CROSS PIECE	985772186 COMPL. LUGGAGE COMPARTMENT TRIM FASTENER CROSS PIECE No longer supplied - Replaced by 985772184	-	1	Enquire
0026	985772184	COMPL. LUGGAGE COMPARTMENT TRIM FASTENER CROSS PIECE	985772184 COMPL. LUGGAGE COMPARTMENT TRIM FASTENER CROSS PIECE	-	1	Enquire
0027	772121	REAR ELEMENT OF RH LATERAL SUBSTRUCTURE	772121 REAR ELEMENT OF RH LATERAL SUBSTRUCTURE	-	1	Enquire
0028	772195	REAR ELEMENT OF LH LATERAL SUBSTRUCTURE	772195 REAR ELEMENT OF LH LATERAL SUBSTRUCTURE	-	1	Enquire
0029	84634800	RH LOWER LATERAL PROFILE	84634800 RH LOWER LATERAL PROFILE	-	1	Enquire
0030	84634900	LH LOWER LATERAL PROFILE	84634900 LH LOWER LATERAL PROFILE	-	1	Enquire
0031	883759	BOWDEN CABLE BRACKET	883759 BOWDEN CABLE BRACKET	-	1	Enquire
0032	950589	RH FLANK PYLON COMPLETION PART	950589 RH FLANK PYLON COMPLETION PART	-	1	Enquire
