GEARBOX HOUSING of Ferrari Ferrari 812 Superfast/GTS

View All

Ferrari 812 Superfast/GTS - GEARBOX HOUSING

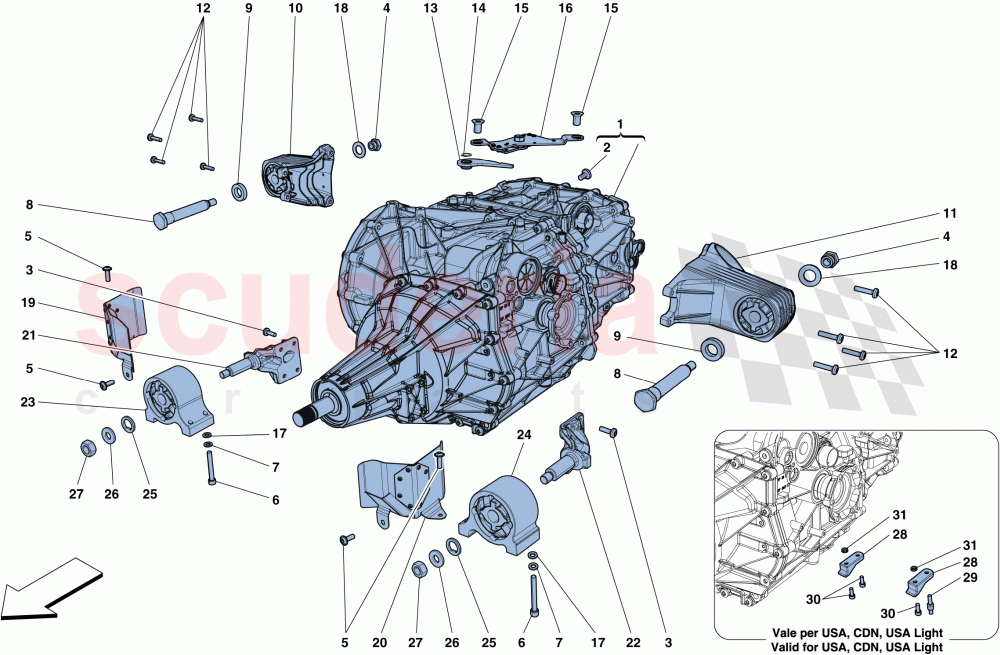

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	263679	FUEL LEVEL PLUG	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	247856	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	287404	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	16286124	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14302234	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	986899	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	243075	GEARBOX MOUNTING BUSH PIN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	243122	SPACER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	266362	COMPL. RH REAR STRUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	266364	COMPL. LH REAR STRUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14306634	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	238370	COMPLETE RELEASE LEVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11066176	SEEGER RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	243151	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	310524	COMPL. RELEASE CURSOR MOUNTING BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	84653800	WASHER	Enquire	To Order
	12654424	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	287405	SPACER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	326173	RH FRONT MOUNT HEAT SHIELD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	326174	LH FRONT MOUNT HEAT SHIELD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	301074	RH FRONT DCT GEARBOX STRUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	301073	LH FRONT DCT GEARBOX STRUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	319484	COMPL. RH BUSHING MOUNT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	319482	COMPL. LH BUSHING MOUNT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	300597	SPLIT WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12644924	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12164024	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	248689	RETENTION BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	266645	STUD BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14306474	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12601474	WAVY WASHER 10MM	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
2	263679	FUEL LEVEL PLUG	263679 FUEL LEVEL PLUG	-	1	Enquire
3	247856	SCREW	247856 SCREW M8 X 1.25 X 25	-	8	Enquire
4	287404	NUT	287404 NUT	-	2	Enquire
5	16286124	SCREW	16286124 SCREW M6 X 20	-	4	Enquire
6	14302234	SCREW	14302234 SCREW M8 X 60	-	8	Enquire
7	986899	WASHER	986899 WASHER	-	8	Enquire
8	243075	GEARBOX MOUNTING BUSH PIN	243075 GEARBOX MOUNTING BUSH PIN	-	2	Enquire
9	243122	SPACER	243122 SPACER	-	2	Enquire
10	266362	COMPL. RH REAR STRUT	266362 COMPL. RH REAR STRUT	-	1	Enquire
11	266364	COMPL. LH REAR STRUT	266364 COMPL. LH REAR STRUT	-	1	Enquire
12	14306634	SCREW	14306634 SCREW M8 X 1.25 X 35	-	8	Enquire
13	238370	COMPLETE RELEASE LEVER	238370 COMPLETE RELEASE LEVER	-	1	Enquire
14	11066176	SEEGER RING	11066176 SEEGER RING	-	1	Enquire
15	243151	SCREW	243151 SCREW M12 X 1.25 X 20	-	2	Enquire
16	310524	COMPL. RELEASE CURSOR MOUNTING BRACKET	310524 COMPL. RELEASE CURSOR MOUNTING BRACKET	-	1	Enquire
17	84653800	WASHER	84653800 WASHER	-	4	Enquire
17	12654424	WASHER	12654424 WASHER	-	4	Enquire
18	287405	SPACER	287405 SPACER	-	2	Enquire
19	326173	RH FRONT MOUNT HEAT SHIELD	326173 RH FRONT MOUNT HEAT SHIELD	-	1	Enquire
20	326174	LH FRONT MOUNT HEAT SHIELD	326174 LH FRONT MOUNT HEAT SHIELD	-	1	Enquire
21	301074	RH FRONT DCT GEARBOX STRUT	301074 RH FRONT DCT GEARBOX STRUT	-	1	Enquire
22	301073	LH FRONT DCT GEARBOX STRUT	301073 LH FRONT DCT GEARBOX STRUT	-	1	Enquire
23	319484	COMPL. RH BUSHING MOUNT	319484 COMPL. RH BUSHING MOUNT	-	1	Enquire
24	319482	COMPL. LH BUSHING MOUNT	319482 COMPL. LH BUSHING MOUNT	-	1	Enquire
25	300597	SPLIT WASHER	300597 SPLIT WASHER	-	2	Enquire
26	12644924	WASHER	12644924 WASHER	-	2	Enquire
27	12164024	NUT	12164024 NUT	-	2	Enquire
28	248689	RETENTION BRACKET	248689 RETENTION BRACKET Applicable for USA, CDN, USA LIGHT	-	2	Enquire
29	266645	STUD BOLT	266645 STUD BOLT Applicable for USA, CDN, USA LIGHT	-	1	Enquire
30	14306474	SCREW	14306474 SCREW M8 X 25; Applicable for USA, CDN, USA LIGHT	-	3	Enquire
31	12601474	WAVY WASHER 10MM	12601474 WAVY WASHER 10MM Applicable for USA, CDN, USA LIGHT	-	2	Enquire
