DASHBOARD AND TUNNEL INSTRUMENTS of Ferrari Ferrari 812 Superfast/GTS

View All

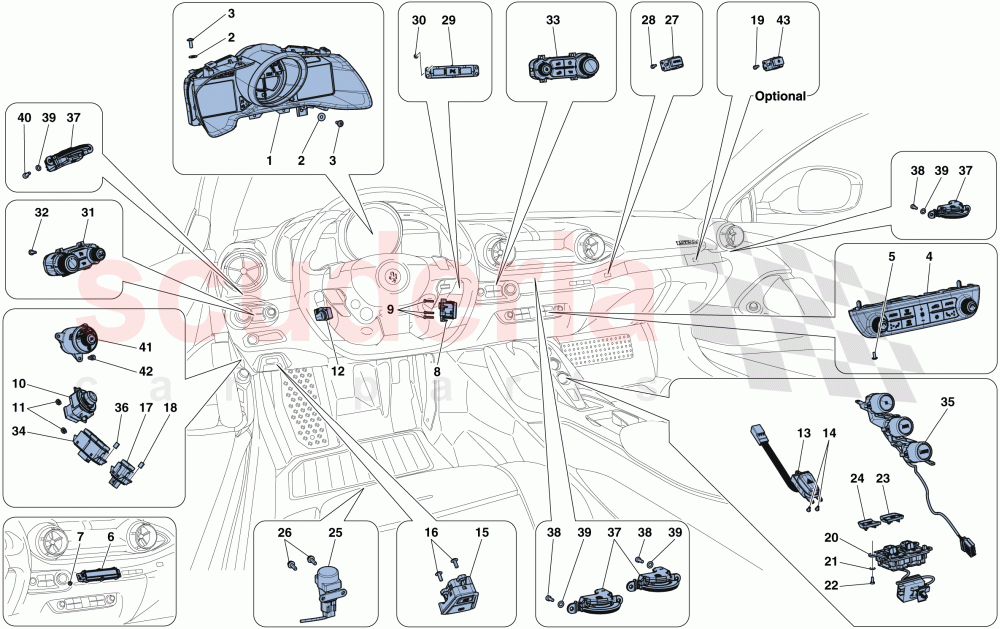

Ferrari 812 Superfast/GTS - DASHBOARD AND TUNNEL INSTRUMENTS

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	324727	INSTRUMENT PANEL	Enquire	To Order
	324737	INSTRUMENT PANEL	Enquire	To Order
	324725	INSTRUMENT PANEL	Enquire	To Order

...and 17 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	62769800	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	85833700	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	88418000	AC CONTROL PANEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	88822200	SCREW TORX HEAD M4 X 10MM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	88401100	A/C REMOTE DISPLAY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	88822200	SCREW TORX HEAD M4 X 10MM	Enquire	To Order
	85833700	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	900756	KIN FOR PASSIVE START SYSTEM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14302921	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	319552	REAR VIEW MIRROR CONTROL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	808769	CAP NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	193862	STEERING COLUMN ADJUSTMENT CONTROL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	336232	HAZARD WARNING LIGHT BUTTON	Enquire	To Order
	336233	HAZARD WARNING LIGHT BUTTON	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	83996600	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	319555	EPB SWITCH WITH AUTOPARK DISABLE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	88822200	SCREW TORX HEAD M4 X 10MM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	340345	LUGGAGE COMPARTMENT RELEASE CONTROL	Enquire	To Order
	332835	LUGGAGE COMPARTMENT RELEASE CONTROL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	88670400	SPACER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14418074	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	342933	COMPL. POWER WINDOW CONTROL SUPPORT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12600474	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14418074	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	342935	RH POWER WINDOW BUTTON	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	342934	LH POWER WINDOW BUTTON	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	179087	INERTIAL SWITCH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11568124	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	338935	GLOVE COMPARTMENT OPENING BUTTON	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14418074	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	331191	SENSORS-CAMERA-LIFT SYSTEM CONTROL	Enquire	To Order
	319568	SENSORS-CAMERA-LIFT SYSTEM CONTROL	Enquire	To Order
	331189	SENSORS-CAMERA CONTROL	Enquire	To Order

...and 5 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	14418074	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	331207	TFT CONTROL	Enquire	To Order
	319570	TFT CONTROL	Enquire	To Order
	328331	TFT CONTROL	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	88822200	SCREW TORX HEAD M4 X 10MM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	328332	NIT CONTROL	Enquire	To Order
	331197	NIT CONTROL	Enquire	To Order
	331210	NIT CONTROL	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	332836	MEMORY BUTTONS	Enquire	To Order
	319574	MEMORY BUTTONS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	338650	COMPL. F1 GEARBOX CONTROL	Enquire	To Order
	336485	COMPL. F1 GEARBOX CONTROL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	88670400	SPACER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	286443	AIR VENT CONTROL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14418074	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12639901	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14302921	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	330892	LIGHTS AND REAR FOG LIGHT SWITCH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14418924	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	332933	PASSENGER DISPLAY BUTTON	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	324727	INSTRUMENT PANEL	324727 INSTRUMENT PANEL Carbon; Aluminium base; Not for USA	-	1	Enquire
1	324737	INSTRUMENT PANEL	324737 INSTRUMENT PANEL Carbon; Aluminium base; Applicable for USA	-	1	Enquire
1	324725	INSTRUMENT PANEL	324725 INSTRUMENT PANEL Carbon; Yellow dial face; Not for USA	-	1	Enquire
1	324735	INSTRUMENT PANEL	324735 INSTRUMENT PANEL Carbon; Yellow dial face; Applicable for USA	-	1	Enquire
1	324726	INSTRUMENT PANEL	324726 INSTRUMENT PANEL Carbon; White dial face; Not for USA	-	1	Enquire
1	324736	INSTRUMENT PANEL	324736 INSTRUMENT PANEL Carbon; White dial face; Applicable for USA	-	1	Enquire
1	324733	INSTRUMENT PANEL	324733 INSTRUMENT PANEL Carbon; Black dial face; Applicable for USA	-	1	Enquire
1	324724	INSTRUMENT PANEL	324724 INSTRUMENT PANEL Carbon; Red dial face; Not for USA	-	1	Enquire
1	324734	INSTRUMENT PANEL	324734 INSTRUMENT PANEL Carbon; Red dial face; Applicable for USA	-	1	Enquire
1	324731	INSTRUMENT PANEL	324731 INSTRUMENT PANEL White dial face; Applicable for USA	-	1	Enquire
1	324722	INSTRUMENT PANEL	324722 INSTRUMENT PANEL Aluminium base; Not for USA	-	1	Enquire
1	324732	INSTRUMENT PANEL	324732 INSTRUMENT PANEL Aluminium base; Applicable for USA	-	1	Enquire
1	324723	INSTRUMENT PANEL	324723 INSTRUMENT PANEL Carbon; Black dial face; Not for USA	-	1	Enquire
1	324729	INSTRUMENT PANEL	324729 INSTRUMENT PANEL Red dial face; Applicable for USA	-	1	Enquire
1	324720	INSTRUMENT PANEL	324720 INSTRUMENT PANEL Yellow dial face; Not for USA	-	1	Enquire
1	324730	INSTRUMENT PANEL	324730 INSTRUMENT PANEL Yellow dial face; Applicable for USA	-	1	Enquire
1	324721	INSTRUMENT PANEL	324721 INSTRUMENT PANEL White dial face; Not for USA	-	1	Enquire
1	324716	INSTRUMENT PANEL	324716 INSTRUMENT PANEL Black dial face; Not for USA	-	1	Enquire
1	324728	INSTRUMENT PANEL	324728 INSTRUMENT PANEL Black dial face; Applicable for USA	-	1	Enquire
1	324719	INSTRUMENT PANEL	324719 INSTRUMENT PANEL Red dial face; Not for USA	-	1	Enquire
2	62769800	WASHER	62769800 WASHER	-	4	Enquire
3	85833700	SCREW	85833700 SCREW M5 X 12	-	2	Enquire
4	88418000	AC CONTROL PANEL	88418000 AC CONTROL PANEL	-	1	Enquire
5	88822200	SCREW TORX HEAD M4 X 10MM	88822200 SCREW TORX HEAD M4 X 10MM M4 X 10	-	1	Enquire
6	88401100	A/C REMOTE DISPLAY	88401100 A/C REMOTE DISPLAY No longer supplied	-	1	Enquire
7	88822200	SCREW TORX HEAD M4 X 10MM	88822200 SCREW TORX HEAD M4 X 10MM M4 X 10	-	2	Enquire
7	85833700	SCREW	85833700 SCREW M5 X 10; No longer supplied; Replaced by 65752800	-	2	Enquire
8	900756	KIN FOR PASSIVE START SYSTEM	900756 KIN FOR PASSIVE START SYSTEM	-	1	Enquire
9	14302921	SCREW	14302921 SCREW M4 X 20	-	3	Enquire
10	319552	REAR VIEW MIRROR CONTROL	319552 REAR VIEW MIRROR CONTROL	-	1	Enquire
11	808769	CAP NUT	808769 CAP NUT	-	2	Enquire
12	193862	STEERING COLUMN ADJUSTMENT CONTROL	193862 STEERING COLUMN ADJUSTMENT CONTROL Applicable for electric steering column	-	1	Enquire
13	336232	HAZARD WARNING LIGHT BUTTON	336232 HAZARD WARNING LIGHT BUTTON	-	1	Enquire
13	336233	HAZARD WARNING LIGHT BUTTON	336233 HAZARD WARNING LIGHT BUTTON Version with carbon fibre bridge	-	1	Enquire
14	83996600	SCREW	83996600 SCREW M3 X 6	-	3	Enquire
15	319555	EPB SWITCH WITH AUTOPARK DISABLE	319555 EPB SWITCH WITH AUTOPARK DISABLE	-	1	Enquire
16	88822200	SCREW TORX HEAD M4 X 10MM	88822200 SCREW TORX HEAD M4 X 10MM M4 X 10	-	3	Enquire
17	340345	LUGGAGE COMPARTMENT RELEASE CONTROL	340345 LUGGAGE COMPARTMENT RELEASE CONTROL	-	1	Enquire
17	332835	LUGGAGE COMPARTMENT RELEASE CONTROL	332835 LUGGAGE COMPARTMENT RELEASE CONTROL Carbon handle version	-	1	Enquire
18	88670400	SPACER	88670400 SPACER	-	4	Enquire
19	14418074	SCREW	14418074 SCREW M3 X 8; Version with passenger display	-	4	Enquire
20	342933	COMPL. POWER WINDOW CONTROL SUPPORT	342933 COMPL. POWER WINDOW CONTROL SUPPORT	-	1	Enquire
21	12600474	WASHER	12600474 WASHER	-	4	Enquire
22	14418074	SCREW	14418074 SCREW M3 X 8	-	4	Enquire
23	342935	RH POWER WINDOW BUTTON	342935 RH POWER WINDOW BUTTON	-	1	Enquire
24	342934	LH POWER WINDOW BUTTON	342934 LH POWER WINDOW BUTTON	-	1	Enquire
25	179087	INERTIAL SWITCH	179087 INERTIAL SWITCH	-	1	Enquire
26	11568124	SCREW	11568124 SCREW M5 X 16	-	2	Enquire
27	338935	GLOVE COMPARTMENT OPENING BUTTON	338935 GLOVE COMPARTMENT OPENING BUTTON	-	1	Enquire
28	14418074	SCREW	14418074 SCREW M3 X 8	-	4	Enquire
29	331191	SENSORS-CAMERA-LIFT SYSTEM CONTROL	331191 SENSORS-CAMERA-LIFT SYSTEM CONTROL Version with analogue rear camera; Version with front and rear digital cameras; Version with lifter	-	1	Enquire
29	319568	SENSORS-CAMERA-LIFT SYSTEM CONTROL	319568 SENSORS-CAMERA-LIFT SYSTEM CONTROL Version with carbon dash inserts; Version with analogue rear camera; Version with front and rear digital cameras; Version with lifter	-	1	Enquire
29	331189	SENSORS-CAMERA CONTROL	331189 SENSORS-CAMERA CONTROL Version with analogue rear camera; Version with front and rear digital cameras; Version without lift	-	1	Enquire
29	335501	SENSOR-LIFT SYSTEM CONTROL	335501 SENSOR-LIFT SYSTEM CONTROL Version with lifter; Version without parking camera	-	1	Enquire
29	319567	SENSORS-CAMERA CONTROL	319567 SENSORS-CAMERA CONTROL Version with carbon dash inserts; Version with analogue rear camera; Version with front and rear digital cameras	-	1	Enquire
29	335500	SENSOR-LIFT SYSTEM CONTROL	335500 SENSOR-LIFT SYSTEM CONTROL Version with lifter; Version with carbon dash inserts	-	1	Enquire
29	335499	SENSOR CONTROL	335499 SENSOR CONTROL Standard	-	1	Enquire
29	335498	SENSOR CONTROL	335498 SENSOR CONTROL Version with carbon dash inserts	-	1	Enquire
30	14418074	SCREW	14418074 SCREW M3 X 8	-	4	Enquire
31	331207	TFT CONTROL	331207 TFT CONTROL Applicable for GD	-	1	Enquire
31	319570	TFT CONTROL	319570 TFT CONTROL Version with carbon dash inserts; Not for GD	-	1	Enquire
31	328331	TFT CONTROL	328331 TFT CONTROL Version with carbon dash inserts; Applicable for GD	-	1	Enquire
31	331194	TFT CONTROL	331194 TFT CONTROL Not for GD	-	1	Enquire
32	88822200	SCREW TORX HEAD M4 X 10MM	88822200 SCREW TORX HEAD M4 X 10MM	-	2	Enquire
33	328332	NIT CONTROL	328332 NIT CONTROL Black; Version with carbon dash inserts; Applicable for GD	-	1	Enquire
33	331197	NIT CONTROL	331197 NIT CONTROL NART grey; Not for GD	-	1	Enquire
33	331210	NIT CONTROL	331210 NIT CONTROL NART grey; Applicable for GD	-	1	Enquire
33	319573	NIT CONTROL	319573 NIT CONTROL Black; Version with carbon dash inserts; Not for GD	-	1	Enquire
34	332836	MEMORY BUTTONS	332836 MEMORY BUTTONS	-	1	Enquire
34	319574	MEMORY BUTTONS	319574 MEMORY BUTTONS Carbon handle version	-	1	Enquire
35	338650	COMPL. F1 GEARBOX CONTROL	338650 COMPL. F1 GEARBOX CONTROL Applicable for USA, CDN, USA LIGHT	-	1	Enquire
35	336485	COMPL. F1 GEARBOX CONTROL	336485 COMPL. F1 GEARBOX CONTROL Not for USA, CDN, USA LIGHT	-	1	Enquire
36	88670400	SPACER	88670400 SPACER	-	4	Enquire
37	286443	AIR VENT CONTROL	286443 AIR VENT CONTROL	-	4	Enquire
38	14418074	SCREW	14418074 SCREW M3 X 8	-	6	Enquire
39	12639901	WASHER	12639901 WASHER	-	8	Enquire
40	14302921	SCREW	14302921 SCREW M4 X 10	-	2	Enquire
41	330892	LIGHTS AND REAR FOG LIGHT SWITCH	330892 LIGHTS AND REAR FOG LIGHT SWITCH	-	1	Enquire
42	14418924	SCREW	14418924 SCREW M4 X 8	-	3	Enquire
43	332933	PASSENGER DISPLAY BUTTON	332933 PASSENGER DISPLAY BUTTON Version with passenger display	-	1	Enquire
