Ferrari 812 GTS (Europe) - AC SYSTEM - WATER AND FREON

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	328417	PIPE FROM DISCONNECTOR TO CONDENSER	328417 PIPE FROM DISCONNECTOR TO CONDENSER	-	1	Enquire
2	14066017	NUT	14066017 NUT	-	2	Enquire
3	14040614	NUT	14040614 NUT	-	2	Enquire
4	10441390	P clip Bracket With Sheath D.12	10441390 P clip Bracket With Sheath D.12	-	1	Enquire
5	11568124	SCREW	11568124 SCREW	-	2	Enquire
6	328420	PIPE FROM CONDENSER TO DISCONNECTOR	328420 PIPE FROM CONDENSER TO DISCONNECTOR	-	1	Enquire
7	10441290	BRACKET WITH SHEATH	10441290 BRACKET WITH SHEATH	-	1	Enquire
8	331901	COMPL. IHX GAS PIPE	331901 COMPL. IHX GAS PIPE	-	1	Enquire
9	14066017	NUT	14066017 NUT	-	2	Enquire
10	333909	GAS PIPE FROM DISCONNECTOR UNION TO IHX	333909 GAS PIPE FROM DISCONNECTOR UNION TO IHX	-	1	Enquire
11	16100824	NUT	16100824 NUT	-	1	Enquire
12	231620	SCREW	231620 SCREW	-	2	Enquire
13	12643724	WASHER	12643724 WASHER	-	2	Enquire
14	149707	SPACER	149707 SPACER	-	2	Enquire
15	812273	CABLE GROMMET	812273 CABLE GROMMET	-	2	Enquire
16	14040611	NUT	14040611 NUT	-	1	Enquire
17	329371	AC PIPE TO LH DIAGONAL BRACE MOUNTING BRACKET.	329371 AC PIPE TO LH DIAGONAL BRACE MOUNTING BRACKET.	-	1	Enquire
18	248334	SCREW M6 X 14MM	248334 SCREW M6 X 14MM	-	2	Enquire
19	298580	CLIP	298580 CLIP	-	2	Enquire
20	336702	GAS PIPE FROM IHX TO COMPRESSOR	336702 GAS PIPE FROM IHX TO COMPRESSOR	-	1	Enquire
21	10441790	BRACKET WITH SHEATH	10441790 BRACKET WITH SHEATH	-	1	Enquire
22	16044024	SCREW	16044024 SCREW	-	1	Enquire
23	315352	CLIP	315352 CLIP	-	2	Enquire
24	765072	AC PIPE TO COMPRESSOR MOUNTING BRACKET	765072 AC PIPE TO COMPRESSOR MOUNTING BRACKET	-	1	Enquire
25	326221	IDLE SPEED PUMP MOUNTING BRACKET	326221 IDLE SPEED PUMP MOUNTING BRACKET	-	1	Enquire
26	291349	WATER RECIRCULATION PUMP	291349 WATER RECIRCULATION PUMP	-	1	Enquire
27	82268600	CLIP	82268600 CLIP	-	2	Enquire
28	86574700	SCREW	86574700 SCREW	-	2	Enquire
29	260083	HOSE	260083 HOSE	-	1	Enquire
30	262111	JUBILEE CLAMP	262111 JUBILEE CLAMP	-	5	Enquire
31	337857	HOSE	337857 HOSE	-	1	Enquire
32	337154	RIGID PIPE FROM PUMP TO AC SYSTEM	337154 RIGID PIPE FROM PUMP TO AC SYSTEM	-	1	Enquire
33	86574700	SCREW	86574700 SCREW	-	3	Enquire
34	329120	COMPL. PIPE FROM RECIRCULATION PUMP TO AC UNIT	329120 COMPL. PIPE FROM RECIRCULATION PUMP TO AC UNIT	-	1	Enquire
35	341287	TGK PIPE MOUNTING BRACKET	341287 TGK PIPE MOUNTING BRACKET	-	1	Enquire
36	86574700	SCREW	86574700 SCREW	-	1	Enquire
37	252473	CLIP	252473 CLIP	-	1	Enquire
38	253769	CLIP	253769 CLIP	-	1	Enquire
39	329122	COMPL. PIPE FROM HEATER TO FRONT TGK VALVE	329122 COMPL. PIPE FROM HEATER TO FRONT TGK VALVE	-	1	Enquire
40	329123	COMPL. PIPE FROM HEATER TO REAR TGK VALVE	329123 COMPL. PIPE FROM HEATER TO REAR TGK VALVE	-	1	Enquire
41	292306	TGK VALVE OUTLET UNION	292306 TGK VALVE OUTLET UNION	-	2	Enquire
42	341613	RIGID TGK VALVE OUTLET PIPE	341613 RIGID TGK VALVE OUTLET PIPE	-	1	Enquire
43	262111	JUBILEE CLAMP	262111 JUBILEE CLAMP	-	6	Enquire
44	748925	RUBBER CABLE GROMMET	748925 RUBBER CABLE GROMMET	-	1	Enquire

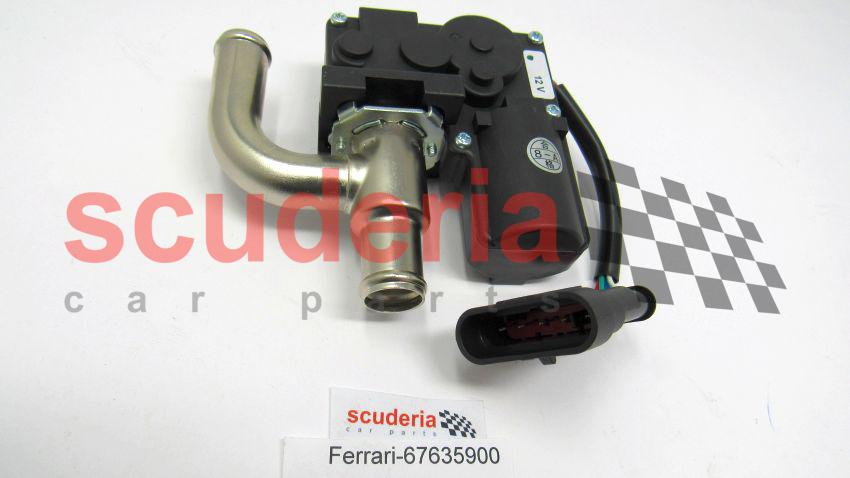

45	67635900	RH TGK VALVE	67635900 RH TGK VALVE	-	1	Enquire

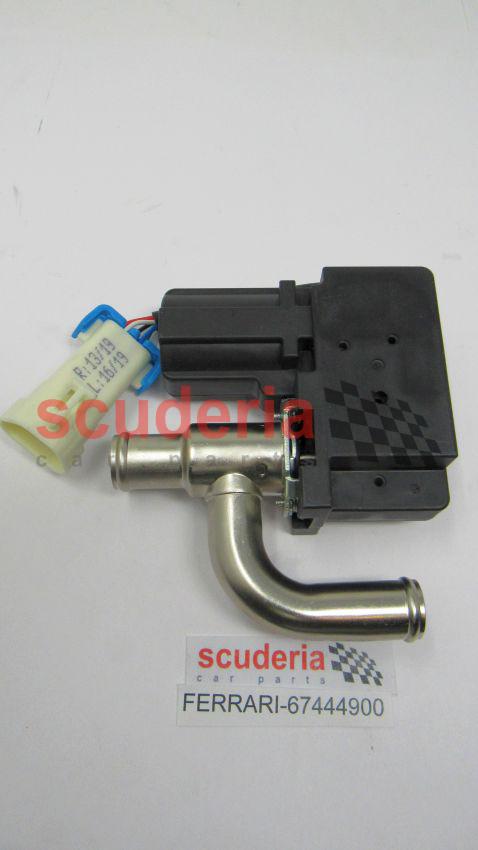

46	67444900	LH TGK VALVE	67444900 LH TGK VALVE	-	1	Enquire
47	67933600	TGK VALVE FASTENER ROD	67933600 TGK VALVE FASTENER ROD	-	1	Enquire
48	772140	COMPL. TGK VALVE BRACKET	772140 COMPL. TGK VALVE BRACKET	-	1	Enquire
48	339274	COMPL. TGK VALVE BRACKET	339274 COMPL. TGK VALVE BRACKET	-	1	Enquire
49	204777	CLIP	204777 CLIP	-	1	Enquire
50	198253	CLIP	198253 CLIP	-	1	Enquire
51	86574700	SCREW	86574700 SCREW	-	4	Enquire
52	321365	TGK VALVE OUTLET UNION	321365 TGK VALVE OUTLET UNION	-	1	Enquire
53	262111	JUBILEE CLAMP	262111 JUBILEE CLAMP	-	2	Enquire
54	86574700	SCREW	86574700 SCREW	-	2	Enquire
55	337391	RIGID PIPE	337391 RIGID PIPE	-	1	Enquire
56	337858	HOSE	337858 HOSE	-	1	Enquire
57	262111	JUBILEE CLAMP	262111 JUBILEE CLAMP	-	2	Enquire
58	84536000	HVAC SIDE DUCT DRAIN HOSE CONNECTOR	84536000 HVAC SIDE DUCT DRAIN HOSE CONNECTOR	-	1	Enquire
59	13000390	Screw Collar	13000390 Screw Collar	-	2	Enquire
60	81895900	AC WATER PIPE SEAL	81895900 AC WATER PIPE SEAL	-	2	Enquire
61	81970900	AC WATER PIPE SEAL	81970900 AC WATER PIPE SEAL	-	1	Enquire
62	11342784	GASKET	11342784 GASKET	-	1	Enquire
63	11342584	GASKET	11342584 GASKET	-	1	Enquire
64	11084084	GASKET	11084084 GASKET	-	1	Enquire
65	11342484	GASKET	11342484 GASKET	-	1	Enquire
