Ferrari 612 Scaglietti - AC SYSTEM - FREON PIPES

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
199479 AC CONDENSER Enquire To Order
Photo Part No Description Price (each) Stock
199486 RH LOWER BRACKET Enquire To Order
Photo Part No Description Price (each) Stock
199488 LH LOWER BRACKET Enquire To Order
Photo Part No Description Price (each) Stock
199485 RH UPPER BRACKET Enquire To Order
Photo Part No Description Price (each) Stock
199487 LH UPPER BRACKET Enquire To Order
Photo Part No Description Price (each) Stock
10977824 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
12637824 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
14084111 NUT Enquire To Order
Photo Part No Description Price (each) Stock
165136 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
67851700 TUBE FASTENING BRACKET Enquire To Order
Photo Part No Description Price (each) Stock
10902424 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
319201 FUEL FILLER PIPE ASSEMBLY Enquire To Order
Photo Part No Description Price (each) Stock
12637824 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
10441290 BRACKET WITH SHEATH Enquire To Order
Photo Part No Description Price (each) Stock
10441590 BRACKET WITH SHEATH Enquire To Order
Photo Part No Description Price (each) Stock
66982800 GAS PIPE FROM CONDENSER TO FILTER Enquire To Order
Photo Part No Description Price (each) Stock
66374400 PRESSURE SWITCH Enquire To Order
Photo Part No Description Price (each) Stock
67085100 GAS FILTER Enquire To Order
Photo Part No Description Price (each) Stock
67001100 DEHYDRATOR FILTER MOUNTING BRACKET Enquire To Order
Photo Part No Description Price (each) Stock
10902424 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
127494 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
12643724 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
67444300 TUBE FASTENING BRACKET Enquire To Order
Photo Part No Description Price (each) Stock
10977824 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
13506704 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
10441590 BRACKET WITH SHEATH Enquire To Order
Photo Part No Description Price (each) Stock
319201 FUEL FILLER PIPE ASSEMBLY Enquire To Order
Photo Part No Description Price (each) Stock
10977824 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
127493 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
231625 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
11193274 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
68392000 O-RING Enquire To Order
Photo Part No Description Price (each) Stock
68392100 O-RING Enquire To Order
Photo Part No Description Price (each) Stock
66309600 O-RING Enquire To Order
Photo Part No Description Price (each) Stock
68392700 O-RING Enquire To Order
Photo Part No Description Price (each) Stock
66309700 O-RING Enquire To Order
Photo Part No Description Price (each) Stock
66309400 O-RING Enquire To Order
Photo Part No Description Price (each) Stock
66309500 O-RING Enquire To Order
Photo Part No Description Price (each) Stock
66309800 O-RING Enquire To Order
Photo Part No Description Price (each) Stock
68392800 O-RING Enquire To Order
Photo Part No Description Price (each) Stock
139512 BRACKET WITH SHEATH Enquire To Order
Photo Part No Description Price (each) Stock
10902424 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
127494 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
65708600 SPACER BUSHING Enquire To Order
Photo Part No Description Price (each) Stock
145543 CLIP Enquire To Order
Photo Part No Description Price (each) Stock
67851300 BRACKET FASTENER PLATE Enquire To Order
Photo Part No Description Price (each) Stock
67851200 REAR PIPE RETAINER BRACKET Enquire To Order
Photo Part No Description Price (each) Stock
67851100 FRONT PIPE RETAINER BRACKET Enquire To Order
Photo Part No Description Price (each) Stock
14059290 FLANGED NUT M6 Enquire To Order
Photo Part No Description Price (each) Stock
10519424 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
10902424 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
127494 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
12643724 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
67851600 TUBE FASTENING BRACKET Enquire To Order
Photo Part No Description Price (each) Stock
61712500 BRACKET WITH SHEATH Enquire To Order
138478 BRACKET WITH SHEATH Enquire To Order
183642 BRACKET WITH SHEATH Enquire To Order
Photo Part No Description Price (each) Stock
10902424 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
127494 WASHER Enquire To Order
View All

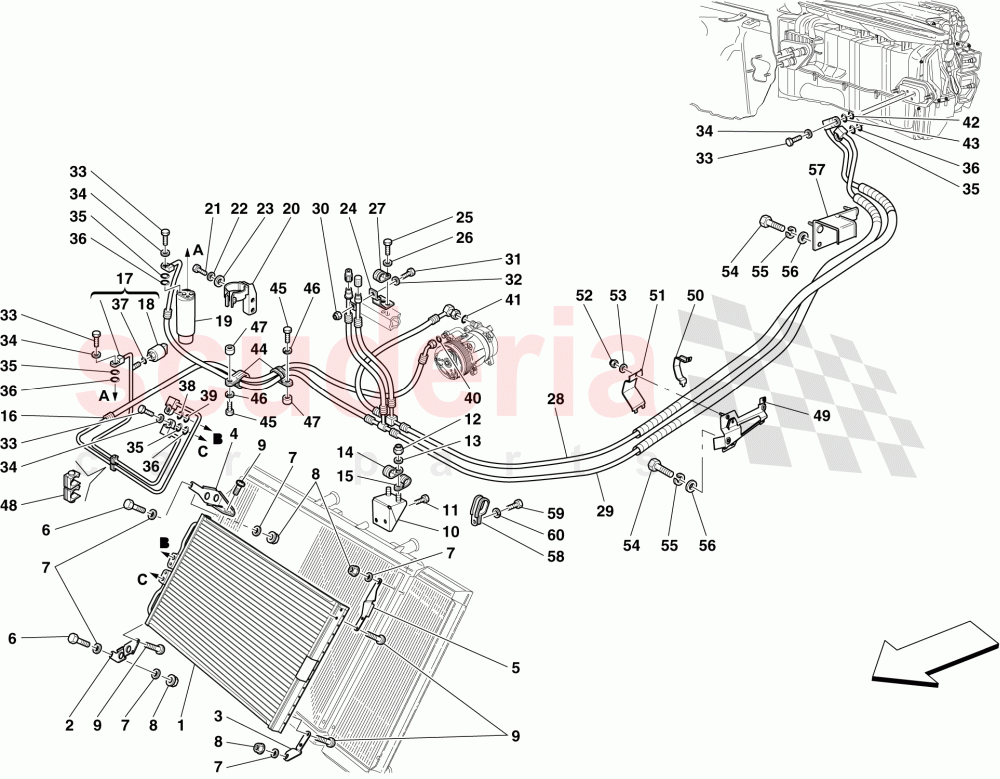

AC SYSTEM - FREON PIPES of Ferrari Ferrari 612 Scaglietti Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 199479
AC CONDENSER 		- 1 Enquire
2 199486
RH LOWER BRACKET 		- 1 Enquire
3 199488
LH LOWER BRACKET 		- 1 Enquire
4 199485
RH UPPER BRACKET 		- 1 Enquire
5 199487
LH UPPER BRACKET 		- 1 Enquire
6 10977824
SCREW 		- 2 Enquire
7 12637824
WASHER 		- 6 Enquire
8 14084111
NUT 		- 4 Enquire
9 165136
SCREW 		- 8 Enquire
10 67851700
TUBE FASTENING BRACKET 		- 1 Enquire
11 10902424
SCREW 		- 2 Enquire
12 319201
FUEL FILLER PIPE ASSEMBLY 		- 2 Enquire
13 12637824
WASHER 		- 2 Enquire
14 10441290
BRACKET WITH SHEATH 		- 2 Enquire
15 10441590
BRACKET WITH SHEATH 		- 2 Enquire
17 66982800
GAS PIPE FROM CONDENSER TO FILTER 		- 1 Enquire
18 66374400
PRESSURE SWITCH 		- 1 Enquire
19 67085100
GAS FILTER 		- 1 Enquire
20 67001100
DEHYDRATOR FILTER MOUNTING BRACKET 		- 1 Enquire
21 10902424
SCREW 		- 3 Enquire
22 127494
WASHER 		- 3 Enquire
23 12643724
WASHER 		- 3 Enquire
24 67444300
TUBE FASTENING BRACKET 		- 1 Enquire
25 10977824
SCREW 		- 2 Enquire
26 13506704
WASHER 		- 2 Enquire
27 10441590
BRACKET WITH SHEATH 		- 1 Enquire
30 319201
FUEL FILLER PIPE ASSEMBLY 		- 1 Enquire
31 10977824
SCREW 		- 1 Enquire
32 127493
WASHER 		- 1 Enquire
33 231625
SCREW 		- 4 Enquire
34 11193274
WASHER 		- 4 Enquire
35 68392000
O-RING 		- 4 Enquire
36 68392100
O-RING 		- 4 Enquire
37 66309600
O-RING 		- 1 Enquire
38 68392700
O-RING 		- 1 Enquire
39 66309700
O-RING 		- 1 Enquire
40 66309400
O-RING 		- 1 Enquire
41 66309500
O-RING 		- 1 Enquire
42 66309800
O-RING 		- 1 Enquire
43 68392800
O-RING 		- 1 Enquire
44 139512
BRACKET WITH SHEATH 		- 2 Enquire
45 10902424
SCREW 		- 2 Enquire
46 127494
WASHER 		- 2 Enquire
47 65708600
SPACER BUSHING 		- 2 Enquire
48 145543
CLIP 		- 2 Enquire
49 67851300
BRACKET FASTENER PLATE 		- 1 Enquire
50 67851200
REAR PIPE RETAINER BRACKET 		- 1 Enquire
51 67851100
FRONT PIPE RETAINER BRACKET 		- 1 Enquire
52 14059290
FLANGED NUT M6 		- 1 Enquire
53 10519424
WASHER 		- 1 Enquire
54 10902424
SCREW 		- 5 Enquire
55 127494
WASHER 		- 5 Enquire
56 12643724
WASHER 		- 5 Enquire
57 67851600
TUBE FASTENING BRACKET 		- 1 Enquire
58 61712500
BRACKET WITH SHEATH
Replaced by 138478 and 183642; No longer supplied 		- 2 Enquire
58 138478
BRACKET WITH SHEATH 		- 1 Enquire
58 183642
BRACKET WITH SHEATH 		- 1 Enquire
59 10902424
SCREW 		- 2 Enquire
60 127494
WASHER 		- 2 Enquire
