Name: Steering box and linkage
Rating: 4.3 (1 reviews)

Find Your Part

Steering box and linkage of Ferrari Ferrari 512 TR

View All

Ferrari 512 TR - Steering box and linkage

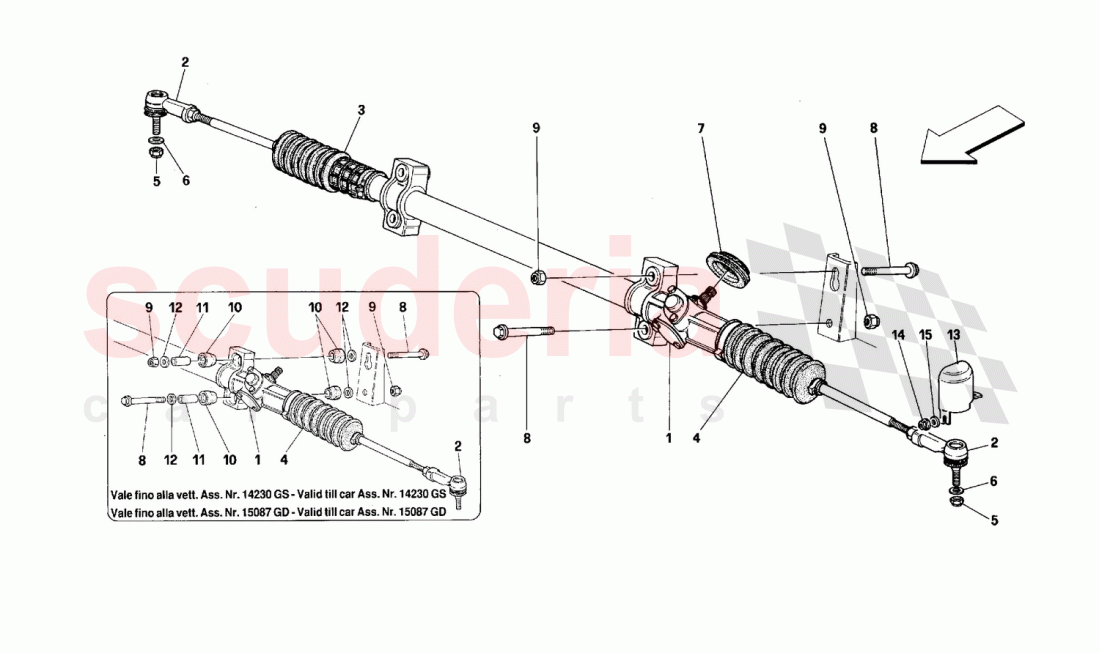

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	155611	Steering box -Valid till	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	161128	Ball joint with nut	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	131650	PASSENGER SIDE RUBBER BOOT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	139408	DRIVER SIDE RUBBER BOOT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	134287	Nut - inch thread	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	122238	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	149731	RUBBER BOOT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	16044434	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	104030	NYLOC NUT M8 X 1.25 X 9.5	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	135139	Buffer	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	108294	Spacer pipe	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	116413	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	150879	L.H. BALL JOINT PROTECTION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14058319	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10730014	WASHER	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	150878	R.H. BALL JOINT PROTECTION	150878 R.H. BALL JOINT PROTECTION	-	1	Enquire
-	175701	SCREW	175701 SCREW Valid for steering box / 155611 and 155612	-	4	Enquire
-	149807	NUT	149807 NUT	-	2	Enquire
-	155611	Steering box -Valid till	155611 Steering box -Valid till Ass. Nr. 14231 / Not for GD	-	1	Enquire
-	150345	Steering box -Valid till	150345 Steering box -Valid till Ass. Nr. 15087 / Valid for GD	-	1	Enquire
-	155612	Steering box -Valid from	155612 Steering box -Valid from Ass. Nr. 15088 / Valid for GD	-	1	Enquire
1	155611	Steering box -Valid till	155611 Steering box -Valid till Ass. Nr. 14230 / Not for GD / Not as spare part now / Replaced by 155611	-	1	Enquire
2	161128	Ball joint with nut	161128 Ball joint with nut	-	2	Enquire
3	131650	PASSENGER SIDE RUBBER BOOT	131650 PASSENGER SIDE RUBBER BOOT	-	1	Enquire
4	139408	DRIVER SIDE RUBBER BOOT	139408 DRIVER SIDE RUBBER BOOT	-	1	Enquire
5	134287	Nut - inch thread	134287 Nut - inch thread	-	2	Enquire
6	122238	WASHER	122238 WASHER	-	2	Enquire
7	149731	RUBBER BOOT	149731 RUBBER BOOT	-	1	Enquire
8	16044434	SCREW	16044434 SCREW Valid for steering box / 150066 and 150345	-	4	Enquire
9	104030	NYLOC NUT M8 X 1.25 X 9.5	104030 NYLOC NUT M8 X 1.25 X 9.5	-	4	Enquire
10	135139	Buffer	135139 Buffer	-	8	Enquire
11	108294	Spacer pipe	108294 Spacer pipe	-	4	Enquire
12	116413	WASHER	116413 WASHER	-	8	Enquire
13	150879	L.H. BALL JOINT PROTECTION	150879 L.H. BALL JOINT PROTECTION	-	1	Enquire
14	14058319	NUT	14058319 NUT	-	4	Enquire
15	10730014	WASHER	10730014 WASHER	-	4	Enquire

Wheels

Steering column

Steering box and linkage

Haven't found what you're looking for?

Original Parts Tuning Parts Need help? Call us

View Cart / Checkout

Steering Box And Linkage

Ferrari 512 TR

Ferrari 512 TR - Steering box and linkage
