Rear brakes calipers of Ferrari Ferrari 512 TR

View All

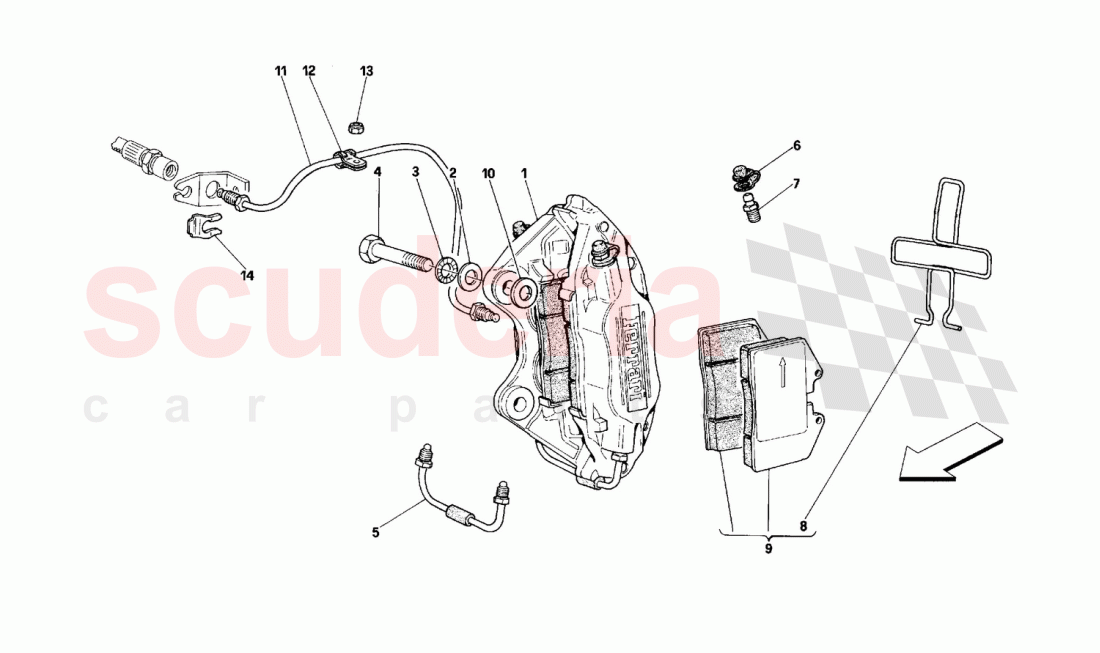

Ferrari 512 TR - Rear brakes calipers

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	146652	Right rear caliper unit with pads (TEVES)	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	84653800	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10615874	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	174214	BOLT M12 X 1.25 X 40	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	147134	FRONT CONNECTION PIPE (CALIPERS TEVES)	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	147136	BOOT (CALIPERS TEVES)	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	147135	UNIONWITH EXHAUST VALVE (CALIPERS TEVES)	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	147137	SPRING (CALIPERS TEVES)	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	70000767	Set of rear pads with spring (TEVES)	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	156260	Washer thickness mm. 0,2	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	147982	Pipe from hose to RH rear caliper	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10440890	BRACKET WITH SHEATH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	116374	CLIP	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	147983	Pipe from hose to LH rear caliper	147983 Pipe from hose to LH rear caliper L.H. rear caliper	-	1	Enquire
-	156263	WASHER Th. mm. 0,6 -As an alternative-	156263 WASHER Th. mm. 0,6 -As an alternative- Possible mounting	-	-	Enquire
-	156264	WASHER Th. mm. 0,7 -As an alternative-	156264 WASHER Th. mm. 0,7 -As an alternative- Possible mounting	-	-	Enquire
-	156265	WASHER Th. mm. 0,8 -As an alternative-	156265 WASHER Th. mm. 0,8 -As an alternative- Possible mounting	-	-	Enquire
-	156266	WASHER Th. mm. 1,0 -As an alternative-	156266 WASHER Th. mm. 1,0 -As an alternative- Possible mounting	-	-	Enquire
-	70000824	Set of rear pads with spring (BREMBO)	70000824 Set of rear pads with spring (BREMBO) with spring (BREMBO)	-	1	Enquire
-	156261	WASHER Th. mm. 0,3 -As an alternative-	156261 WASHER Th. mm. 0,3 -As an alternative- Possible mounting	-	-	Enquire
-	156262	WASHER Th. mm. 0,5 -As an alternative-	156262 WASHER Th. mm. 0,5 -As an alternative- Possible mounting	-	-	Enquire
-	151903	Right rear caliper unit with pads (BREMBO)	151903 Right rear caliper unit with pads (BREMBO) with pads (BREMBO)	-	1	Enquire
-	146653	Left rear caliper unit with pads (TEVES)	146653 Left rear caliper unit with pads (TEVES) with pads (TEVES)	-	1	Enquire
-	151904	Left rear caliper unit with pads (BREMBO)	151904 Left rear caliper unit with pads (BREMBO) with pads (BREMBO)	-	1	Enquire
1	146652	Right rear caliper unit with pads (TEVES)	146652 Right rear caliper unit with pads (TEVES) with pads (TEVES)	-	1	Enquire
2	84653800	WASHER	84653800 WASHER	-	4	Enquire
3	10615874	WASHER	10615874 WASHER	-	4	Enquire
4	174214	BOLT M12 X 1.25 X 40	174214 BOLT M12 X 1.25 X 40	-	4	Enquire
5	147134	FRONT CONNECTION PIPE (CALIPERS TEVES)	147134 FRONT CONNECTION PIPE (CALIPERS TEVES)	-	2	Enquire
6	147136	BOOT (CALIPERS TEVES)	147136 BOOT (CALIPERS TEVES)	-	2	Enquire
7	147135	UNIONWITH EXHAUST VALVE (CALIPERS TEVES)	147135 UNIONWITH EXHAUST VALVE (CALIPERS TEVES)	-	2	Enquire
8	147137	SPRING (CALIPERS TEVES)	147137 SPRING (CALIPERS TEVES)	-	2	Enquire
9	70000767	Set of rear pads with spring (TEVES)	70000767 Set of rear pads with spring (TEVES) with spring (TEVES)	-	1	Enquire
10	156260	Washer thickness mm. 0,2	156260 Washer thickness mm. 0,2 Possible mounting	-	-	Enquire
11	147982	Pipe from hose to RH rear caliper	147982 Pipe from hose to RH rear caliper R.H. rear caliper	-	1	Enquire
12	10440890	BRACKET WITH SHEATH	10440890 BRACKET WITH SHEATH	-	2	Enquire
13	14059290	FLANGED NUT M6	14059290 FLANGED NUT M6	-	2	Enquire
14	116374	CLIP	116374 CLIP	-	4	Enquire
