ANTI-THEFT SYSTEM of Ferrari Ferrari 488 Pista USA

View All

Ferrari 488 Pista USA - ANTI-THEFT SYSTEM

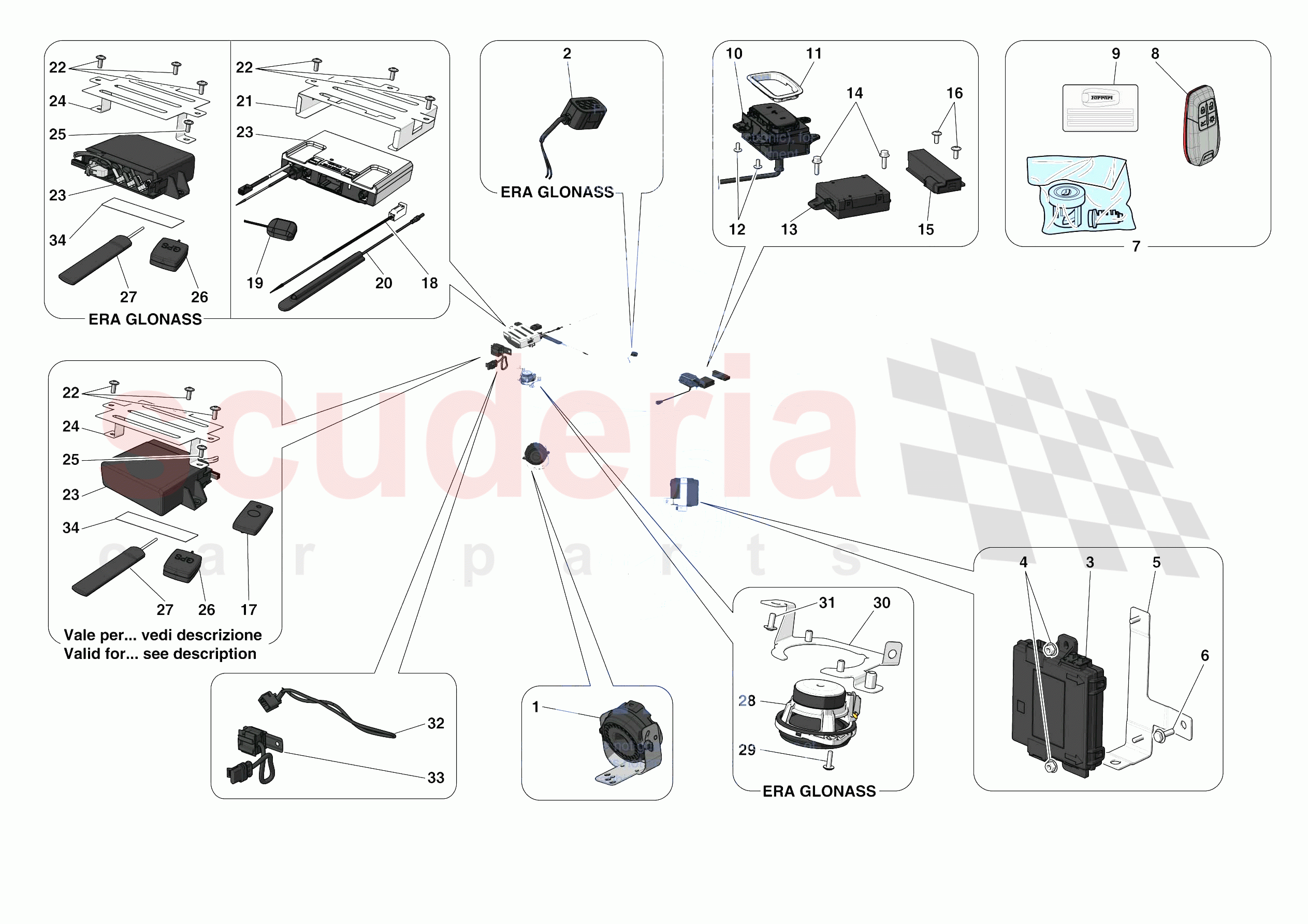

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	294965	ANTI-THEFT SIREN UNIT	Enquire	To Order
	315686	ANTI-THEFT SYSTEM SIREN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	333337	GSM MICROPHONE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	328097	PASSIVE START ECU	Enquire	To Order
	328098	PASSIVE START ECU	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14040614	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	315027	PASSIVE START ECU MOUNTING BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11625824	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	328976	KEY AND BLOCK KIT	Enquire	To Order
	329045	KEY AND BLOCK KIT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	328403	KEYLESS KEY KIT	Enquire	To Order
	328404	KEYLESS KEY KIT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6326163	SECRET CARD LABEL FOR KEYS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	343201	GLONASS SWITCH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	792528	ERA GLONASS SWITCH SURROUND	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	795930	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	293416	ANTI-LIFT SENSOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	16285014	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	310778	PASSIVE START ANTENNA	Enquire	To Order
	322184	PASSIVE START ANTENNA	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	85833700	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	824397	DRIVER CARD	Enquire	To Order
	307604	DRIVER CARD FOR NAVTRACK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	307605	ADR10 ANTI-THEFT SYSTEM ANTENNA	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	278513	GPS ANTENNA	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	278514	GSM ANTENNA	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	315029	SATELLITE ALARM SYSTEM ECU MOUNTING BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	85833700	SCREW	Enquire	To Order
	85833700	SCREW	Enquire	To Order
	85833700	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	330644	GLONASS ECU	Enquire	To Order
	871448	GLONASS ECU	Enquire	To Order
	316923	ADR10 SATELLITE ALARM SYSTEM ECU	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	334966	ERA GLONASS ECU BRACKET	Enquire	To Order
	334966	ERA GLONASS ECU BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	85833700	SCREW	Enquire	To Order
	85833700	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	332823	GLONASS GPS ANTENNA	Enquire	To Order
	332823	GLONASS GPS ANTENNA	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	332824	GLONASS GSM ANTENNA	Enquire	To Order
	332824	GLONASS GSM ANTENNA	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	332825	GLONASS SPEAKER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14302921	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	88914500	SPEAKER MOUNTING BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	85833700	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	824398	RF ANTENNA	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	982069	START DISABLE WIRING HARNESS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	84801200	ADHESIVE STRIP	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
0001	294965	ANTI-THEFT SIREN UNIT	294965 ANTI-THEFT SIREN UNIT Not for Israel	-	1	Enquire
0001	315686	ANTI-THEFT SYSTEM SIREN	315686 ANTI-THEFT SYSTEM SIREN Applicable for Israel	-	1	Enquire
0002	333337	GSM MICROPHONE	333337 GSM MICROPHONE Applicable for ERA GLONASS system - Applicable for Russia, Armenia, Belarus, Kazakhstan and Kyrgyzstan markets	-	1	Enquire
0003	328097	PASSIVE START ECU	328097 PASSIVE START ECU	-	1	Enquire
0003	328098	PASSIVE START ECU	328098 PASSIVE START ECU	-	1	Enquire
0004	14040614	NUT	14040614 NUT	-	2	Enquire
0005	315027	PASSIVE START ECU MOUNTING BRACKET	315027 PASSIVE START ECU MOUNTING BRACKET	-	1	Enquire
0006	11625824	SCREW	11625824 SCREW M6 X 18	-	2	Enquire
0007	328976	KEY AND BLOCK KIT	328976 KEY AND BLOCK KIT Contains 2 keys, 2 barrels, 1 secret card and 1 keyless key	-	1	Enquire
0007	329045	KEY AND BLOCK KIT	329045 KEY AND BLOCK KIT Contains 2 keys, 2 barrels, 1 secret card and 1 keyless key	-	1	Enquire
0008	328403	KEYLESS KEY KIT	328403 KEYLESS KEY KIT	-	1	Enquire
0008	328404	KEYLESS KEY KIT	328404 KEYLESS KEY KIT	-	1	Enquire
0009	6326163	SECRET CARD LABEL FOR KEYS	6326163 SECRET CARD LABEL FOR KEYS	-	1	Enquire
0010	343201	GLONASS SWITCH	343201 GLONASS SWITCH Applicable for ERA GLONASS system - Applicable for Russia, Armenia, Belarus, Kazakhstan and Kyrgyzstan markets	-	1	Enquire
0011	792528	ERA GLONASS SWITCH SURROUND	792528 ERA GLONASS SWITCH SURROUND Applicable for ERA GLONASS system - Applicable for Russia, Armenia, Belarus, Kazakhstan and Kyrgyzstan markets	-	1	Enquire
0012	795930	SCREW	795930 SCREW M4 X 8	-	4	Enquire
0013	293416	ANTI-LIFT SENSOR	293416 ANTI-LIFT SENSOR	-	1	Enquire
0014	16285014	SCREW	16285014 SCREW M5 X 16	-	2	Enquire
0015	310778	PASSIVE START ANTENNA	310778 PASSIVE START ANTENNA	-	3	Enquire
0015	322184	PASSIVE START ANTENNA	322184 PASSIVE START ANTENNA	-	1	Enquire
0016	85833700	SCREW	85833700 SCREW Applicable for ERA GLONASS system - Applicable for Russia, Armenia, Belarus, Kazakhstan and Kyrgyzstan markets; M5 X 14	-	1	Enquire
0017	824397	DRIVER CARD	824397 DRIVER CARD Version with SVR satellite alarm system with card - Request ASM authorisation	-	1	Enquire
0017	307604	DRIVER CARD FOR NAVTRACK	307604 DRIVER CARD FOR NAVTRACK Version with satellite alarm system with card - Request ASM authorisation	-	1	Enquire
0018	307605	ADR10 ANTI-THEFT SYSTEM ANTENNA	307605 ADR10 ANTI-THEFT SYSTEM ANTENNA	-	1	Enquire
0019	278513	GPS ANTENNA	278513 GPS ANTENNA SM76 MINI GPS	-	1	Enquire
0020	278514	GSM ANTENNA	278514 GSM ANTENNA PHANTOM 918	-	1	Enquire
0021	315029	SATELLITE ALARM SYSTEM ECU MOUNTING BRACKET	315029 SATELLITE ALARM SYSTEM ECU MOUNTING BRACKET	-	1	Enquire
0022	85833700	SCREW	85833700 SCREW M5 X 8	-	3	Enquire
0022	85833700	SCREW	85833700 SCREW M5 X 14	-	3	Enquire
0022	85833700	SCREW	85833700 SCREW M5 X 14	-	3	Enquire
0023	330644	GLONASS ECU	330644 GLONASS ECU Applicable for ERA GLONASS system - Applicable for Russia, Armenia, Belarus, Kazakhstan and Kyrgyzstan markets; No longer supplied - Replaced by 871448; Unprogrammed	-	1	Enquire
0023	871448	GLONASS ECU	871448 GLONASS ECU Applicable for ERA GLONASS system - Applicable for Russia, Armenia, Belarus, Kazakhstan and Kyrgyzstan markets; Programmed	-	1	Enquire
0023	316923	ADR10 SATELLITE ALARM SYSTEM ECU	316923 ADR10 SATELLITE ALARM SYSTEM ECU	-	1	Enquire
0023	824396	TCU ECALL / SVR	824396 TCU ECALL / SVR Version with SVR satellite alarm system with or without card	-	1	Enquire
0024	334966	ERA GLONASS ECU BRACKET	334966 ERA GLONASS ECU BRACKET Version with SVR satellite alarm system with or without card	-	1	Enquire
0024	334966	ERA GLONASS ECU BRACKET	334966 ERA GLONASS ECU BRACKET	-	1	Enquire
0025	85833700	SCREW	85833700 SCREW M5 X 8	-	2	Enquire
0025	85833700	SCREW	85833700 SCREW M5 X 8	-	2	Enquire
0026	332823	GLONASS GPS ANTENNA	332823 GLONASS GPS ANTENNA Version with SVR satellite alarm system with or without card	-	1	Enquire
0026	332823	GLONASS GPS ANTENNA	332823 GLONASS GPS ANTENNA	-	1	Enquire
0027	332824	GLONASS GSM ANTENNA	332824 GLONASS GSM ANTENNA Version with SVR satellite alarm system with or without card	-	1	Enquire
0027	332824	GLONASS GSM ANTENNA	332824 GLONASS GSM ANTENNA	-	1	Enquire
0028	332825	GLONASS SPEAKER	332825 GLONASS SPEAKER Applicable for ERA GLONASS system - Applicable for Russia, Armenia, Belarus, Kazakhstan and Kyrgyzstan markets	-	1	Enquire
0029	14302921	SCREW	14302921 SCREW M4 X 14	-	2	Enquire
0030	88914500	SPEAKER MOUNTING BRACKET	88914500 SPEAKER MOUNTING BRACKET Applicable for ERA GLONASS system - Applicable for Russia, Armenia, Belarus, Kazakhstan and Kyrgyzstan markets	-	1	Enquire
0031	85833700	SCREW	85833700 SCREW M5 X 14	-	1	Enquire
0032	824398	RF ANTENNA	824398 RF ANTENNA Version with satellite alarm system with card	-	1	Enquire
0033	982069	START DISABLE WIRING HARNESS	982069 START DISABLE WIRING HARNESS Version with SVR satellite alarm system with or without card	-	1	Enquire
0034	84801200	ADHESIVE STRIP	84801200 ADHESIVE STRIP	-	1	Enquire
